Massey Ferguson 500R Series Sprayers
The Massey Ferguson® 500R Series Sprayers deliver fast, efficient, and user-friendly application with the precision, operator comfort, and reliable field performance farmers need. Backed by more than 60 years of AGCO application experience, the Massey Ferguson sprayer lineup is engineered to help farmers cover more acres efficiently while giving them greater control through advanced precision ag technology.
Technology & Innovation
The Parallel Ag PA-500R Series offers a welcoming balance of technology paired with an intuitive layout so operators can easily take control of their spraying with confidence.

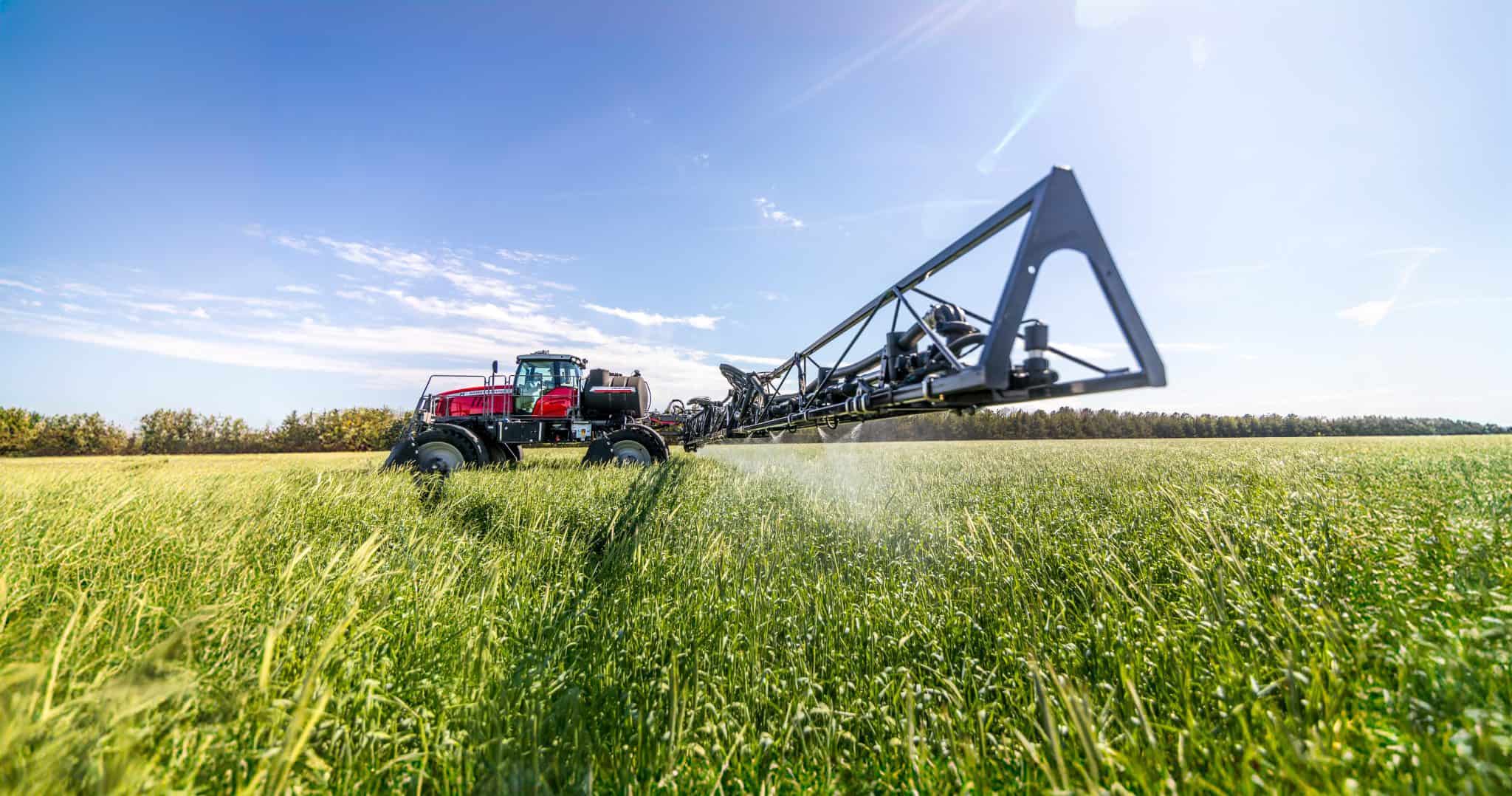

The LiquidLogic® system comes standard, delivering fast, efficient priming in under 50 seconds, with no wasted chemical.

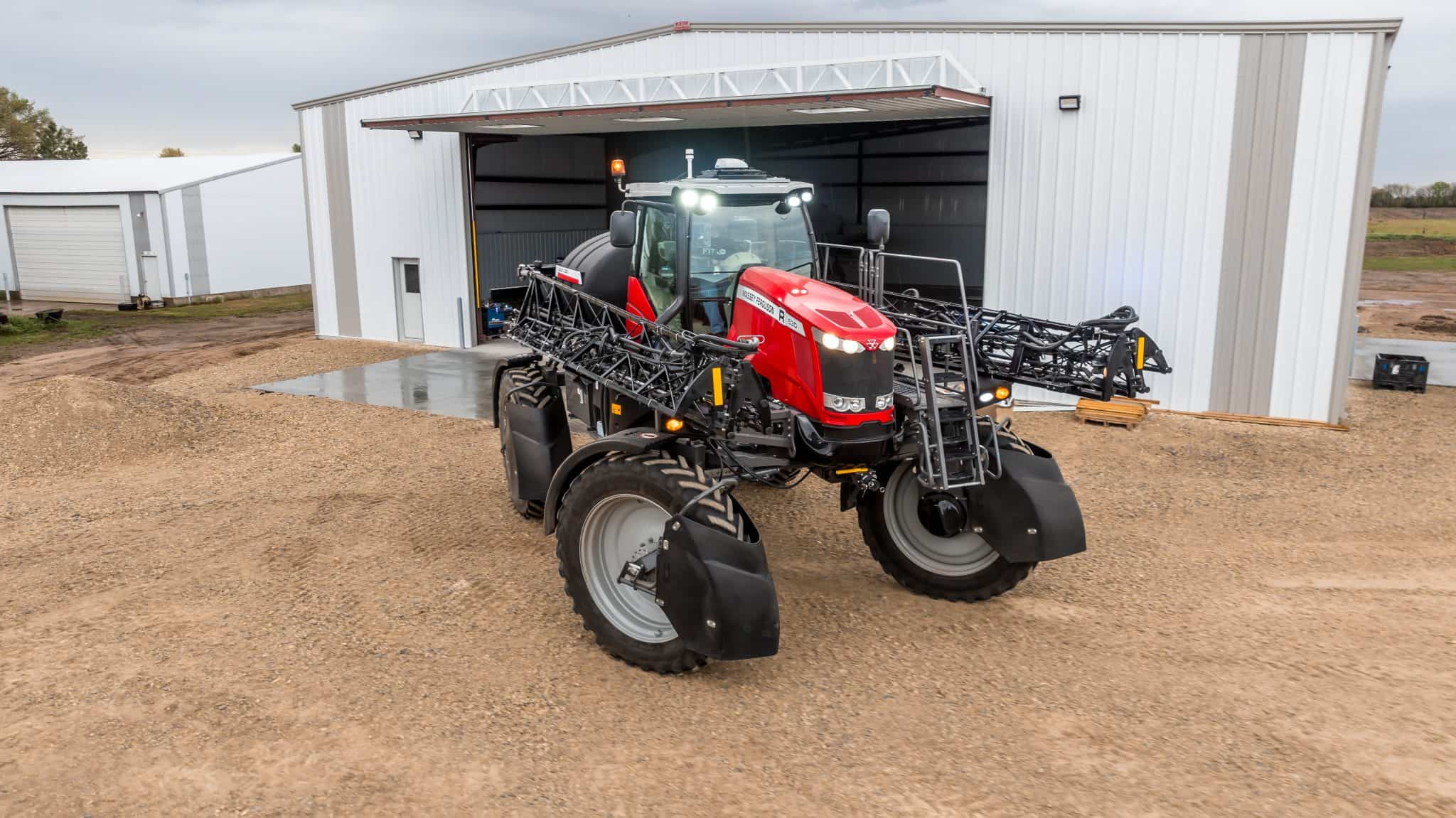

The tractor-style cab makes it easy to jump behind the wheel and get to work.
Easily accessed maintenance points, booms that require no lubrication and a “recirculate to tank” feature with no end-cap cleanouts mean the PA-500R Series provides a stress-free ownership experience.

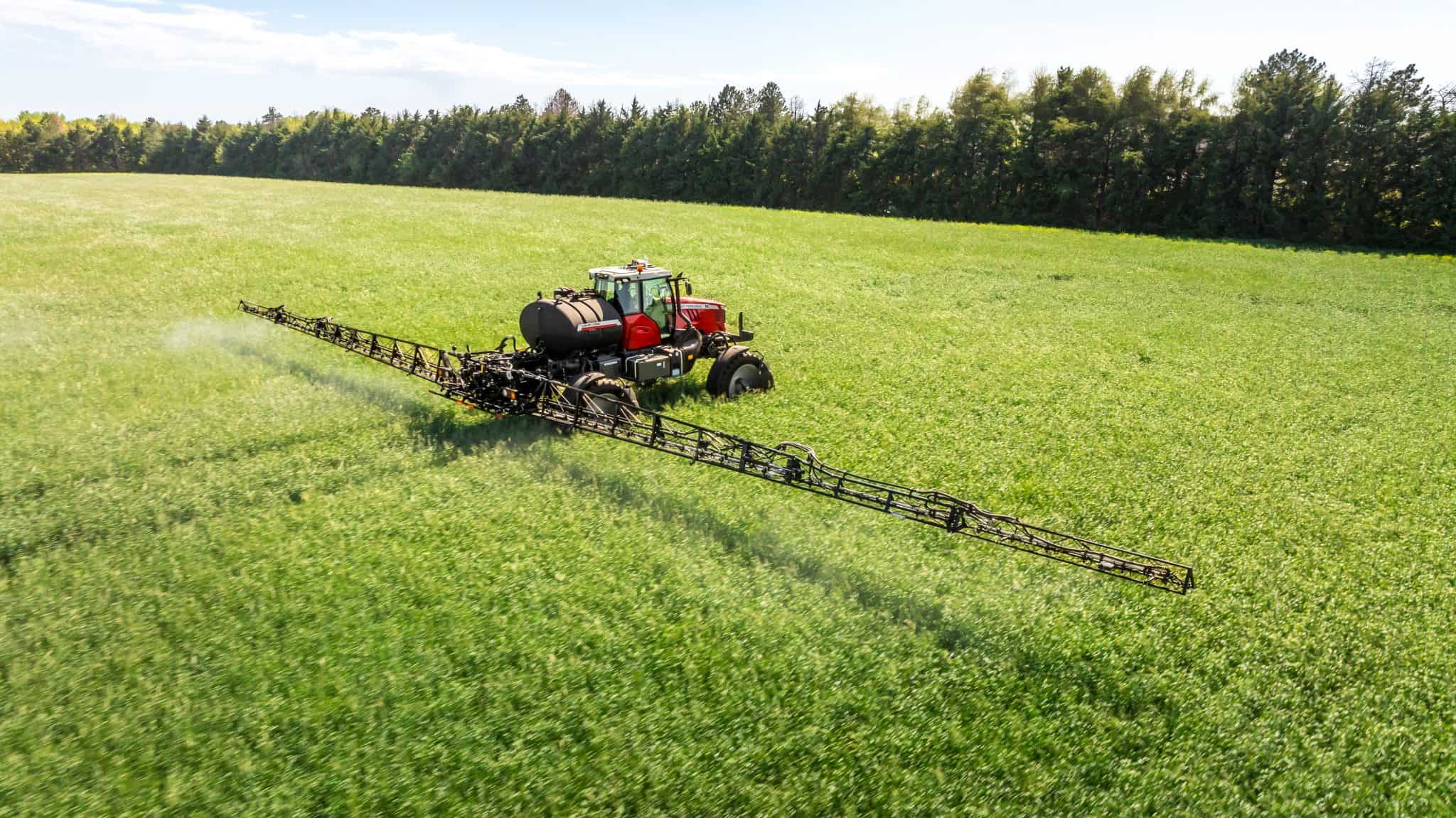

More power to the ground, standard. Standard smart all-wheel drive ensures you always have the traction you need to deliver consistent coverage.

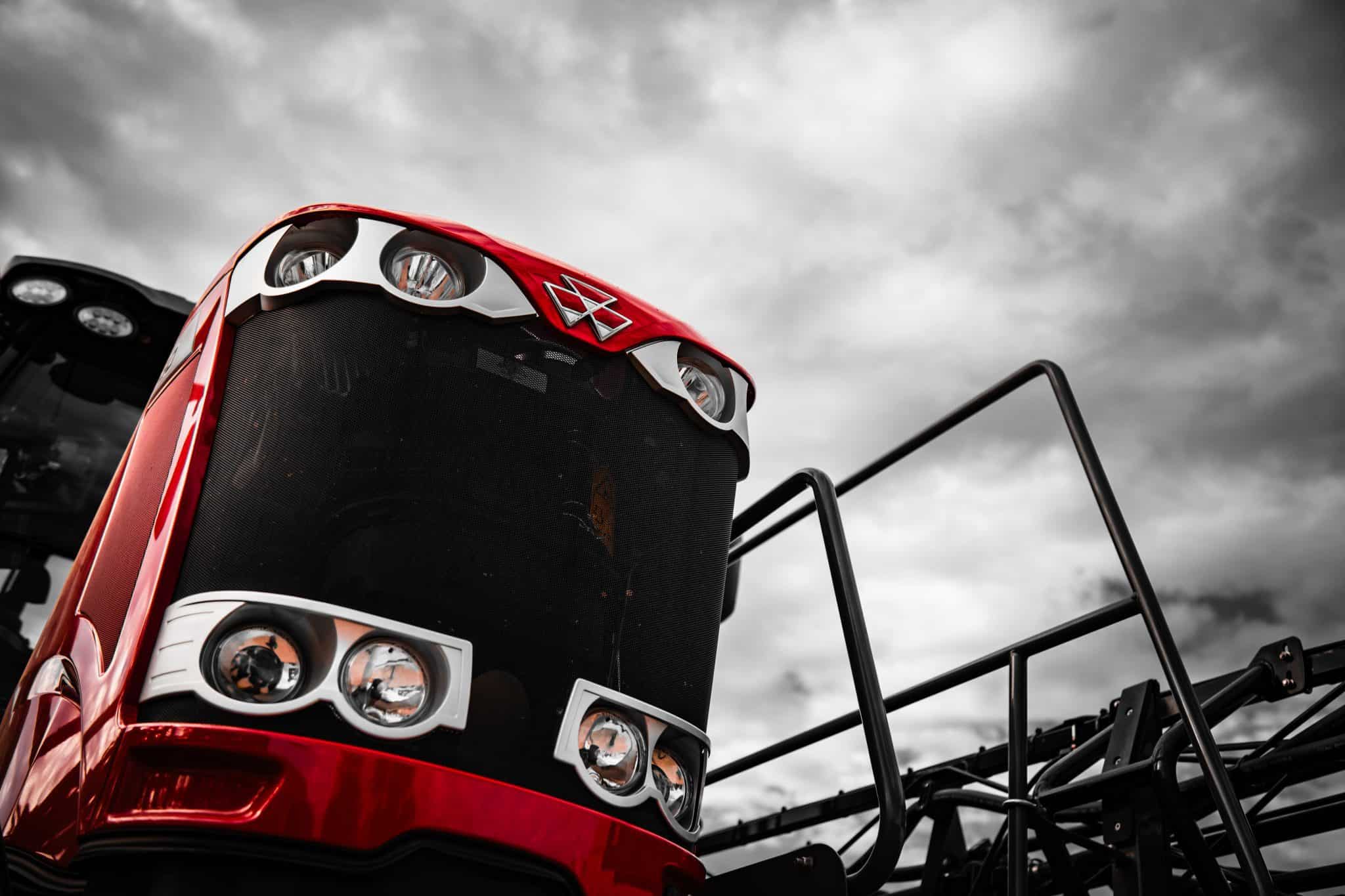

Experience some of the most dependable engines on the market, with the low-rpm torque needed for demanding conditions.

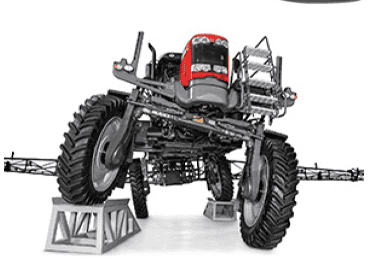

Flex is built right into the chassis of the PA-500R Series, enabling all four wheels of the machine to maintain ground contact even beyond full suspension travel.

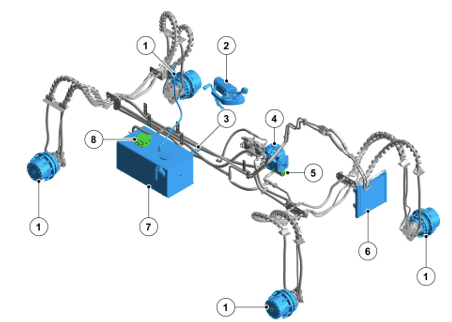

The smart all-wheel-drive system provides more power-to-ground transfer while maintaining product pump pressure at lower rpms, giving consistent coverage and greater fuel efficiency in a wider range of conditions.

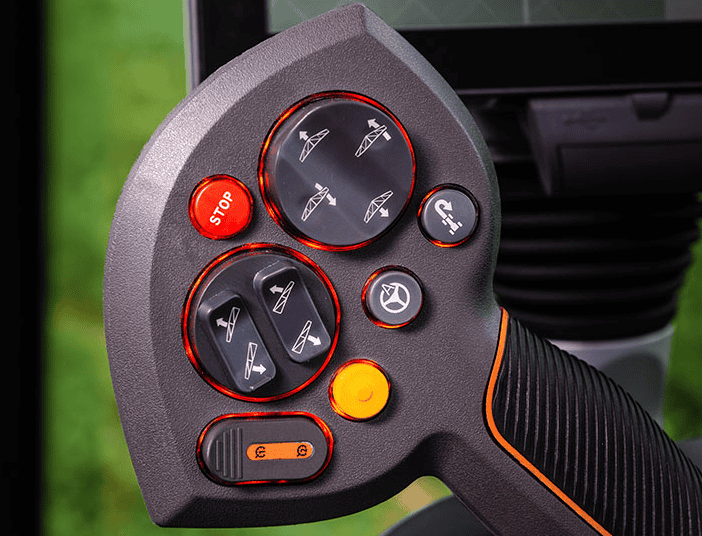

A roomy, ergonomic cab layout, similar to our award-winning PA S Series tractors, provides maximum comfort for long days of spraying.

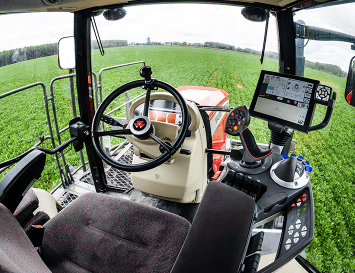

Near 360-degree visibility makes it easy to keep an eye on the tires and booms without craning or leaning.

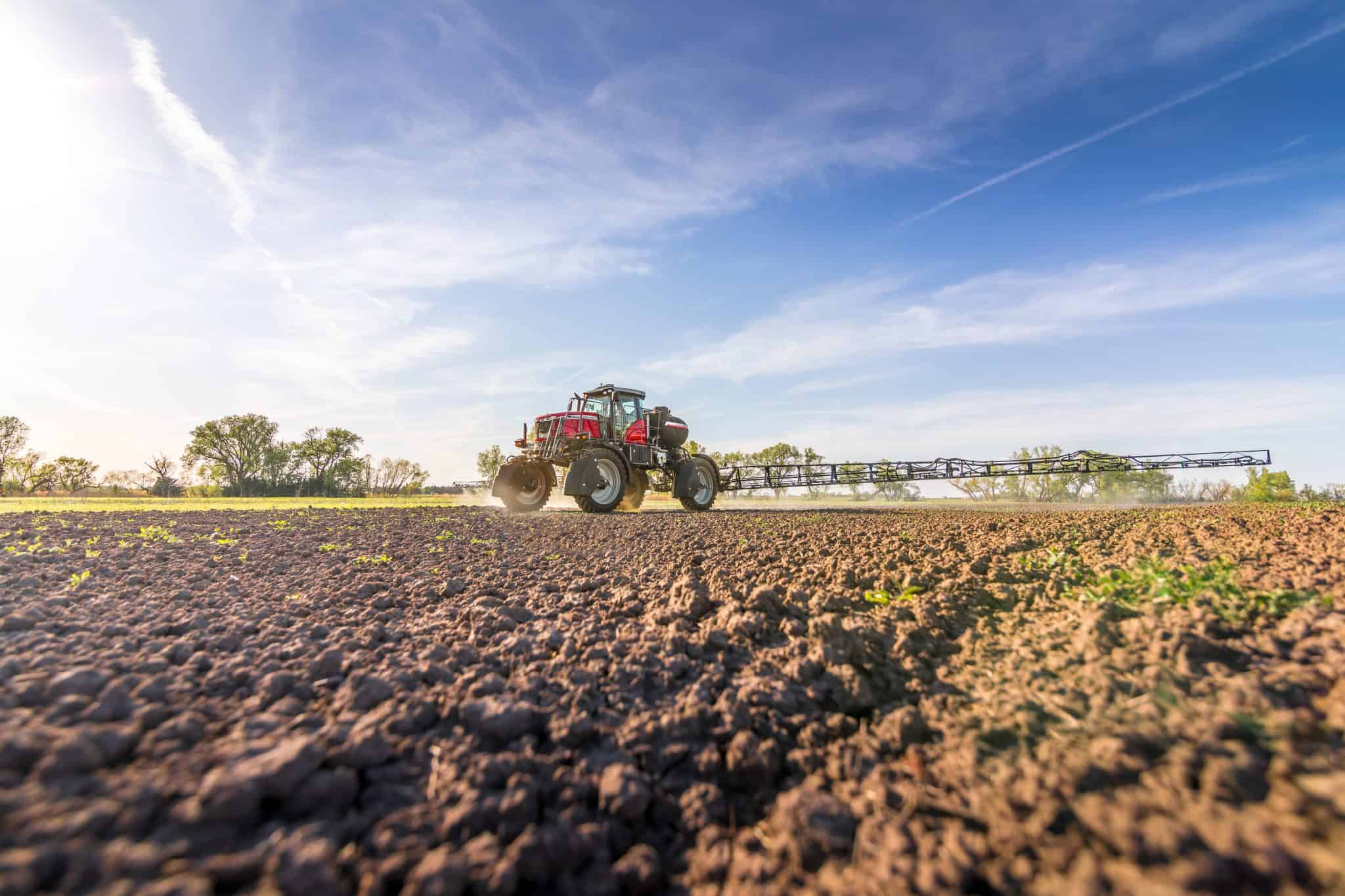

The cab of the PA-500R Series was designed to reduce vibration and noise experienced by the operator.

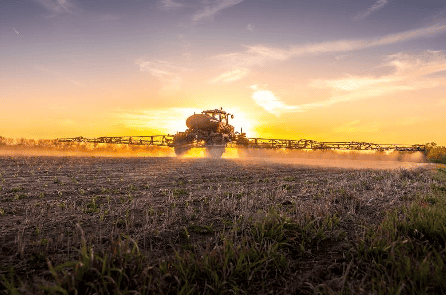

No more waiting on custom applicators. The PA-500R Series is the entry-level spraying solution that offers a new level of control over spraying.
Owning a sprayer offers unmatched flexibility to apply product at the best possible time, maximizing yields and reducing wasted product.
With a user-friendly, easy-to-operate design, and an attractive cost of ownership, operators can confidently spray when and where they need to, no questions asked.

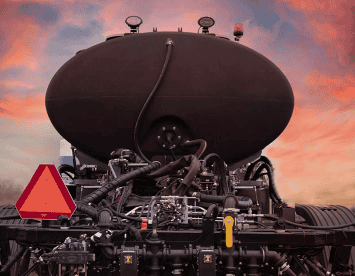

Available 740- or 860-gallon (max. capacity) tanks. Each equipped with a rotating rinse nozzle fed by a 92-gal. freshwater tank, a 10.5-gal. standalone hand-wash tank, adjustable agitation rate, and high- and low-level tank sensors.

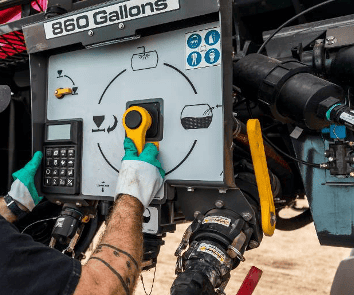

The reload station of the PA-500R Series is easy to understand and operate. It features a 2-inch and 3-inch camlock fill point, optional 150-gallon/minute reload pump, 7-gallon HyPro chemical eductor and an air connection for nozzle cleaning.

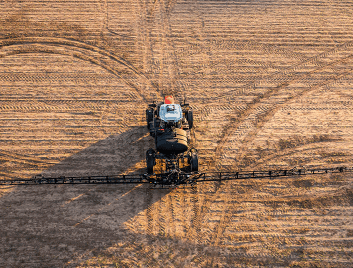

The PA-500R Series Sprayer arrives from the factory fitted with AgControl® and auto-steer with sub-meter accuracy. If at any point higher precision is required, it can be upgraded to RTK.
To monitor productivity, all jobs and spray data can be recorded on the terminal and easily stored onto a USB drive for record keeping and data analysis.
The PA-500R Series Sprayer is fitted with telemetry, offering the ability to track and monitor machines from your office, which provides insight into the machine’s operational efficiency and any potential breakdowns before they may occur.
Available Models
| Model | HP | Transmission | Auto-Steer | Telemetry | Tank Size (GAL @MAX CAPACITY) |
Boom Width (FT) |
Nozzle Spacing (IN) |
Sections |
| MF 525R | 212 | Single hydrostatic 130cc | Novatel sub-meter | Mid-Spec PAConnect® | 740 | 90, 100 | 20 | 36 |
| MF 530R | 235 | Single hydrostatic 130cc | Novatel sub-meter | Mid-Spec PAConnect® | 860 | 90, 100 | 20 | 36 |
Next Steps to Owning A Massey Ferguson
Explore the MF 500R Series in detail and see how it will work for you.
Get connected with your dealer to see how the MF 500R Sprayer fits into your operation.
Test and compare all aspects of the MF 500R Series sprayer before you purchase.
Authorized Dealer Network
Find a Parallel Ag
Dealership
Parallel Ag sells Massey Ferguson equipment at our AGCO dealership locations across five states. Our expert teams are ready to help you find the right machine for your operation, arrange a demo, or build a custom quote.
Oklahoma | Texas | Kansas | Missouri | Illinois
Find a Dealership
Financing
Ownership
Farming Technology
See It in Action
Watch the MF 500R
Series in the Field
See firsthand how the Massey Ferguson 500R Series performs where it matters most — in the field. From Smart AWD to LiquidLogic®, watch the technology that sets this sprayer apart from the competition.
Watch on YouTubePowertrain Advantage
Smart AWD — Built to Perform
The MF 500R’s Smart AWD system delivers more power, less fuel, and precise control that Apache’s 2-wheel drive simply can’t match.
Per Hour
Apache AS650
is 2WD Only
Flexible Chassis
Reduced Fuel Consumption
Smart AWD lets operators run the engine at lower speeds while maintaining peak performance — averaging just 3.8 gallons per hour.
Power on Demand
The system automatically adjusts engine speed to deliver power precisely when it’s needed, eliminating waste and reducing drivetrain wear.
Precise Ground Speed Control
Operators can set exact ground speeds for consistent application — no guessing required. Apache’s powershift requires manual gear matching.
Enhanced Drivetrain Durability
Smart AWD reduces shock load on the drivetrain, extending its lifespan and lowering long-term maintenance costs compared to driveshaft-based systems.
The Bottom Line
Why Choose Massey Ferguson?
Pound for pound, the MF 500R Series packs more standard features, better technology, and greater long-term ROI than the competition.
More Standard Features
Recirculation, boom cleanout, boom recovery, Smart AWD, and 36-section control all come standard on every MF 500R. Apache requires costly options to reach the same level.
MF AdvantageFaster, Cleaner Priming
LiquidLogic® primes in under 50 seconds with zero chemical waste. Faster cleanout means more time spraying and less time maintaining — a real-world productivity edge.
MF AdvantageSuperior Application Accuracy
36-section control reduces overlap by up to 98%, protecting inputs and maximizing ROI per acre. Apache’s 9-section system results in excessive overlap and wasted product.
MF AdvantageLate-Season Advantage
With 53″ of crop clearance on the 525R and 59″ on the 530R — versus Apache’s 48″ — MF operators can capitalize on late-season and rescue applications that competitors simply can’t make.
MF AdvantageFlexible Chassis — Better Ride
MF’s C-Channel flex frame allows up to 24″ of axle travel, keeping all four wheels on the ground. Apache’s rigid frame amplifies terrain impact, reducing ride quality and coverage consistency.
MF AdvantageLong-Term ROI
Lower fuel consumption, fewer maintenance points, standard features that competitors charge extra for, and a tractor-style cab that reduces operator fatigue — the MF 500R pays for itself over the life of ownership.
MF Advantage
