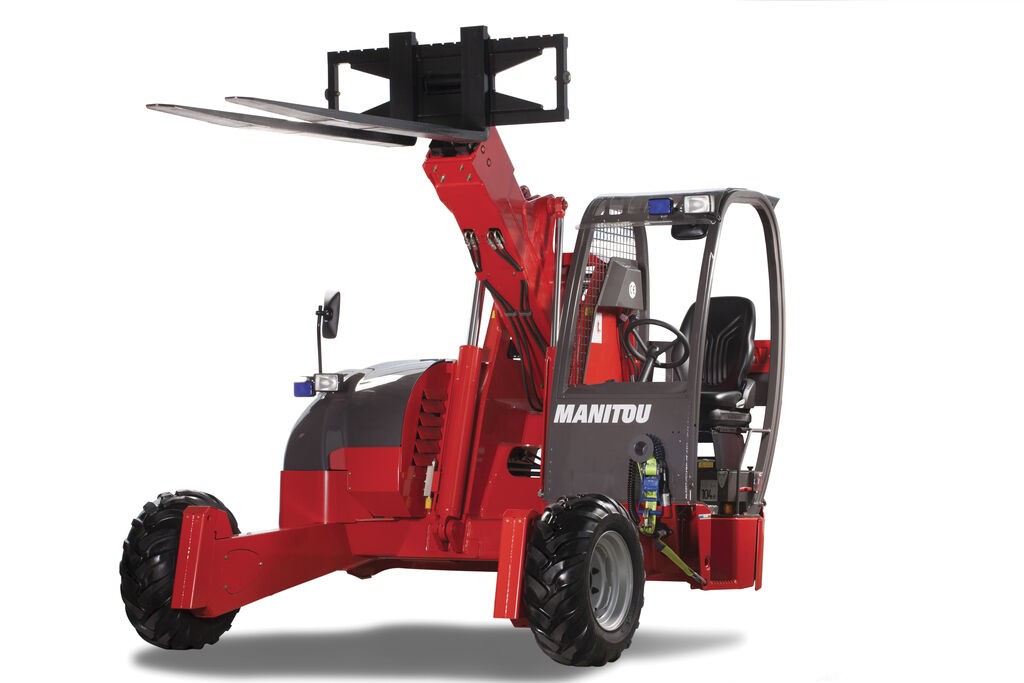

Manitou TMT 55 XT

Description

Are you after an all-terrain truck-mounted forklift to use to load and unload lorries? The TMT 55 XT was designed by Manitou to make life easier for logistics professionals especially for those times when a loading/unloading bay is not available. It’s particularly valuable in the construction sector, as you can deliver materials at the end of an unpaved path. Built to last, the TMT 55 XT features robust components for ease of upkeep. Payload is kept at a minimum for maximum cost effectiveness. Extremely stable, you can load and unload lorries from a single side, which is quite handy when you have to park alongside a wall or on the side of the road.

Condition New
Lifting height 11'3"
Lifting capacity 5500 lb
Max reach 4'1"
Max reach capacity 1650 lb
Drawbar pull 5000 lbf
Moving speed 7 mph
Length (up to the back of the fork) 9'4"
Width 8'5"
Height 8'0"
Weight (unladen) 5865 lb
Turning radius 9'0"
Ground clearance 0'10"
Energy Diesel
Engine brand Kubota
Engine type Tier IV Final
Engine manufacturer type D1803 CR
Power 37 KW
Number of cylinders 4
Total capacity 148.5 in3
Injection Direct
Cooling Water
Transmission type Hydrostatic
Pressure 245 bars
Hydraulic oil tank volume 12 gal
Standard tyres Pneumatic
Number of wheels (front/rear) 2/1
Number of drive wheels (front/rear) 2/1
Tyre dimensions (front) 31 x 15,5 - 15"
Tyre dimensions (rear) 31 x 15,5 - 15"
Free lift (standard mast, lowered) 4'11"

Features

  • Three-function FNR handling levers
  • Boom with integrated side shift
  • Battery Master Switch
  • Certified driver guard
  • Wide handle
  • Belt-linked engine cut-off
  • Anti-slip step
  • Right-hand side grill
  • 3 drive wheels with hydrostatic transmission
  • Outside right rear-view mirror
  • Rain Cap
  • Stabiliser on front wheel arms
  • Flashing Light
  • Imitation leather seat
  • Internal rear-view mirror
