Woods Equipment RW24

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

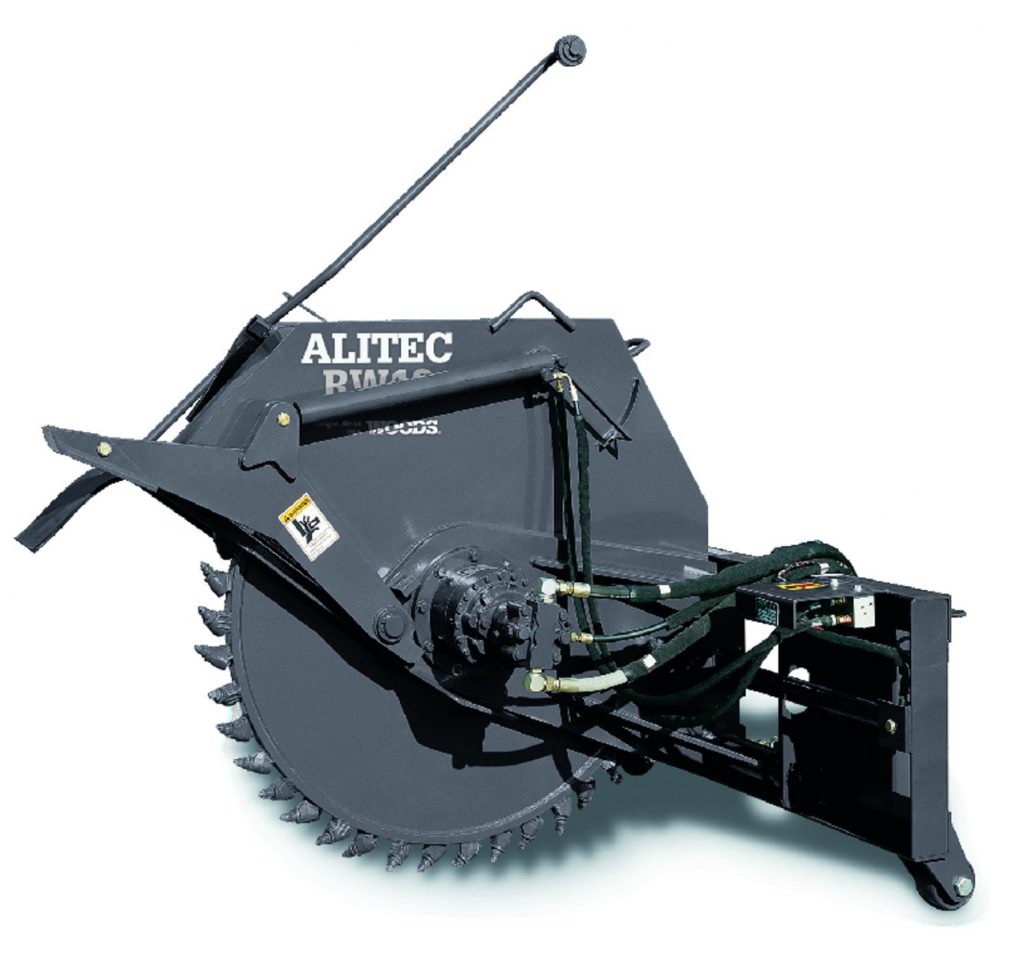

Alitec™ rock wheels replace higher priced concrete cutting machines
Quick attach mounting allows you to mount to all skid steers with high-flow hydraulics
Planetary reduction generates higher torque than competitors’ drive line packages – up to 4,800 lbs per foot

Condition

New

Working Width (in)	2.5 / 4.5
Approximate Operating Weight (lbs)	2,000 / 2,545
Number of Teeth	54 / 57
Hydraulic Flow (gpm)	30-47
Hydraulic Pressure Requirement (psi)	3,000-5,000
Cutting Depth (in)	24
Side Shift (in)	22
Maximum output torque at 3,000 psi (207 bar) (lbs-ft)	2, 879
Maximum output torque at 3,500 psi (241 bar) (lbs-ft)	3,358
Maximum output torque at 4,000 psi (276 bar) (lbs-ft)	3,838
Maximum output torque at 4,500 psi (310 bar) (lbs-ft)	4,318
Maximum output torque at 5,000 psi (345 bar) (lbs-ft)	4,798
Wheel speed at 30 gpm (rpm)	77

Features

24-inch cutting depth
Planetary drive for higher torque – up to 4,800 pounds-foot
Expanded versatility, replacing higher priced concrete cutting wheels
Quick attach mounting allows you to mount to all skid steers with high-flow hydraulics
