RBM1400

Anderson RBM1400

Description

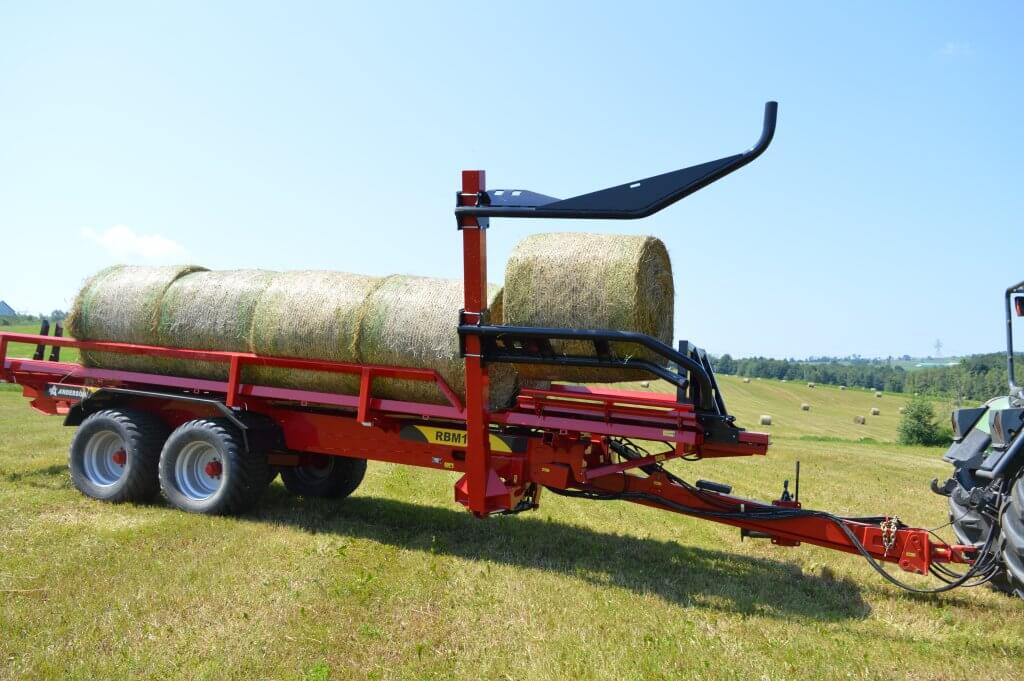

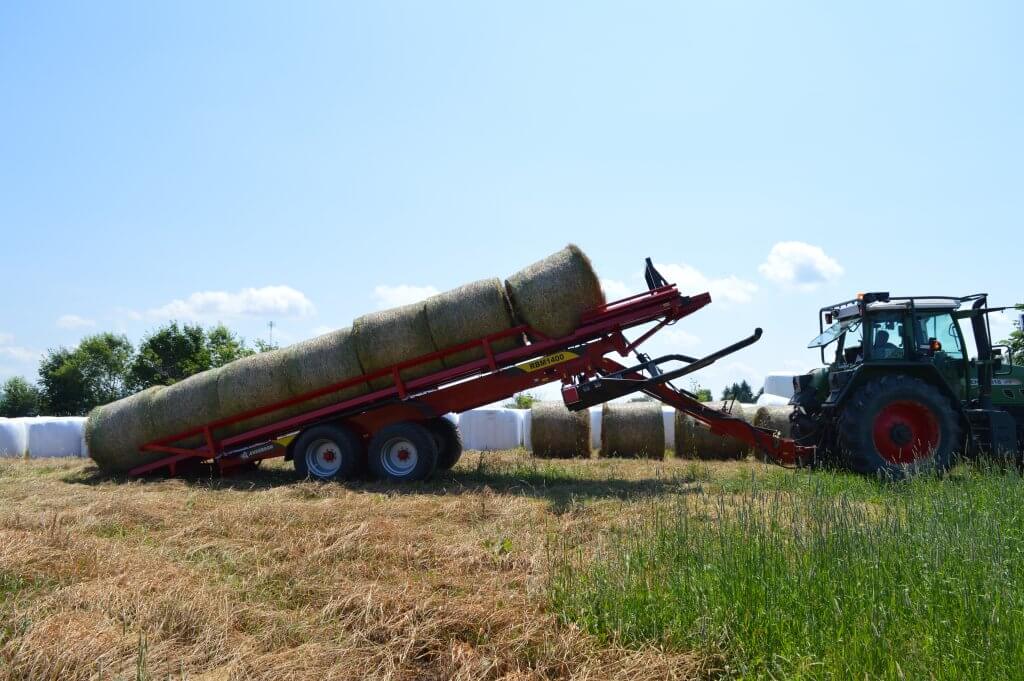

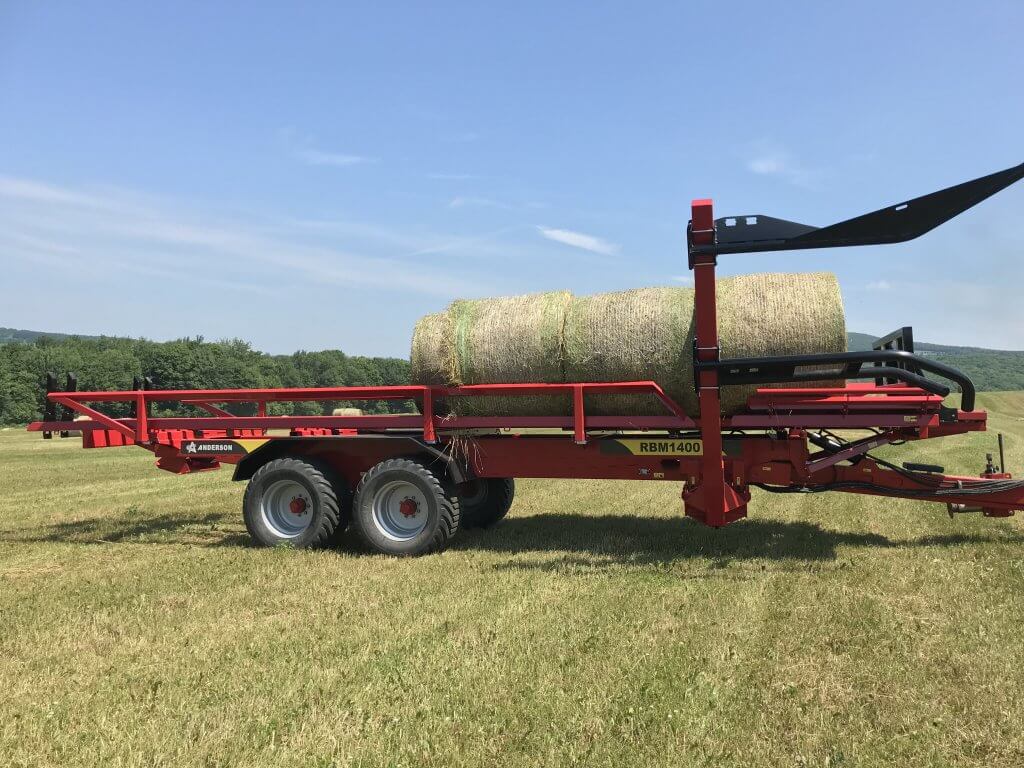

These self-loading trailers are designed to collect up to 14 round bales of wet or dry hay in a simpler and faster way. Reliable durability and optimum machine handling offers unmatched effiency in the field.

Condition

Used

Bale
Round bale diameter	Up to 6 ft (1,8 m)
Square bale	n/a
Bale type	Baleage/dry hay/straw

Bale

Round bale diameter

Up to 6 ft (1,8 m)

Square bale

n/a

Bale type

Baleage/dry hay/straw

Specifications
Tandem axle	Standard
Tandem axle with brakes	Optional
Self-Steering axle with brakes	Optional
Safety chain	Standard
Self-loading arm design	Tubular round
Able to load a second row of bales	N/A
Tires	550/45-22,5
Caméra (de recul)	Optional
Tractor minimum hydraulic flow	2500 psi (172 bar)
HP requirements	115 HP
Tractor outlets required	3
PTO Speed/ PTO shaft	N/A
Controls	Tractor’s hydraulic circuit

Specifications

Tandem axle

Standard

Tandem axle with brakes

Optional

Self-Steering axle with brakes

Optional

Safety chain

Standard

Self-loading arm design

Tubular round

Able to load a second row of bales

N/A

Tires

550/45-22,5

Caméra (de recul)

Optional

Tractor minimum hydraulic flow

2500 psi (172 bar)

HP requirements

115 HP

Tractor outlets required

PTO Speed/ PTO shaft

N/A

Controls

Tractor’s hydraulic circuit

Dimensions
Width – A	8 ft 4 in (2,55 m)
Overall width (inlcuding loading arm)	8 ft 4 in (2,55 m)
Height – B	7 ft 10 in (2,39 m)
Overall height (inlcuding loading arm)	11 pi 11 po (3,64 m)
Bed height - E	4 pi 9 po (1,44 m)
Overall length – D	38 pi 5 po (11,76 m)
Overall weight	12790 lb (5800 kg)
Empty Weight on tow bar***	2855 lb (1295 kg)

Dimensions

Width – A

8 ft 4 in (2,55 m)

Overall width (inlcuding loading arm)

8 ft 4 in (2,55 m)

Height – B

7 ft 10 in (2,39 m)

Overall height (inlcuding loading arm)

11 pi 11 po (3,64 m)

Bed height - E

4 pi 9 po (1,44 m)

Overall length – D

38 pi 5 po (11,76 m)

Overall weight

12790 lb (5800 kg)

Empty Weight on tow bar***

2855 lb (1295 kg)

Capacity
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m)	14
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m)	14
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m)	14
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m)	12
Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m)	12
Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m)	n/a
Loading arm lifting capacity	2500 lb (1135 kg)
Total weight including load	42 000 lb (19 000 kg)

Capacity

Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m)

Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m)

Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m)

Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m)

Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m)

Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m)

n/a

Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m)

n/a

Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m)

n/a

Loading arm lifting capacity

2500 lb (1135 kg)

Total weight including load

42 000 lb (19 000 kg)
