Bale Baron POWER LINX DUAL POWER HITCH

Description

Maximize your productivity and reduce labor costs with the innovative Power Linx – Dual Power Hitch. This advanced hitch system allows you to bale twice as much with one less operator and one less tractor, making your hay handling operations more efficient and cost-effective.

The Power Linx – Dual Power Hitch is the perfect solution for farmers looking to enhance their baling efficiency and reduce operational costs. By doubling your baling capacity with one less operator and one less tractor, you can achieve greater productivity and save valuable time and resources. Discover the full range of innovative hay handling solutions at Parallel Ag. Visit our Bale Baron showroom to see the Power Link – Dual Power Hitch in action and find the right equipment to meet your needs.

Condition	New
Model	Power Linx Dual

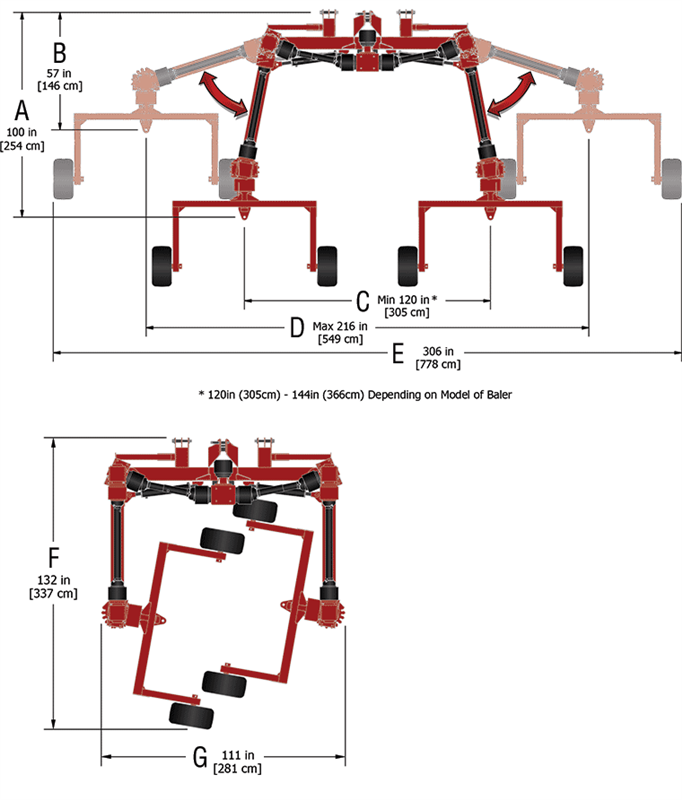

MODEL	2118	2128	2132
Dimension A	8 ft, 4 in (254 cm)	13 ft, 4 in (406 cm)	15 ft, 4 in (467 cm)
Dimension B	4 ft, 9 in (146 cm)	5 ft, 4 in (162 cm)	5 ft, 9 in (406 cm)
Dimension C	Min 10 ft (305 cm)	Min 10 ft (305 cm)	Min 10 ft (305 cm)
Dimension D	Max 18 ft (549 cm)	Max 28 ft (853 cm)	Max 32 ft (978 cm)
Dimension E	25 ft, 6 in (778 cm)	35 ft, 6 in (1082 cm)	39 ft, 7 in (1207 cm)
Dimension F	11 ft (337 cm)	16 ft (488 cm)	18 ft (551 cm)
Dimension G	9 ft, 3 in (281 cm)	9 ft, 3 in (281 cm)	9 ft, 3 in (281 cm)
Minimum Horse Power Required	90 HP	110 HP	110 HP
Horse Power Rating	150 HP	150 HP	150 HP
Quick Hitch Compatible	Yes	Yes	Yes
PTO (Input)	1000 RPM 1-3/8" -21	1000 RPM 1-3/8" -21	1000 RPM 1-3/8" -21
PTO (Output)	540 RPM 1-3/8" -13	540 RPM 1-3/8" -13	540 RPM 1-3/8" -13
Hitch	3PH Cat 2 and Cat 3	3PH Cat 2 and Cat 3	3PH Cat 2 and Cat 3
Remotes Required	2 Remotes	2 Remotes	2 Remotes

MODEL

2118

2128

2132

Dimension A

8 ft, 4 in (254 cm)

13 ft, 4 in (406 cm)

15 ft, 4 in (467 cm)

Dimension B

4 ft, 9 in (146 cm)

5 ft, 4 in (162 cm)

5 ft, 9 in (406 cm)

Dimension C

Min 10 ft (305 cm)

Dimension D

Max 18 ft (549 cm)

Max 28 ft (853 cm)

Max 32 ft (978 cm)

Dimension E

25 ft, 6 in (778 cm)

35 ft, 6 in (1082 cm)

39 ft, 7 in (1207 cm)

Dimension F

11 ft (337 cm)

16 ft (488 cm)

18 ft (551 cm)

Dimension G

9 ft, 3 in (281 cm)

Minimum Horse Power Required

90 HP

110 HP

Horse Power Rating

150 HP

Quick Hitch Compatible

Yes

PTO (Input)

1000 RPM 1-3/8" -21

PTO (Output)

540 RPM 1-3/8" -13

Hitch

3PH Cat 2 and Cat 3

Remotes Required

2 Remotes

Features

Lift And Lock Feature

When you need to back up, the Lift and Lock feature comes into play. By lifting the 3-point hitch (3PH), the dollies are locked in place, preventing them from turning. This feature, combined with the independent hydraulic swing on the arms, allows you to steer the balers effectively while reversing. This ensures precise maneuverability and control, even in tight spaces.

Compact Design

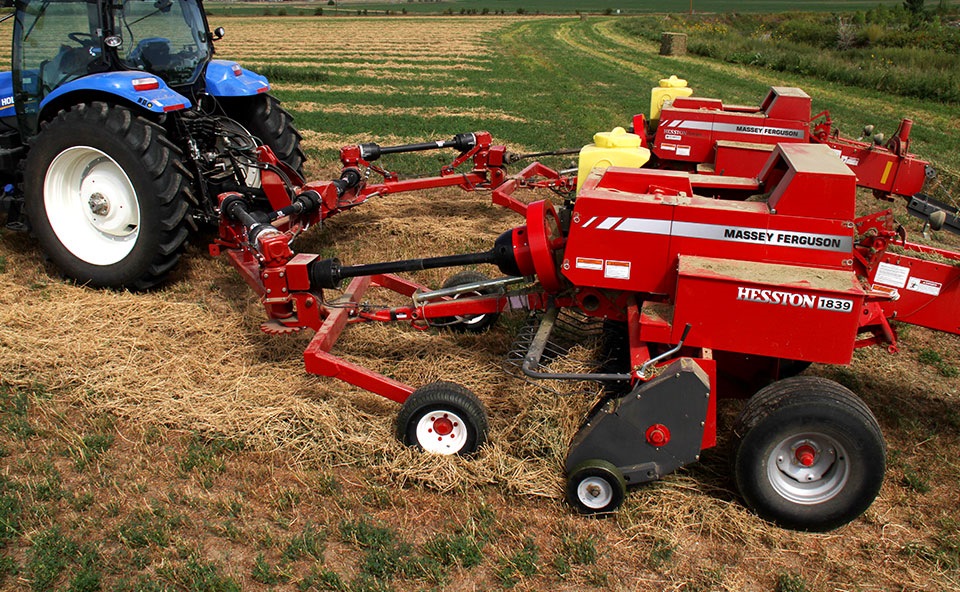

The Power Linx boasts a short-coupled compact design that enhances maneuverability, especially on headlands. The swivel gearboxes efficiently transfer power to the balers and allow for sharp turns without driveline chattering, ensuring long life and trouble-free operation. The trailing dolly design follows the ground contour seamlessly, enabling the baler pickup to make a clean sweep. This design also allows for sharp cornering, keeping the balers aligned with the swaths for optimal performance.

In-Field Adjustments At Hand

Both arms of the Power Linx independently swing hydraulically and are controlled via tractor remotes. This feature provides you with the flexibility to adjust to varying field conditions on the go. Whether you need to adjust one or both arms, you have the power to make real-time adjustments, ensuring efficient and effective baling operations.
