Manitou MT 625 H

Description

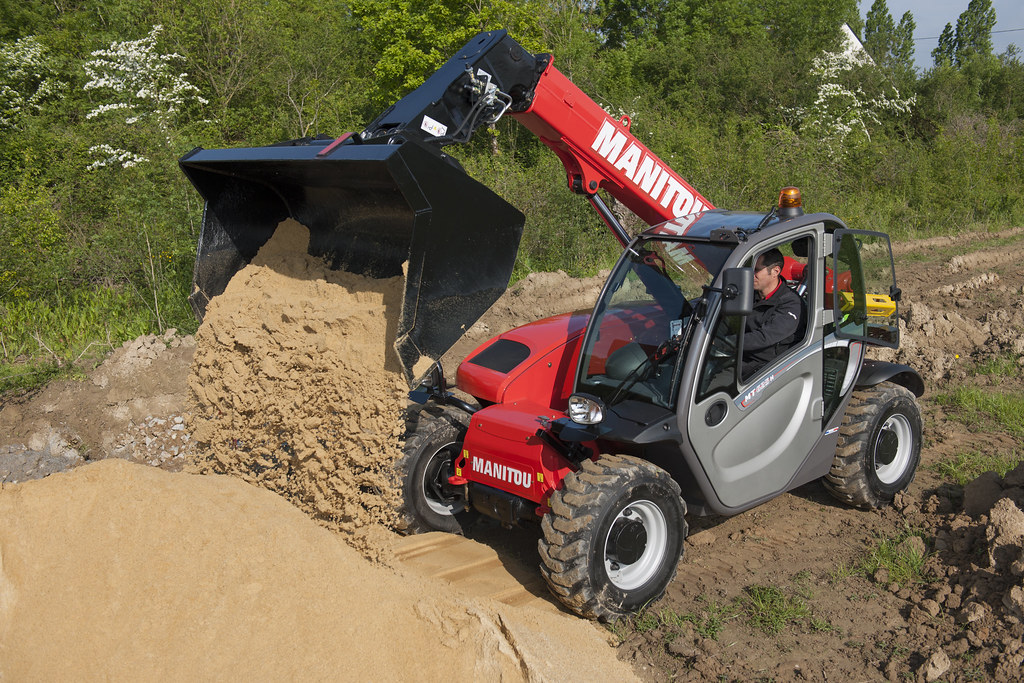

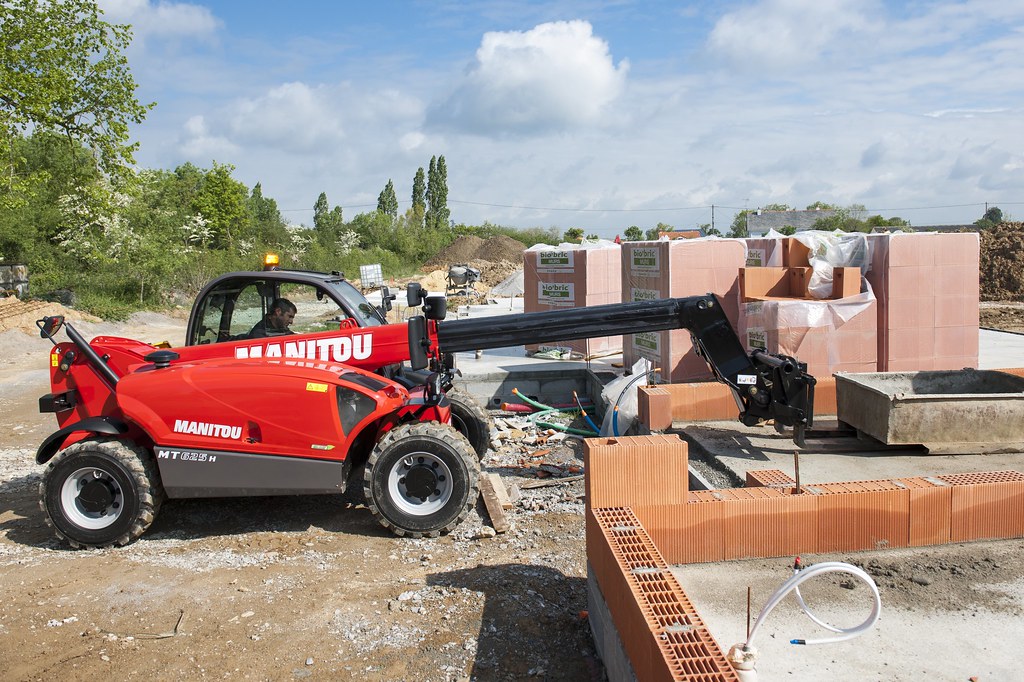

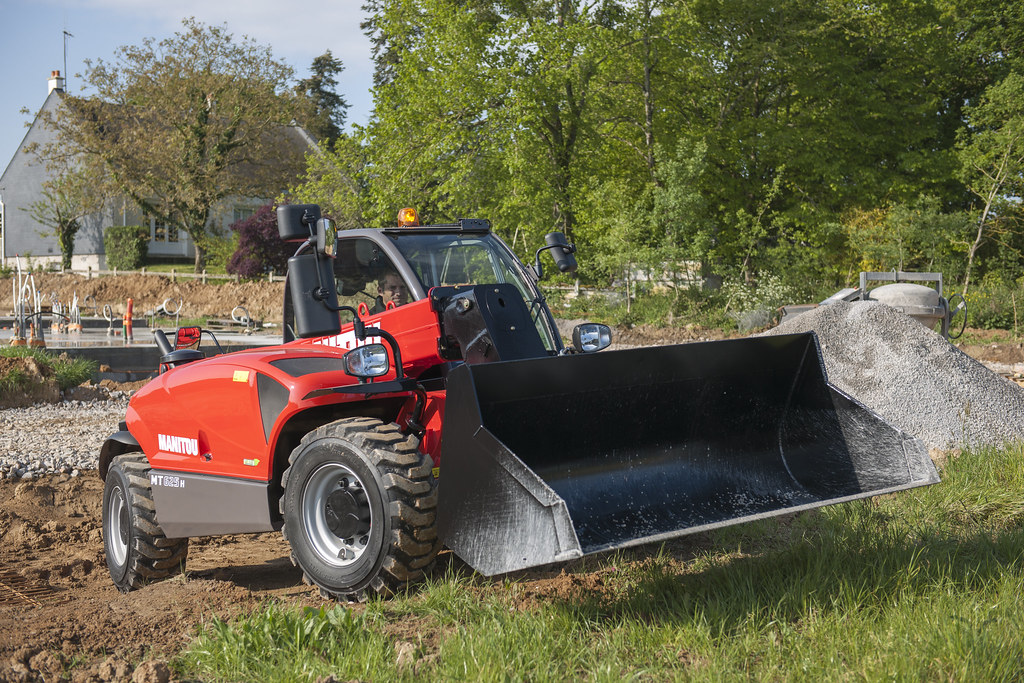

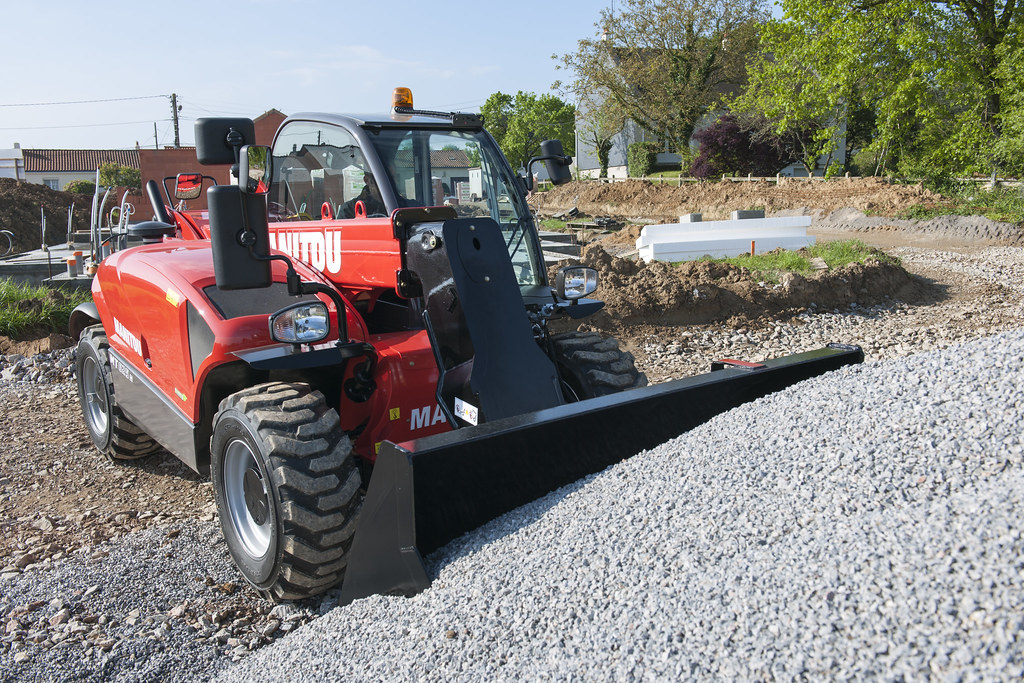

The MT 625 H telehandler is specially designed for building sites and renovation projects involving lower heights. Its compact dimensions – with a width of 1.8 m and under 2 m in height – mean you can easily pass under thresholds and navigate congested areas. Its 3.3 m turning radius and 3 steering modes available provide you with excellent manoeuvrability. Easy to use, this handler features an ergonomic instrument panel and JSM-equipped joystick to easily execute manoeuvres.

The MT 625 H has a lifting capacity of 2.5 t, with a max lifting height of 5.85 m. Its 75 hp engine reaches speeds of up to 25 km/h. Maintenance is made easy with the wide opening angle of the bonnet. The 90 l gear pump allows for simultaneous movement of the boom and telescope for increased productivity.

Condition New
Lifting height 19'2"
Lifting capacity 5500 lb
Drawbar pull 7980 lbf
Breakout force 7704 lbf
Moving speed 15.5 mph
Working speed 15.5 mph
Lifting time (unladen) 8 s
Lowering time (unladen) 5.4 s
Boom extension time (unladen) 5.6 s
Boom retraction time (unladen) 4.3 s
Crowd 3.5 s
Dump 3.6 s
Length (up to the back of the fork) 12'9"
Wheelbase length 7'8"
Width 5'12"
Height 6'4"
Weight (unladen) 10362 lb
Turning radius 10'10"
Ground clearance 1'1"
Energy Diesel
Engine brand Kubota
Engine type Stage 5
Power 55.4 KW
Max. Torque @ Rotation 265 Nm
Number of cylinders 4
Total capacity 203.27 in3
Injection Direct
Cooling Water
Transmission type Hydrostatic
Pressure 235 bars
Hydraulic oil tank volume 30.37 gal
Standard tyres Pneumatic
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/2
Parking brake Automatic negative handbrake
Driving position noise levels 76 dB
Environmental noise levels 104 dB
Vibrations affecting hands/arms <2.5 m/s
