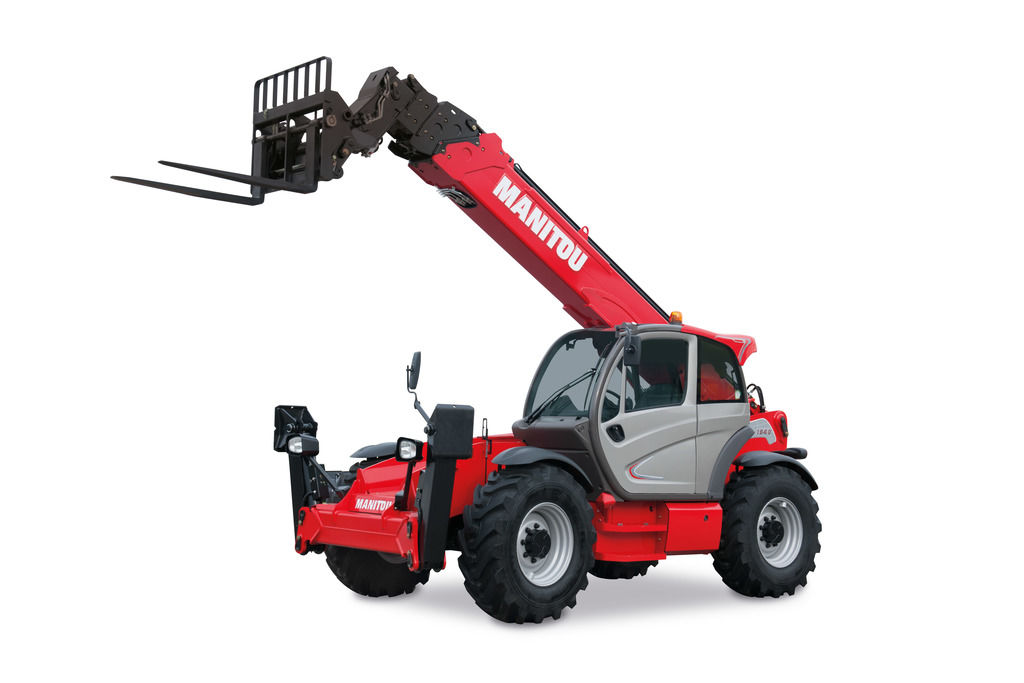

Manitou MT 1840 A

Description

The MT 1840 A telehandler is an excellent choice for construction sector professionals who need power and versatility for handling operations on their work sites. Capable of safely lifting, placing and removing loads (bulks, pallets, structures, etc.) up to 18 m in height with a maximum capacity of 4 t, this machine is still agile enough to get around on all types of surfaces.

With predisposition for a platform basket or any number of other compatible attachments available, it can help you perform a large number of tasks by simply swapping out the attachment thanks to the Easy Connect System (ECS). And quickly and easily transportable from one site to another and robust and versatile, it’s sure to please your operators.

Condition New
Lifting height 57'7"
Lifting capacity 8800 lb
Max reach 42'1"
Drawbar pull 23155 lbf
Breakout force 18321.92 lbf
Moving speed 15.5 mph
Lifting time (unladen) 14 s
Lowering time (unladen) 14 s
Boom extension time (unladen) 19 s
Boom retraction time (unladen) 15 s
Crowd 5 s
Dump 5 s
Length (up to the back of the fork) 20'7"
Wheelbase length 10'1"
Width 7'11"
Height 8'2"
Weight (unladen) 27280 lb
Turning radius 13'2"
Ground clearance 1'5"
Energy Diesel
Engine brand Perkins
Engine type Stage IV / Tier 4 Final
Engine manufacturer type 854E-E34TA
Power 75 KW
Max. Torque @ Rotation 430 Nm
Total capacity 207.4 in3
Injection Direct
Cooling Water
Transmission type Torque converter
Pressure 270 bars
Hydraulic oil tank volume 35.6 gal
Standard tyres Pneumatic
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/2
Parking brake Automatic negative handbrake
Driving position noise levels 78 dB
Environmental noise levels 103 dB
Vibrations affecting hands/arms 2.5 m/s
