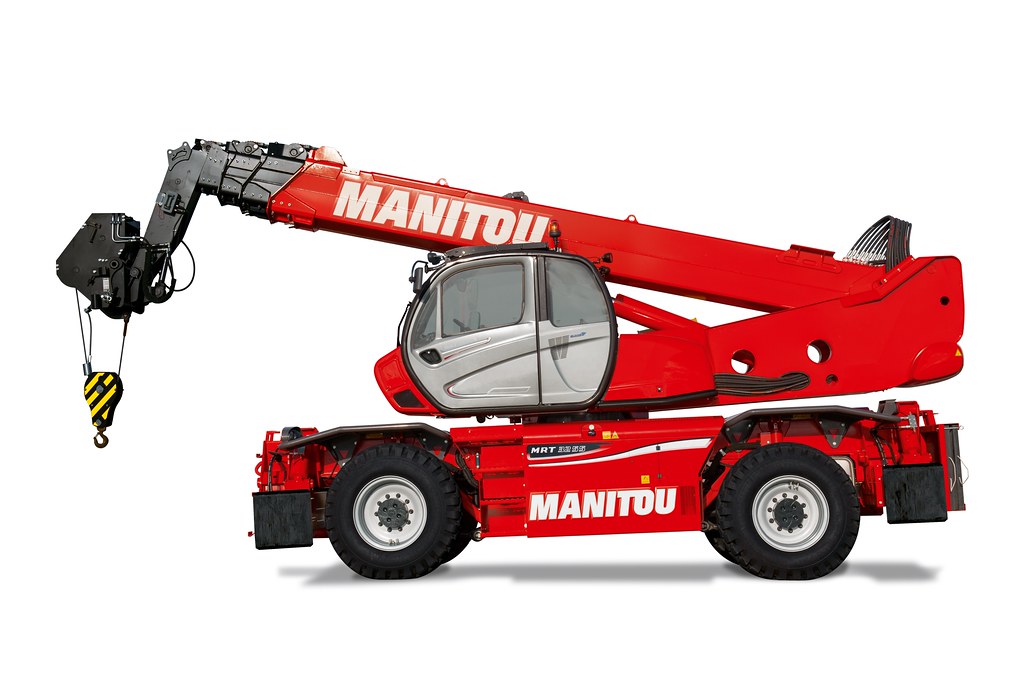

Manitou MRT 3255 Privilege Plus

Description

The MRT-X 3255 Privilege Plus is an all-terrain rotating telehandler well suited for construction and industrial applications.  This 3-in-1 unit combines the functions of a telehandler, crane and work platform, making it a valuable asset for handling operations, while full 360° turret rotation means you can carry out various tasks without the need to move the machine.

The pentagonal cross-section allows for absolute precision when operating the boom, preserving lateral rigidity regardless of the amount of wear, which translates into greater safety for both you and your teams.  Both powerful and precise, you will not be able to do without this versatile machine.

Condition New
Lifting height 103'7"
Lifting capacity 12125 lb
Max reach 89'2"
Drawbar pull 23604 lbf
Overhang 12'6"
Moving speed 24.8 mph
Length (up to the back of the fork) 27'10"
Total length (fork included) 31'10"
Wheelbase length 12'4"
Width 8'2"
Overall width (stabilizers lowered) 23'2"
Height 10'5"
Weight (unladen) 52880 lb
Turning radius 18'4"
Ground clearance 1'4"
Energy Diesel
Engine brand Mercedes
Engine type Stage IV / Tier 4 Final
Engine manufacturer type OM 934 LA.E4-1
Power 170 KW
Max. Torque @ Rotation 900 Nm
Number of cylinders 4
Total capacity 3.11 in3
Injection Direct
Cooling Water
Voltage 24 V
Amperage 120 Ah
Transmission type Continuous variable
Pressure 350 bars
Hydraulic oil tank volume 78 gal
Standard tyres Pneumatic
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/2
Number of braking wheels (front/rear) 2/2
Tyre dimensions (front) 17,5 - R25
Tyre dimensions (rear) 17,5 - R25
Parking brake Automatic negative handbrake
Driving position noise levels 80 dB
Environmental noise levels 106 dB
Vibrations affecting hands/arms <2.50 m/s
