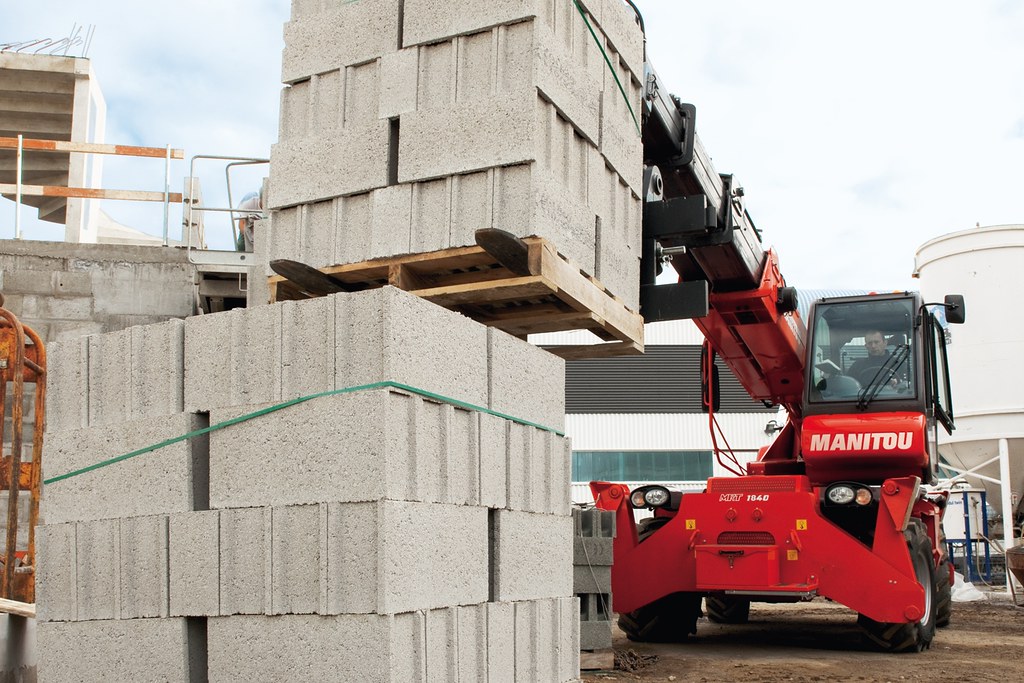

Manitou MRT 1840 Easy T4 S2 360°

Description

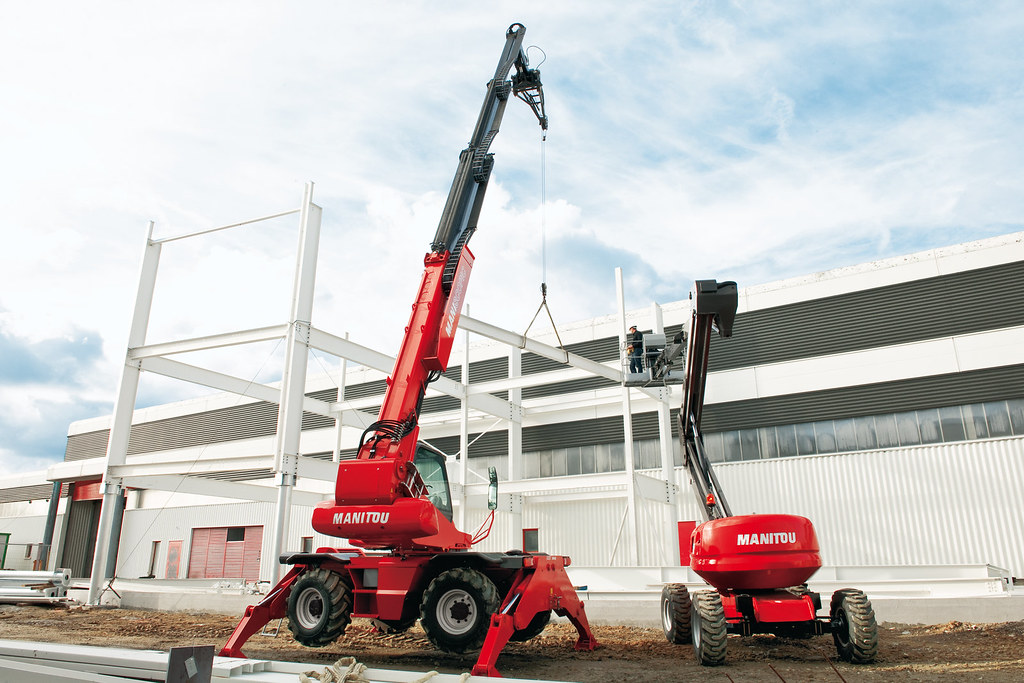

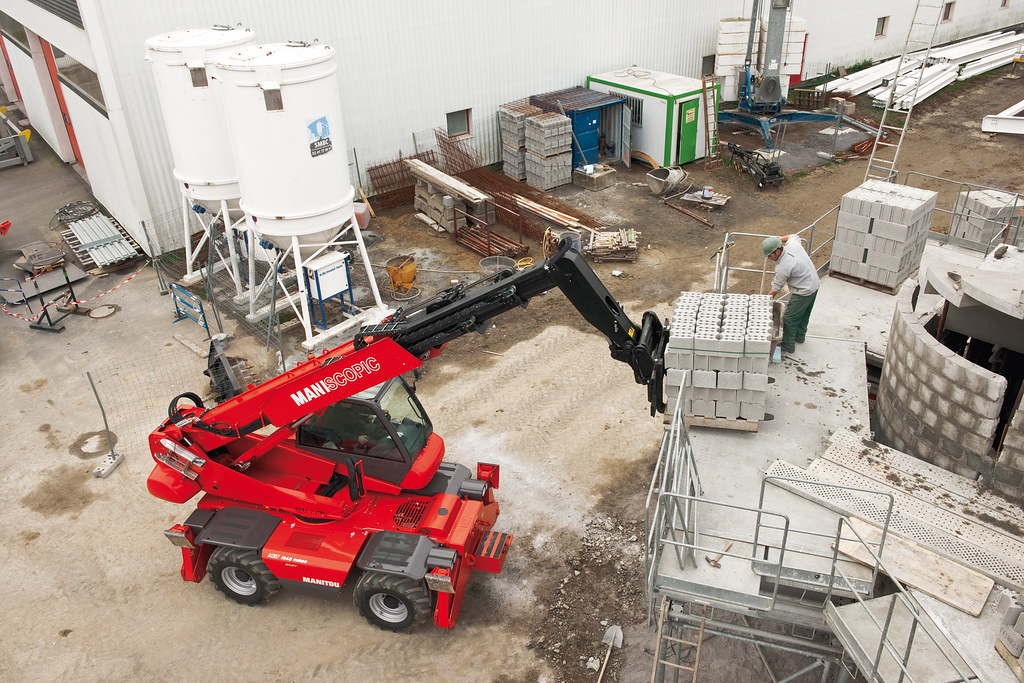

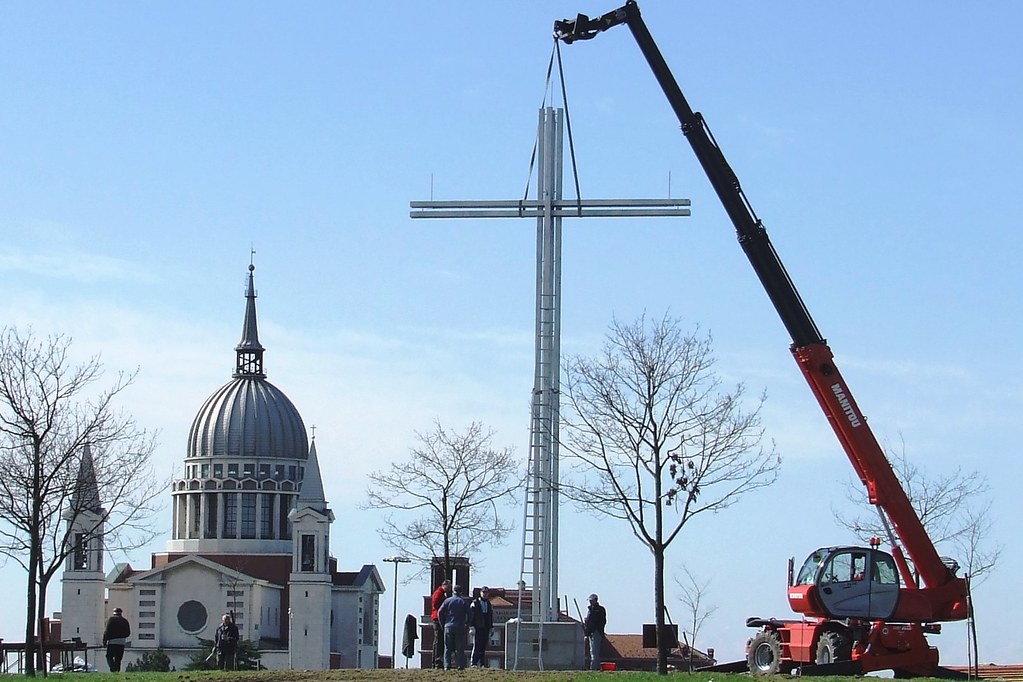

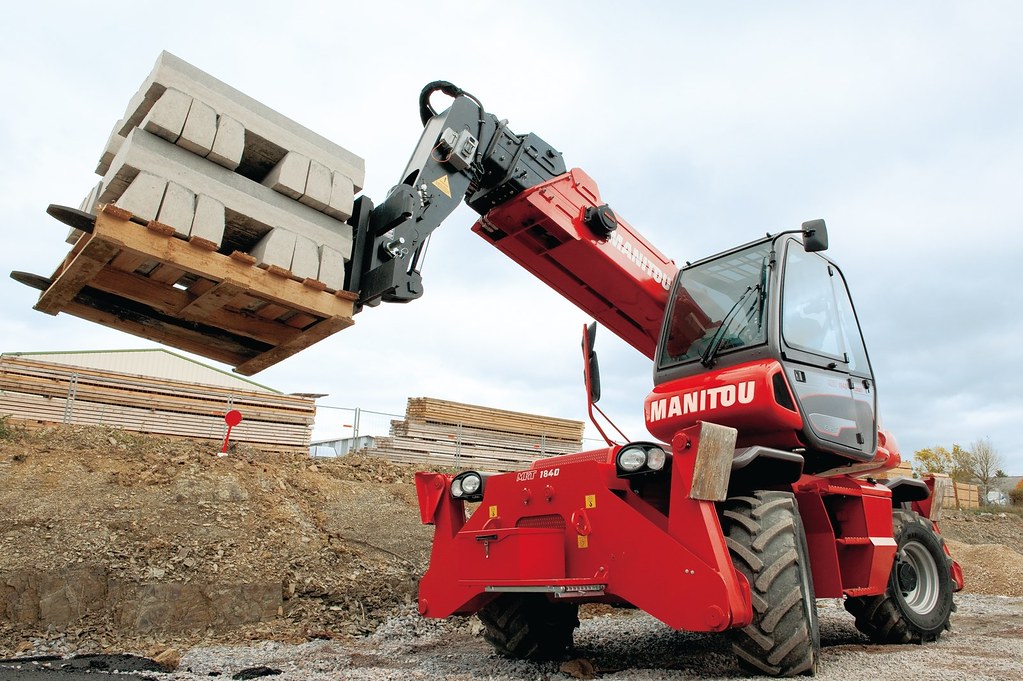

The MRT 1840 Easy rotating telehandler is a perfect fit as both your first piece of construction equipment or as part of a rental fleet. Incredibly versatile, it’s used for a wide range of applications thanks to the diversity provided by the compatible attachments available (forks, lifts, platforms, crane, etc.)–a true 3-in-1 machine.

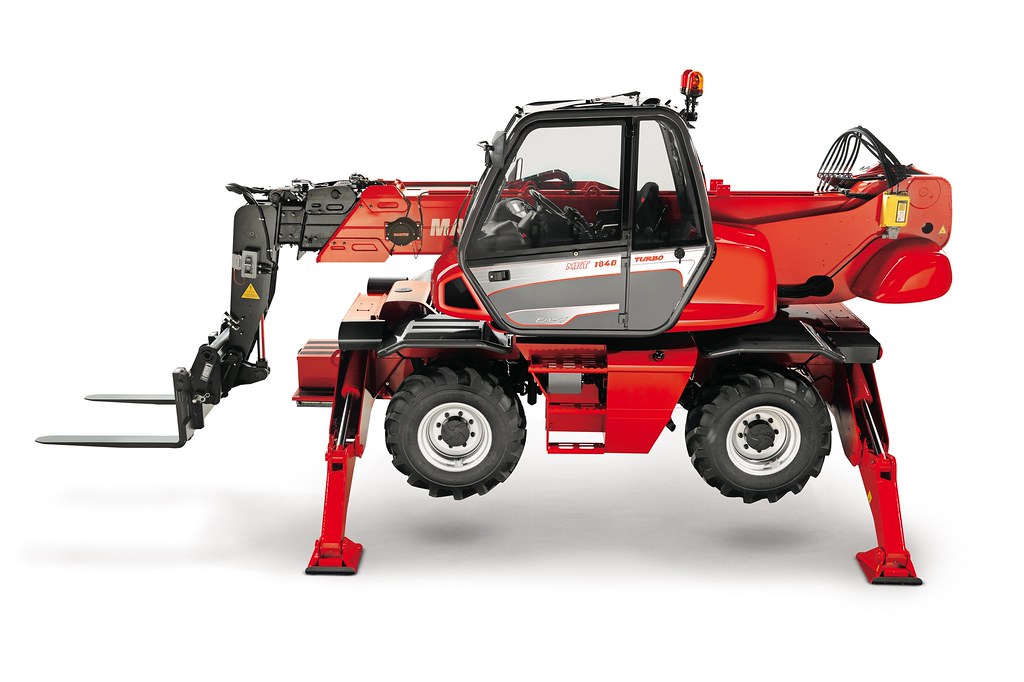

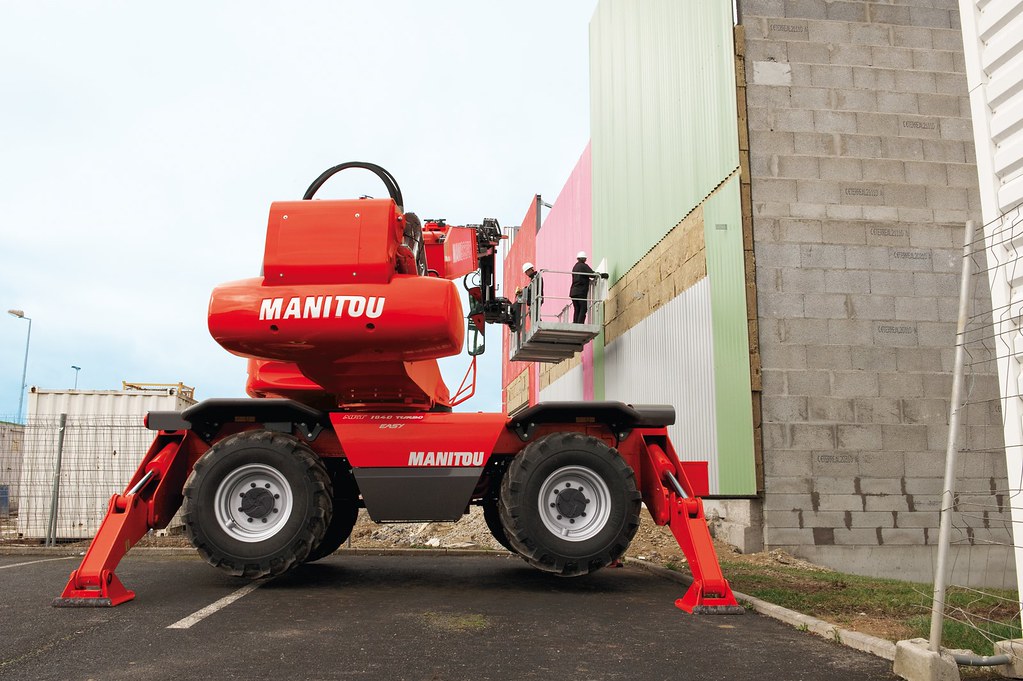

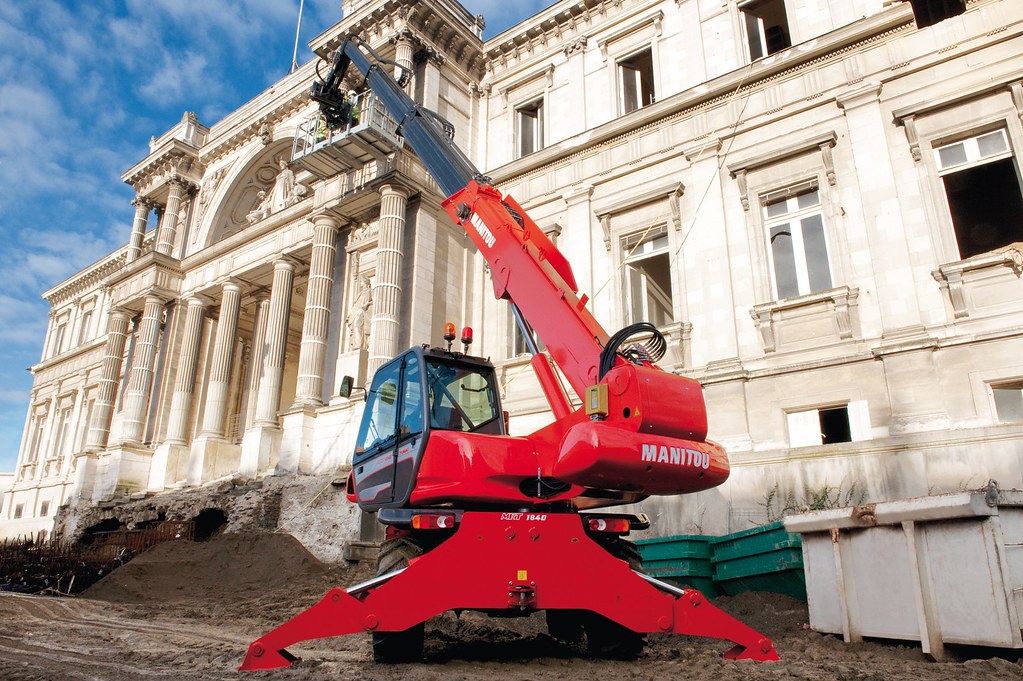

This telehandler was designed for maximum on-site safety. It comes equipped with fixed pivot outriggers with a broad support surface as well as a load status monitoring system capable of detecting any risk of overload to the machine. Simple, reliable and a true multi-tasker, this machine will quickly become the most popular on the work yard.

Condition New
Lifting height 58'10"
Lifting capacity 8800 lb
Max reach 49'7"
Drawbar pull 19333 lbf
Overhang 6'8"
Moving speed 15.5 mph
Length (up to the back of the fork) 18'2"
Total length (fork included) 22'1"
Wheelbase length 7'7"
Width 7'10"
Overall width (stabilizers lowered) 13'0"
Height 9'9"
Weight (unladen) 30137 lb
Turning radius 12'1"
Ground clearance 1'3"
Energy Diesel
Engine brand Perkins
Engine type Stage 3B
Engine manufacturer type 854 E-E 34 TA
Power 55 KW
Max. Torque @ Rotation 424 Nm
Number of cylinders 4
Total capacity 207.4 in3
Injection Direct
Cooling Water
Voltage 12 V
Amperage 120 Ah
Transmission type Hydrostatic
Pressure 270 bars
Hydraulic oil tank volume 39.6 gal
Standard tyres Pneumatic
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/2
Number of braking wheels (front/rear) 2/0
Parking brake Automatic negative handbrake
Driving position noise levels 79.7 dB
Environmental noise levels 104 dB
Vibrations affecting hands/arms <2.50 m/s
