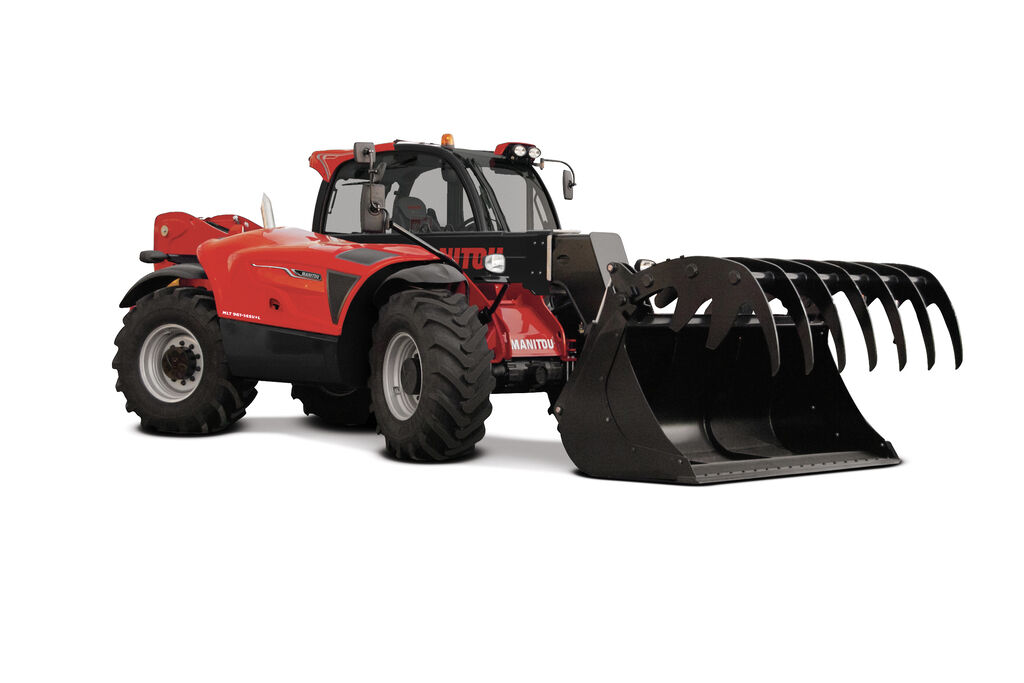

Manitou MLT-X 961-145 V+ L

Description

The MLT 961-145 V+ is a specially designed telehandler for heavy-duty activities. The 141 hp John Deere (Stage IV / Final Tier 4) engine will provide the power and speed you need, with controlled fuel consumption to minimize the impact your machine has on the environment. The CVT (Continuously Variable Transmission) ensures smoothness while maintaining torque. The reinforced oil-bath immersed brakes ensure a long braking life, while the automatic radiator unclogging system reverses airflow for constant optimum cooling, particularly in dusty environments. Maximum travel speed adjustment and mode selectors (standard or maintenance) let you choose controls that meet your needs and provide comfort and security. The inching pedal helps you precisely approach and grab loads. The driver’s cab features many adjustable elements to accommodate all shapes and sizes so the operator remains comfortable when working long hours. The cab is also is set up for watertightness (pressurisation optional) and JSM (Joystick Switch & Move) control to provide simplicity of performing all machine functions and directional drive with one hand.

Condition New
Lifting height 29'7"
Lifting capacity 13228 lb
Max reach 17'5"
Drawbar pull
Lifting time (unladen) 8.5 s
Lowering time (unladen) 6.5 s
Boom extension time (unladen) 7 s
Boom retraction time (unladen) 6 s
Crowd 3.8 s
Dump 3.6 s
Length (up to the back of the fork) 20'0"
Wheelbase length 9'1"
Width 8'0"
Height 8'4"
Weight (unladen) 26015 lb
Turning radius 14'1"
Ground clearance 0'2"
Energy Diesel
Engine brand John Deere
Engine type Stage 3A
Power 104 KW
Max. Torque @ Rotation 540 Nm
Number of cylinders 4
Total capacity 275 in3
Transmission type Continuous variable
Pressure 270 bars
Hydraulic oil tank volume 40 gal
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Tractor European Conformity Yes
Parking brake Automatic negative handbrake
Driving position noise levels 72 dB
Environmental noise levels 105 dB
Vibrations affecting hands/arms <2.5 m/s
