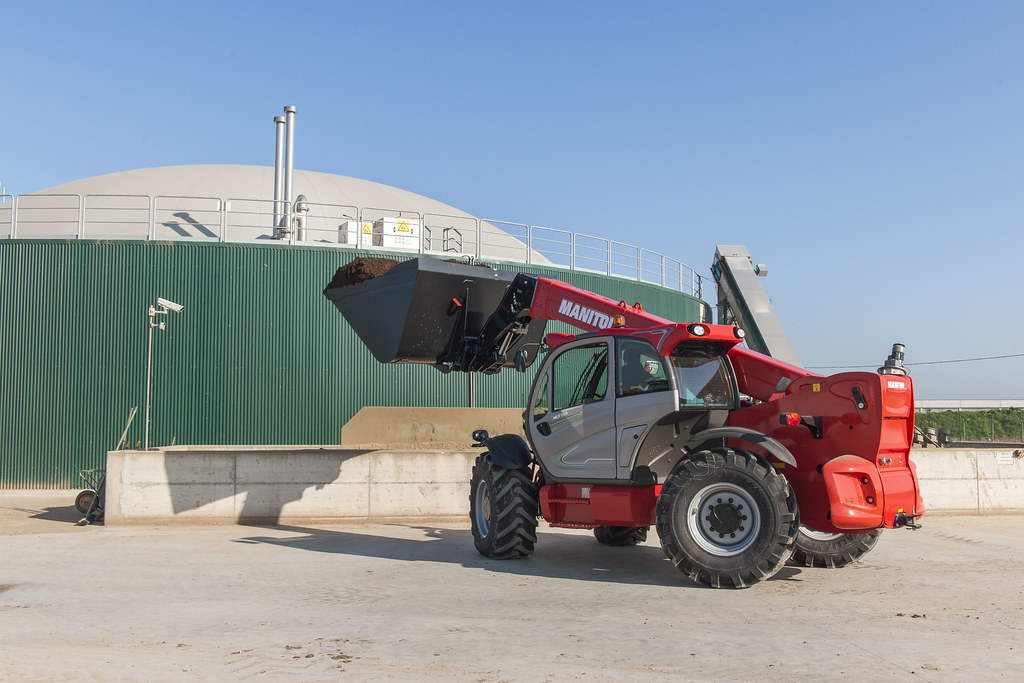

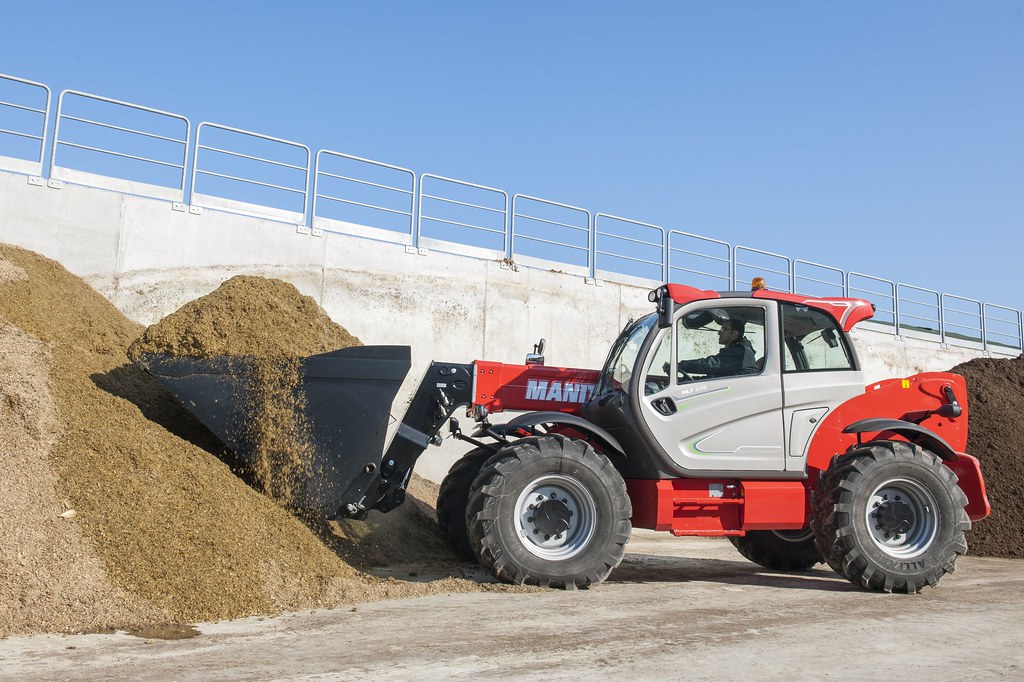

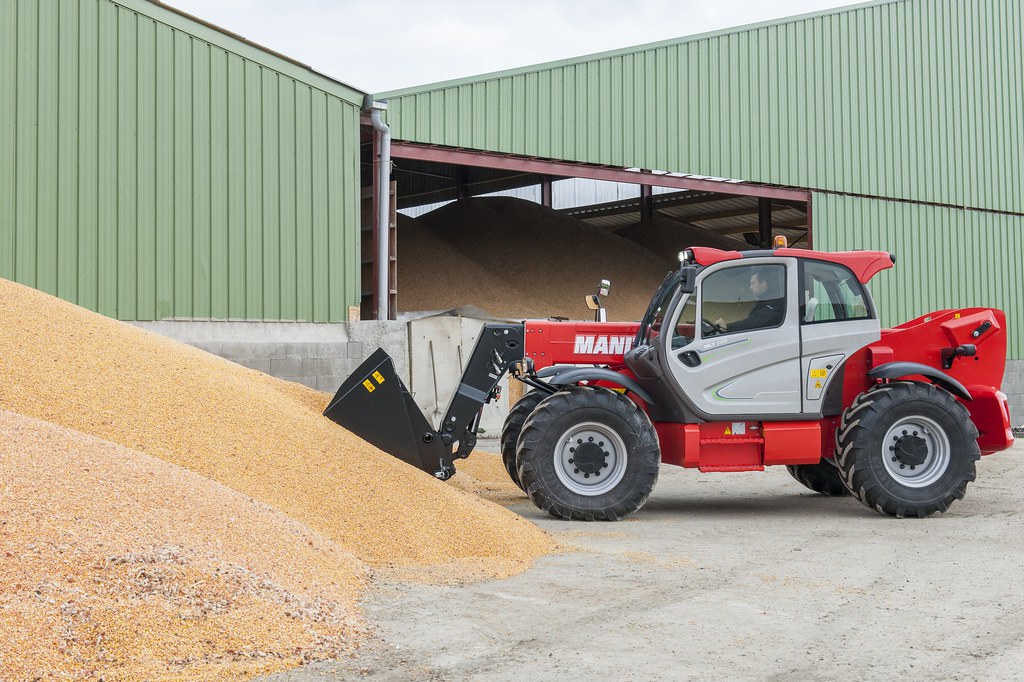

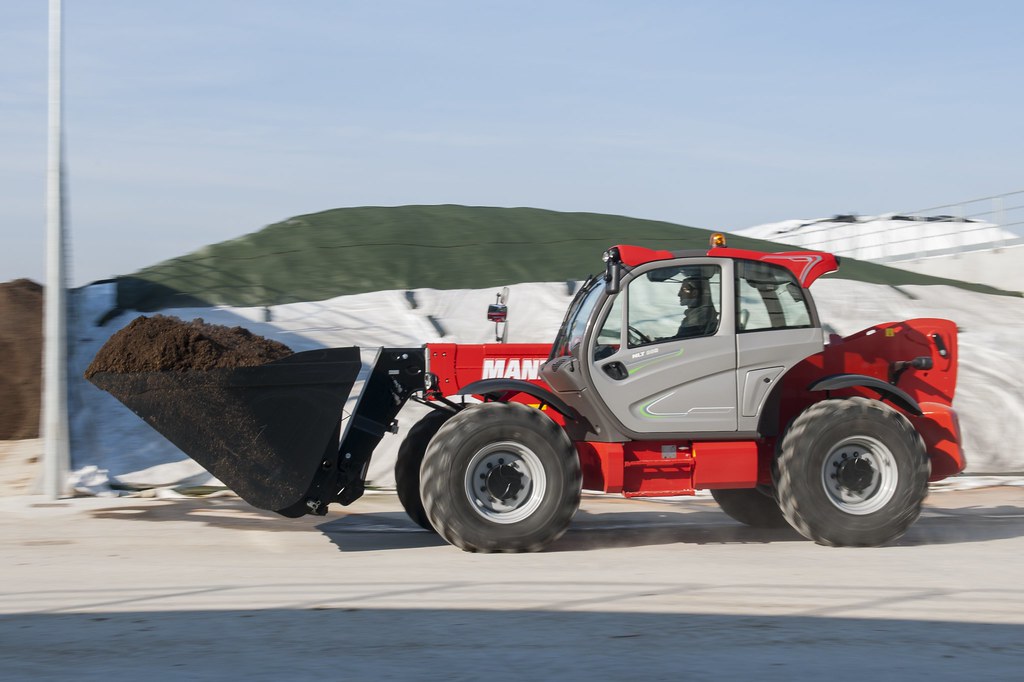

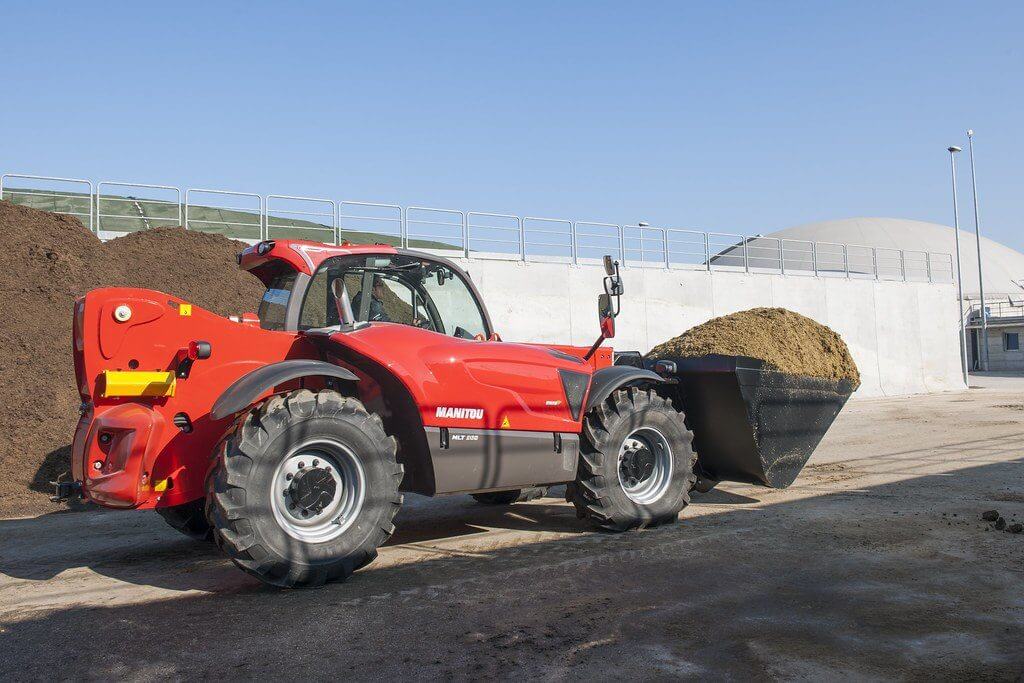

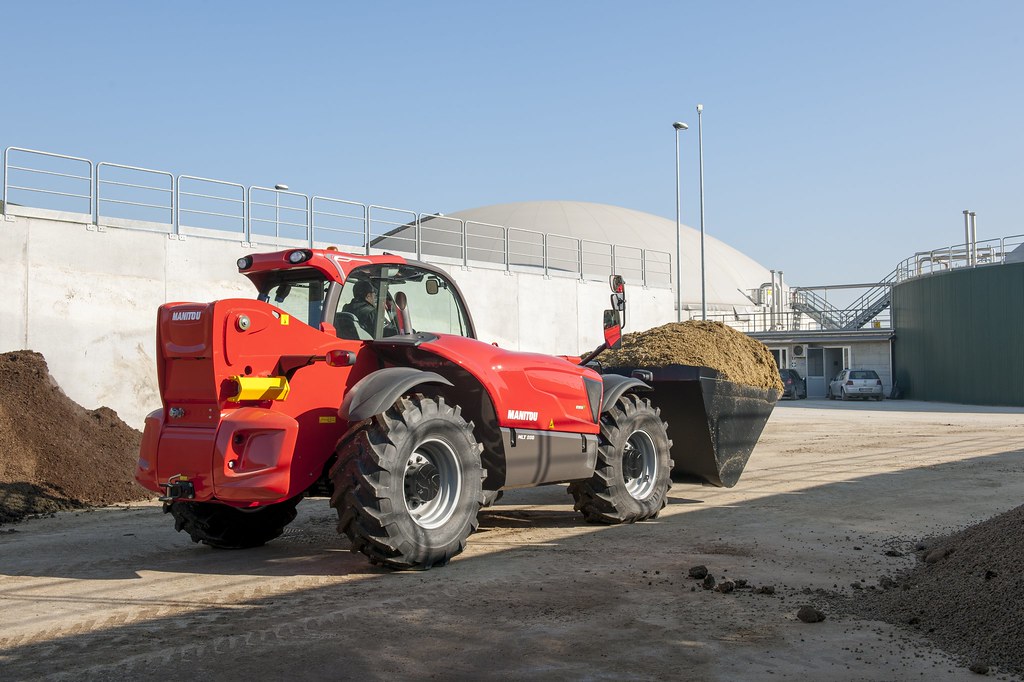

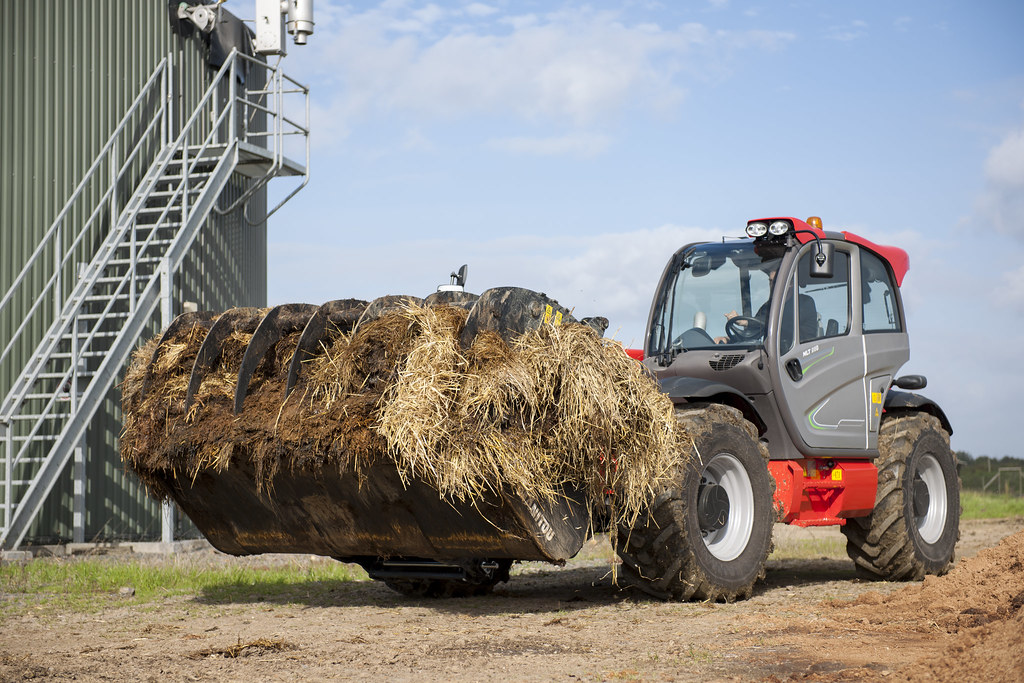

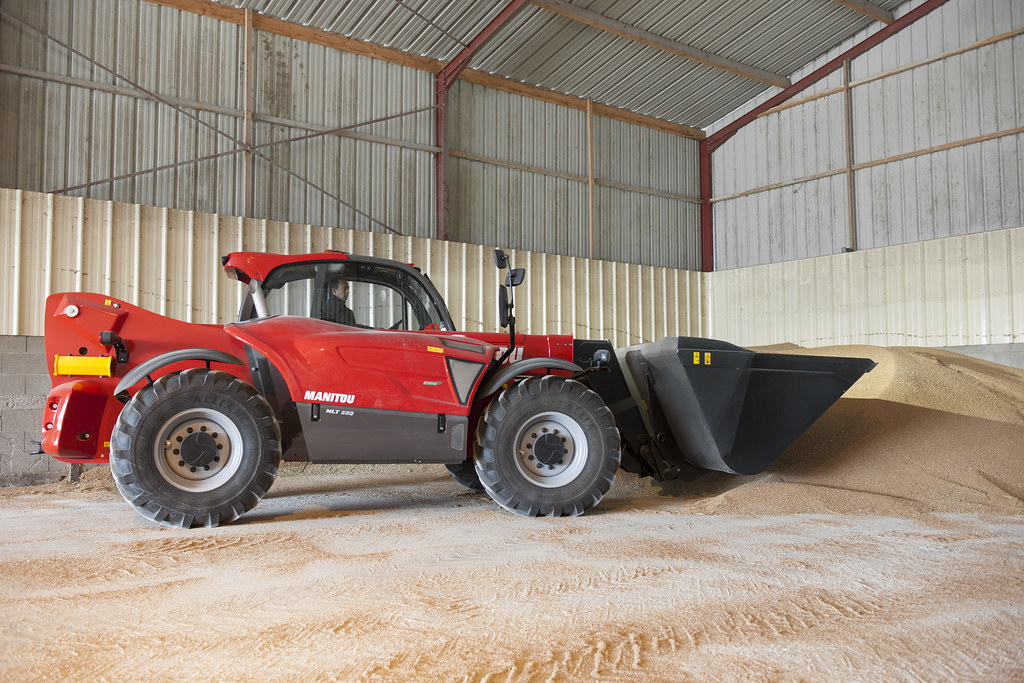

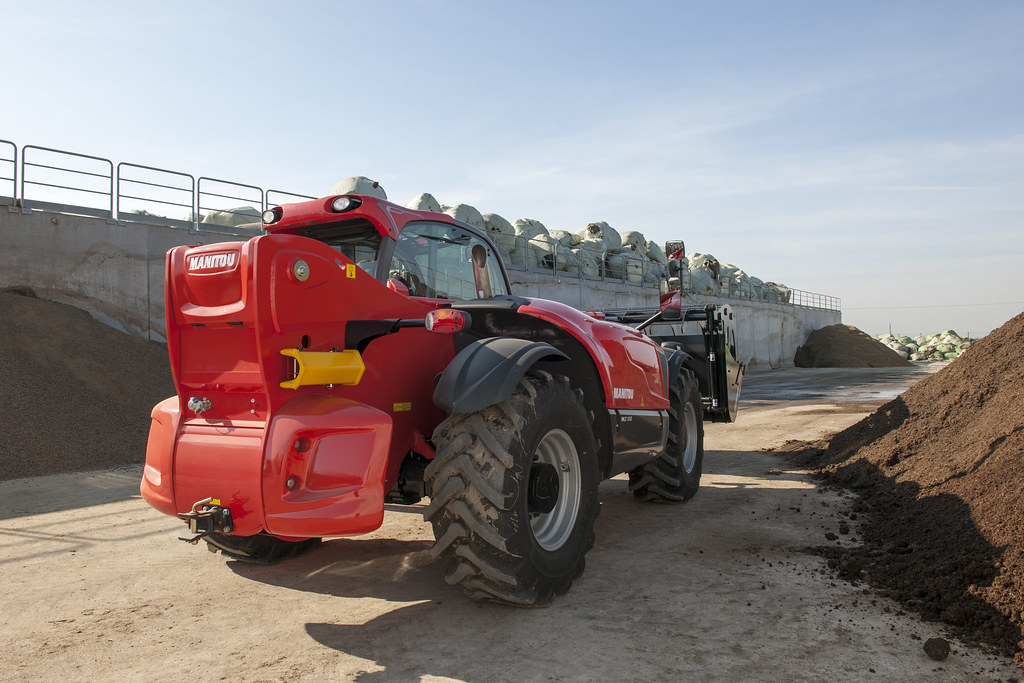

Manitou MLT 960

Description

The MLT 960 is a specially designed telehandler for heavy-duty activities. The 141 hp John Deere (Stage IV / Final Tier 4) engine will provide the power and speed you need, with controlled fuel consumption to minimize the impact your machine has on the environment. The CVT (Continuously Variable Transmission) ensures smoothness while maintaining torque. The reinforced oil-bath immersed brakes ensure a long braking life, whilst the automatic radiator unclogging system reverses airflow for constant optimum cooling, particularly in dusty environments.

Maximum travel speed adjustment and mode selectors (standard or maintenance) let you choose controls that meet your needs and provide comfort and security. The inching pedal helps you precisely and smoothly approach and grab loads, whilst the driver’s cab air and watertightness (presurisation optional), JSM (Joystick Switch & Move) controls and adjustable elements accommodate all shapes and sizes so the operator remains comfortable when working long hours.

Condition New
Lifting height 29'7"
Lifting capacity 13228 lb
Max reach 17'5"
Drawbar pull
Lifting time (unladen) 8.5 s
Lowering time (unladen) 6.5 s
Boom extension time (unladen) 7 s
Boom retraction time (unladen) 6 s
Crowd 3.8 s
Dump 3.6 s
Length (up to the back of the fork) 20'0"
Wheelbase length 9'1"
Width 8'0"
Height 8'4"
Weight (unladen) 25133 lb
Turning radius 14'1"
Ground clearance 0'2"
Energy Diesel
Engine brand John Deere
Engine type Stage IV / Tier 4 Final
Power 104 KW
Max. Torque @ Rotation 540 Nm
Number of cylinders 4
Total capacity 275 in3
Transmission type Continuous variable
Pressure 270 bars
Hydraulic oil tank volume 40 gal
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Tractor European Conformity Yes
Parking brake Automatic negative handbrake
Driving position noise levels 80 dB
Environmental noise levels 105 dB
Vibrations affecting hands/arms <2.5 m/s
