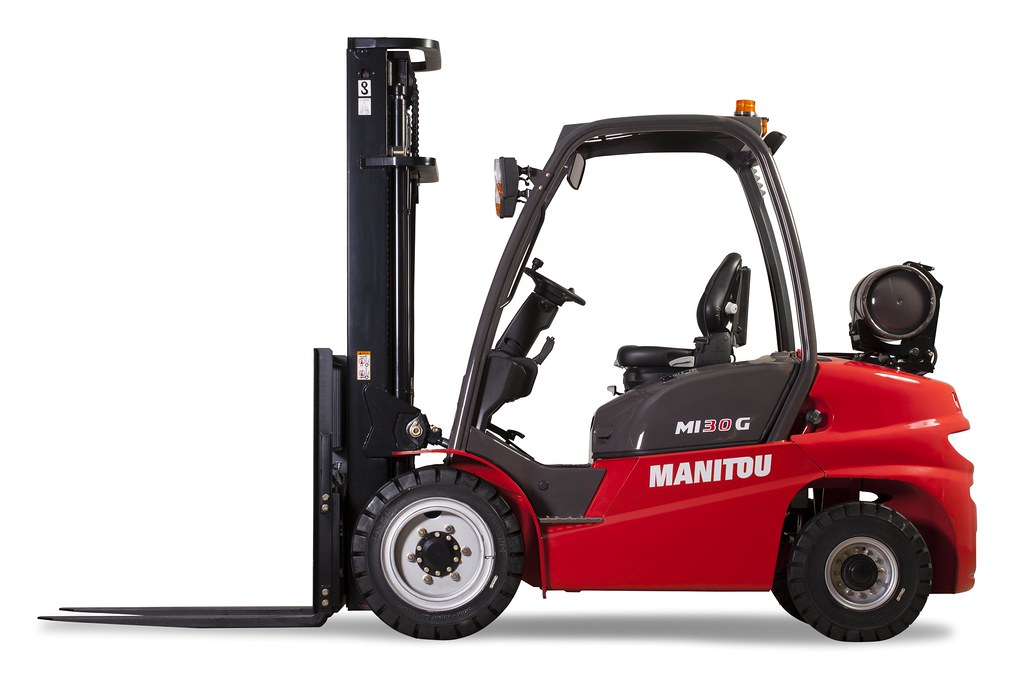

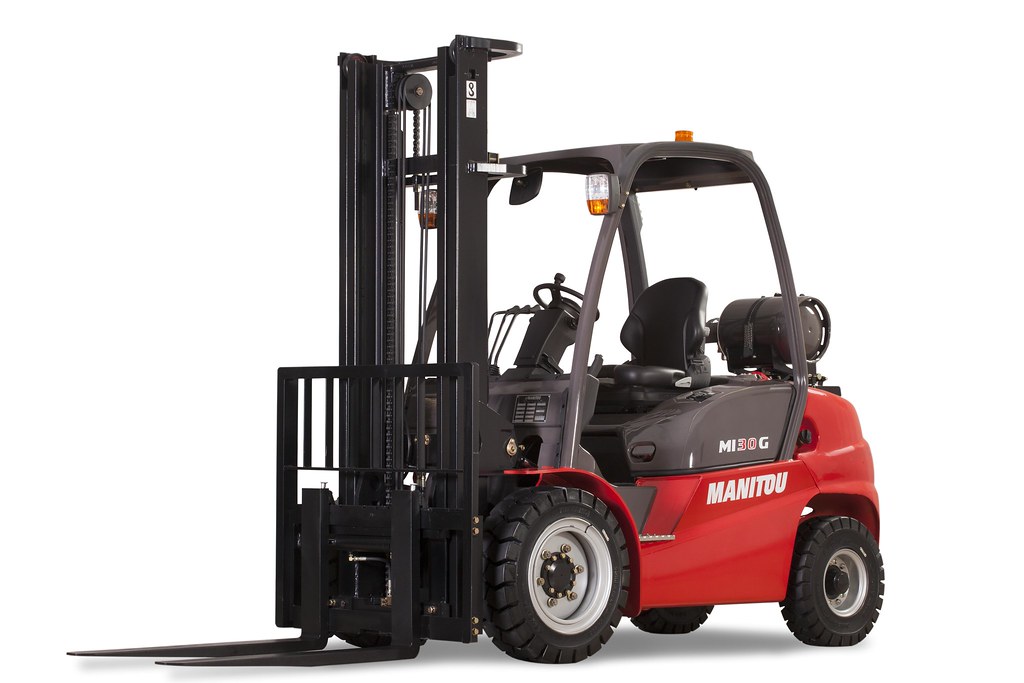

Manitou MI 30 G

Description

The MI 30 G is a heat engine-powered masted forklift designed for intense industrial application both indoors and outdoors, sure to please both forklift operators and fleet managers with its innovative design. Adjustable and accessible controls, optimal visibility and security systems are just the starting point, with ease of maintenance, robustness and reliability included as standard issue as well.

The inching pedal feature provides a smooth and precise approach during maneuvers, for comfort and flexibility on a daily basis, whilst access to the driver’s position is made easier by the low footstep, doors on both sides and a large, sturdy handle grip on the left side.

Condition New
Lifting height 10'10"
Lifting capacity 6600 lb
Drawbar pull
Moving speed 11.16 mph
Mast inclination (front/rear) 6°
Length (up to the back of the fork) 7'3"
Total length (fork included) 12'8"
Wheelbase length 5'7"
Width 4'0"
Fork carriage width 3'7"
Aisle width (with a 1000 x 1200 palette) 13.58
Aisle width (with a 800 x 1200 palette) 14.24
Height 7'3"
Weight (unladen) 9878 lb
Front axle weight (laden) 14432 lb
Front axle weight (unladen) 3971 lb
Rear axle weight (laden) 2046 lb
Rear axle weight (unladen) 5907 lb
Turning radius 8'1"
Ground clearance 0'8"
Energy Gas
Engine brand Nissan
Engine type 3B
Power 35 KW
Number of cylinders 4
Total capacity 2488 cm3
Transmission type Torque converter
Pressure 160 bars
Standard tyres Super-elastic
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/0
Number of steering wheels (front/rear) 0/2
Standard mast type Duplex
Free lift (standard mast, lowered) 0'6"
Standard mast height (when raised) 14'7"
Driving position noise levels 80 dB
