Manitou MHT 790

Description

The MHT 790 high tonnage telehandler is specially designed for heavier, more cumbersome loads. It excels on uneven ground conditions thanks to its 4-wheel drive and steering, generous ground clearance, weight/power ratio and tractive force. Handle loads of up to 9 tonnes with a single hand with the JSM system on muddy or sandy ground with full 360° visibility.

The hydrostatic transmission and engine with controlled fuel consumption give you an effective mix of power and precision when using any of the various compatible attachments available. Easy to maintain, robust and with intuitive controls, this machine is sure to please both buyers and operators.

Condition New
Lifting height 22'5"
Lifting capacity 19800 lb
Max reach 12'2"
Drawbar pull 24515 lbf
Lifting time (unladen) 9.2 s
Lowering time (unladen) 7.8 s
Boom extension time (unladen) 6.6 s
Boom retraction time (unladen) 6.1 s
Crowd 5.3 s
Dump 5.1 s
Length (up to the back of the fork) 17'3"
Total length (fork included) 21'3"
Wheelbase length 9'5"
Width 8'1"
Height 8'2"
Weight (unladen) 29013 lb
Turning radius 18'4"
Ground clearance 1'4"
Energy Diesel

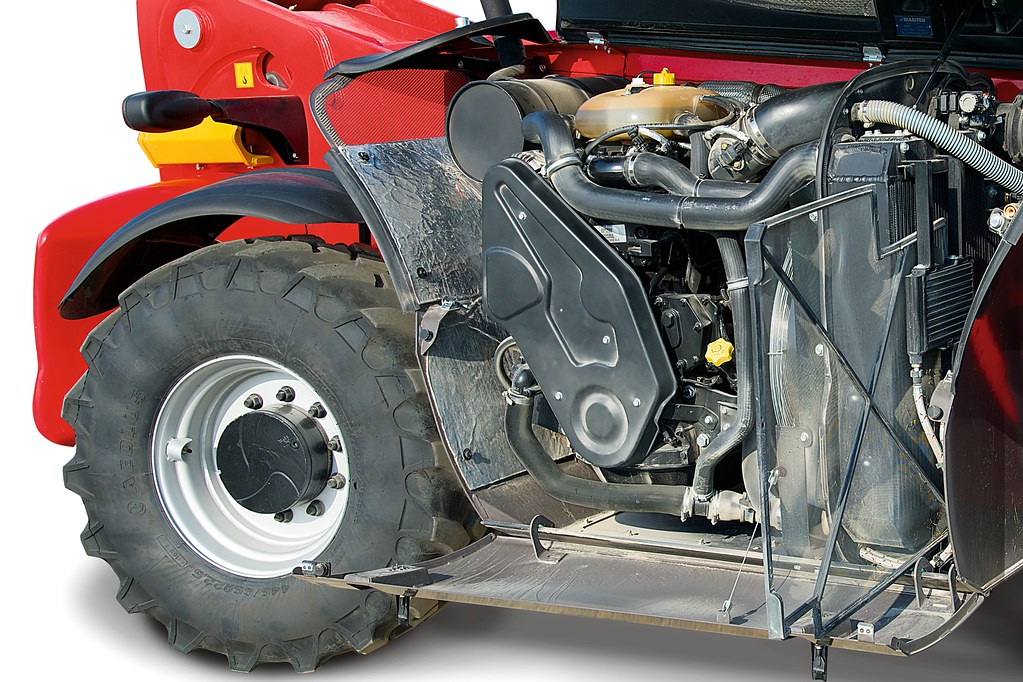

Engine brand John Deere
Engine type Stage IV / Tier 4 Final
Engine manufacturer type 4045PWL
Power 104 KW
Max. Torque @ Rotation 534 Nm
Number of cylinders 4
Total capacity 274.6068 in3
Injection Direct
Cooling Water
Voltage 12 V
Amperage 180 Ah
Transmission type Hydrostatic
Pressure 270 bars
Hydraulic oil tank volume 39.1 gal
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/2
Number of braking wheels (front/rear) 2/2
Tyre dimensions (rear) 445/65 R22.5
Parking brake Automatic negative handbrake
Driving position noise levels 79.7 dB
Environmental noise levels 103 dB
Vibrations affecting hands/arms <2.5 m/s
