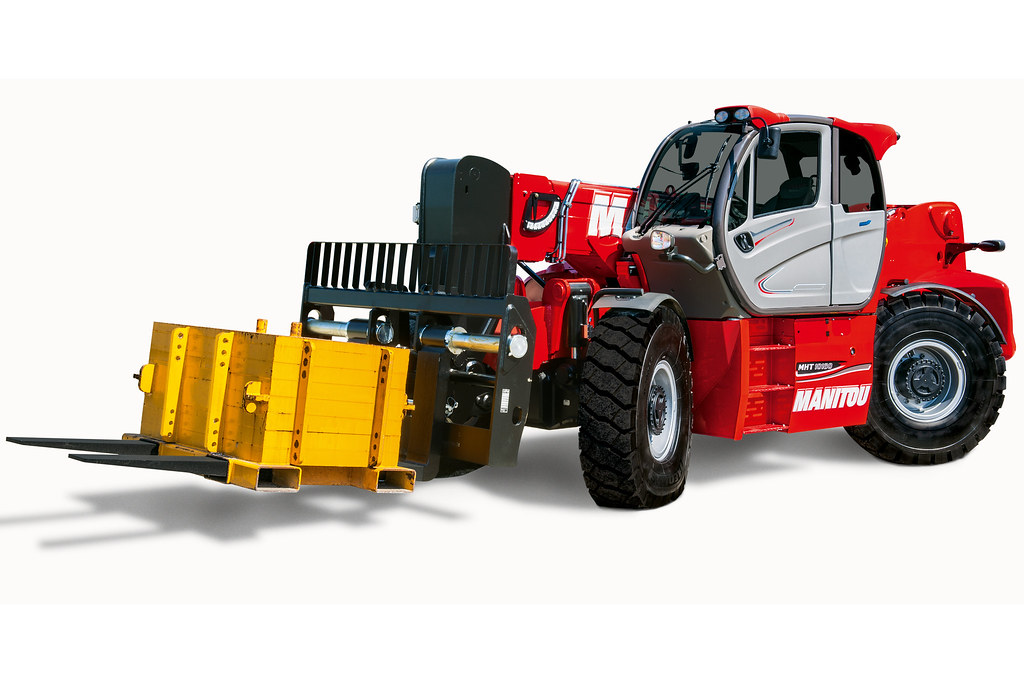

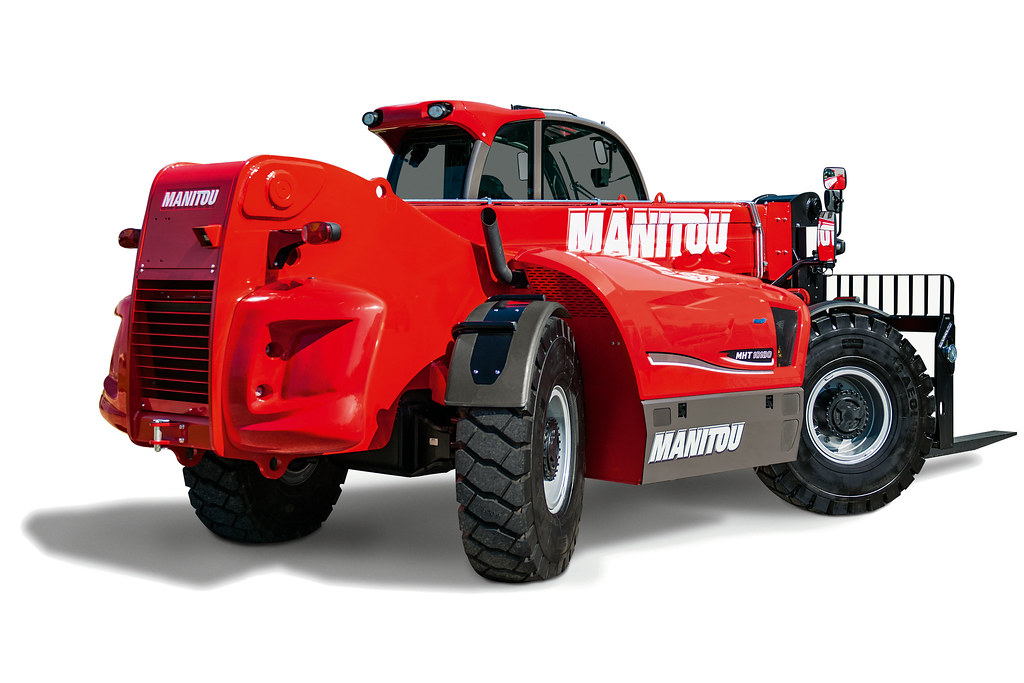

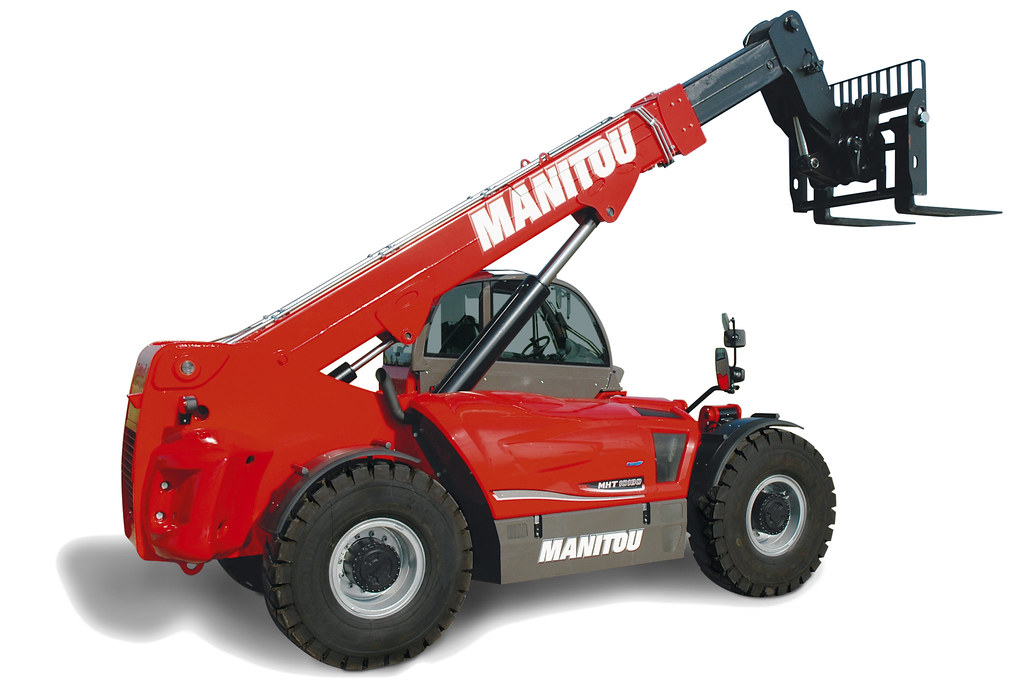

Manitou MHT 10180

Description

The MHT 10180 is designed for heavy duty activity, and with a maximum capacity of 18 tonnes it is perfectly capable of handling bulkier, heavier loads. And for improved precision when approaching loads and maneuvering, this handler comes equipped with a hydrostatic transmission for increased flexibility.

Easily maneuverable thanks to 4-wheel drive, 3 steering modes a very generous ground clearance, there’s no situation this machine can’t get out of. It’s also compatible with a wide range of attachments for amazing versatility and power regardless of what the workday throws at you.

Condition New
Lifting height 31'7"
Lifting capacity 39600 lb
Max reach 18'3"
Drawbar pull 35901 lbf
Moving speed 15.5 mph
Lifting time (unladen) 33 s
Lowering time (unladen) 25 s
Boom extension time (unladen) 13.5 s
Boom retraction time (unladen) 13.4 s
Crowd 7 s
Dump 7 s
Length (up to the back of the fork) 21'10"
Total length (fork included) 26'8"
Wheelbase length 12'4"
Width 8'3"
Height 9'10"
Weight (unladen) 52910 lb
Turning radius 18'0"
Ground clearance 1'5"
Energy Diesel
Engine brand Mercedes
Engine type Stage IV / Tier 4 Final
Engine manufacturer type OM 934 LA. E4-3
Power 129 KW
Max. Torque @ Rotation 750 Nm
Number of cylinders 4
Total capacity 311.2 in3
Injection Direct
Cooling Water
Voltage 24 V
Amperage 120 Ah
Transmission type Hydrostatic
Pressure 350 bars
Hydraulic oil tank volume 76.6 gal
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/2
Number of braking wheels (front/rear) 2/2
Tyre dimensions (front) 16.00 - R 25
Tyre dimensions (rear) 16.00 - R 25
Parking brake Automatic negative handbrake
Driving position noise levels 80 dB
Environmental noise levels 107 dB
Vibrations affecting hands/arms <2.5 m/s
