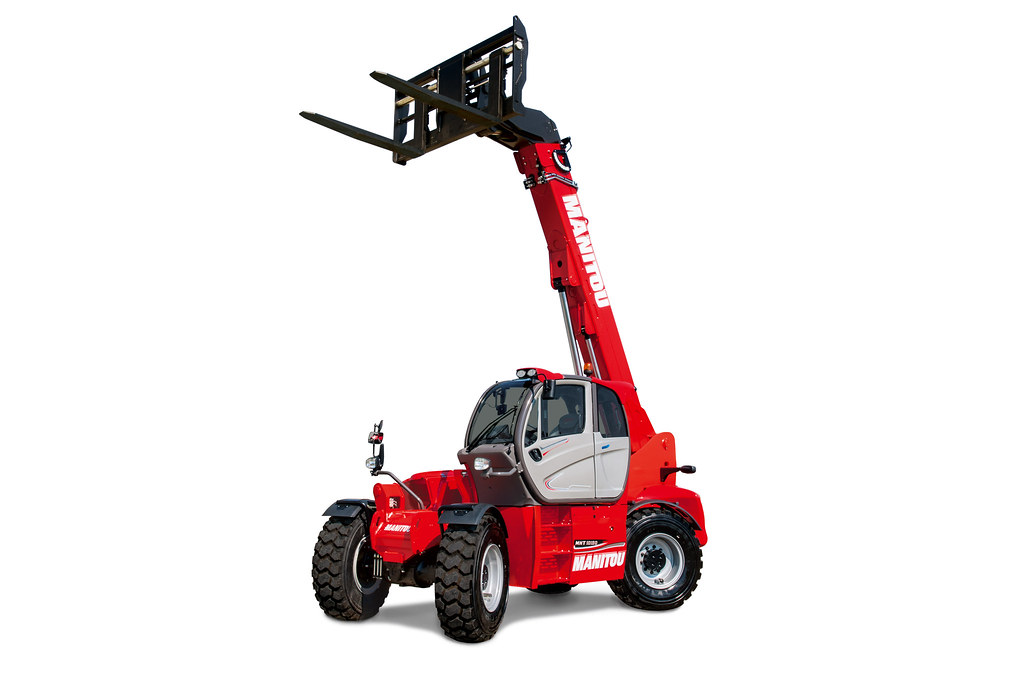

Manitou MHT 10130

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

The MHT 10130 telehandler is ideally suited to safely handling larger, heavy loads loads. Capable of lifting up to 13 tonnes, it is compatible with a wide range of attachments, making it a truly versatile machine. Its 4-wheel drive and 3 steering modes as well as a very generous ground clearance ensure no terrain is too rough to overcome.The 175 hp engine and hydrostatic transmission combine to give you power, smoothness and precision when approaching loads. And the frame leveling system and outriggers provide excellent stability for both the driver as well as ground teams.

Condition New
Lifting height 31'7"
Lifting capacity 28660 lb
Max reach 16'12"
Max reach capacity 7716 lb
Drawbar pull 24279 lbf
Moving speed 19.26 mph
Lifting time (unladen) 15.2 s
Lowering time (unladen) 13.8 s
Boom extension time (unladen) 16.1 s
Boom retraction time (unladen) 10 s
Crowd 6.6 s
Dump 5.3 s
Length (up to the back of the fork) 20'2"
Wheelbase length 11'1"
Width 8'3"
Height 9'10"
Weight (unladen) 40763 lb
Turning radius 17'6"
Ground clearance 1'5"
Energy Diesel
Engine brand Mercedes
Engine type Stage IV / Tier 4 Final
Engine manufacturer type OM 934 LA. E4-3
Power 129 KW
Max. Torque @ Rotation 750 Nm
Number of cylinders 4
Total capacity 311.2 in3
Injection Direct
Cooling Water
Voltage 24 V
Amperage 120 Ah
Transmission type Hydrostatic
Pressure 300 bars
Hydraulic oil tank volume 76.6 gal
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/2
Number of braking wheels (front/rear) 2/2
Tyre dimensions (front) 17.5 R 25
Tyre dimensions (rear) 17.5 R 25
Parking brake Automatic negative handbrake
Driving position noise levels 80 dB
Environmental noise levels 107 dB
Vibrations affecting hands/arms 2.5 m/s

Features

The MHT 10130 telehandler is ideally suited to safely handling larger, heavy loads loads. Capable of lifting up to 13 tonnes, it is compatible with a wide range of attachments, making it a truly versatile machine. Its 4-wheel drive and 3 steering modes as well as a very generous ground clearance ensure no terrain is too rough to overcome.

The 175 hp engine and hydrostatic transmission combine to give you power, smoothness and precision when approaching loads. And the frame leveling system and outriggers provide excellent stability for both the driver as well as ground teams.
