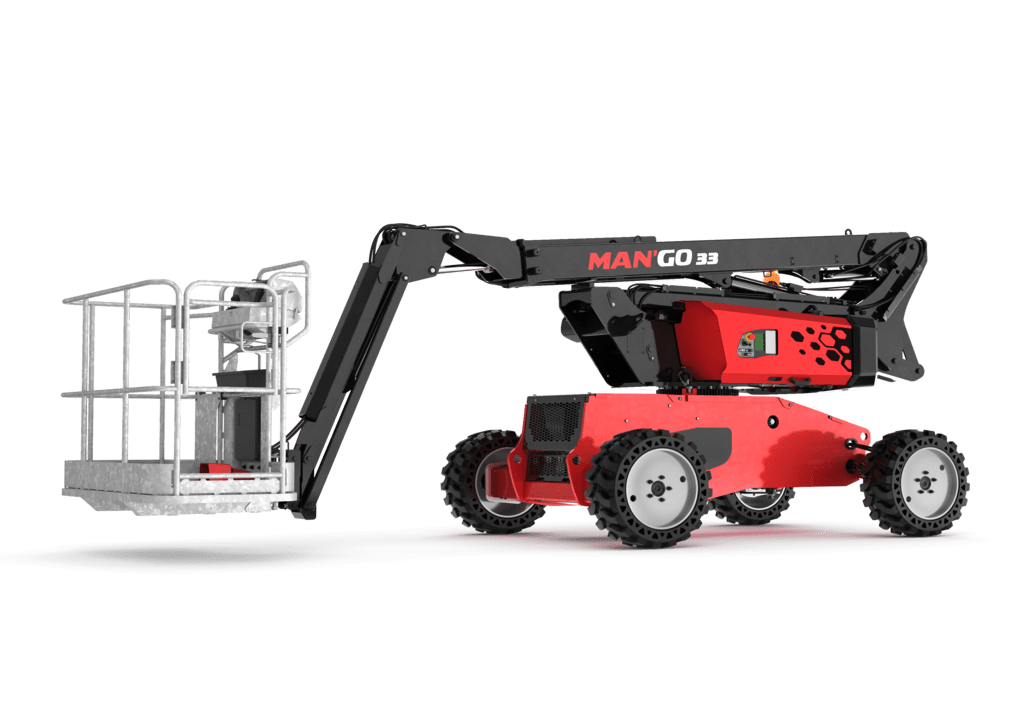

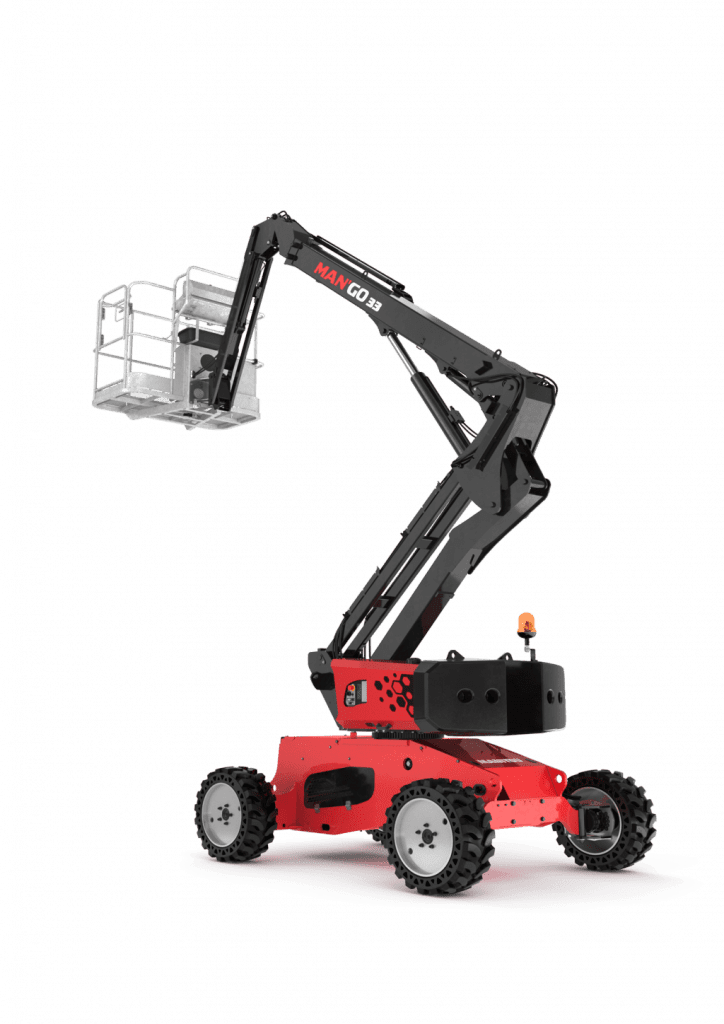

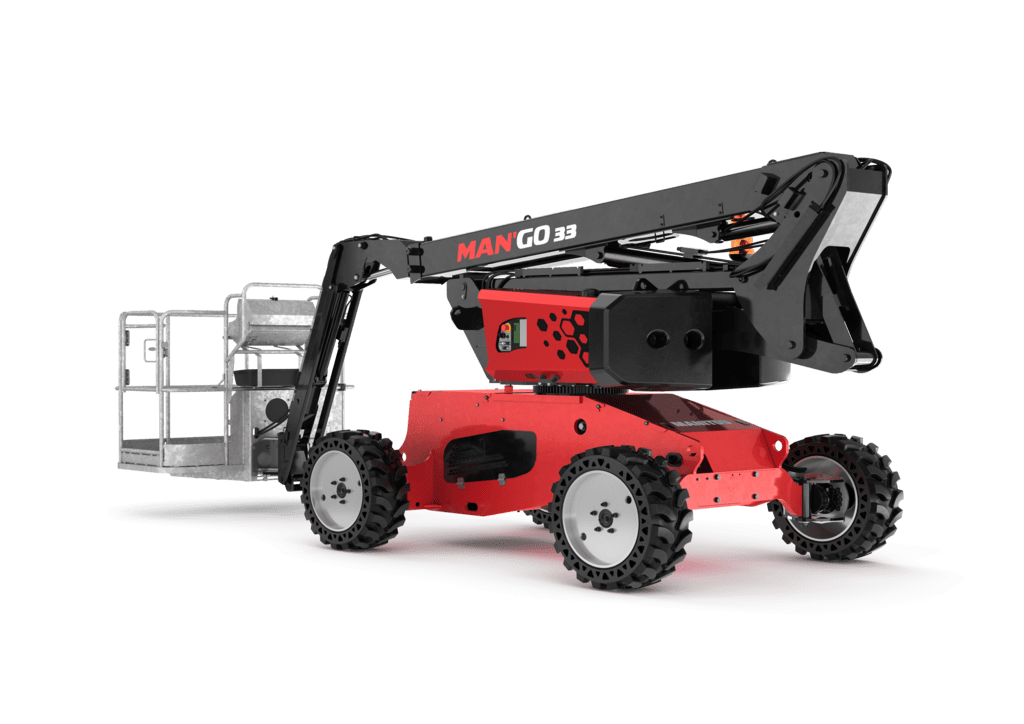

Manitou MAN’GO 33

Description

The MAN’GO 33 is one of the most compact aerial offroad solutions offering by Manitou. Light and handy, this unit helps achieve effective heights, nomatter the space contraints within the jobsite area. The MAN’GO 33 is distinguished by its high compactness, turret rotation of 350 degrees, and its quick lift arms. For your comfort and safety, the MAN’GO 33 is equipped with a galvanized platform. It also works well in all-terrain conditions thanks to its high ground clearnance and ability to operate in 4-wheel drive.

Condition New
Model MAN'GO 33
Working height 39 ft 1 in
Platform height 32 ft 6 in
Max. outreach 21 ft 11 in
Overhang 15 ft 9 in
Pendular arm rotation (bottom) +-70 °
Platform capacity 500 lb
Turret rotation 350 °
Platform rotation (right / left) 70 ° / 66 °
Number of people (inside / outside) 2 / 2
