Manitou M 70-2 H

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

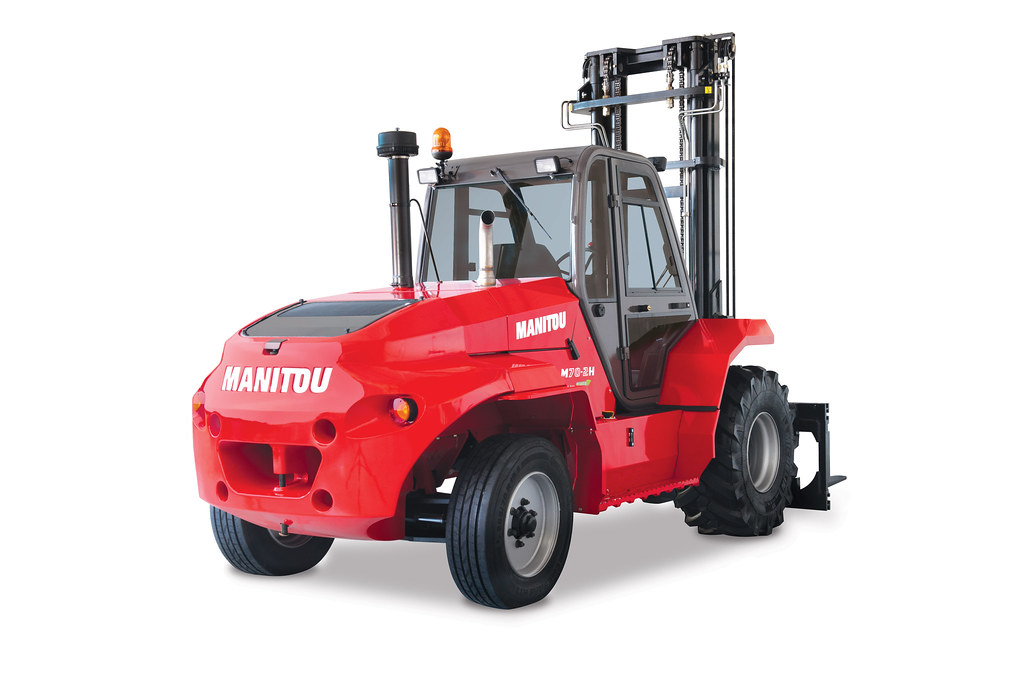

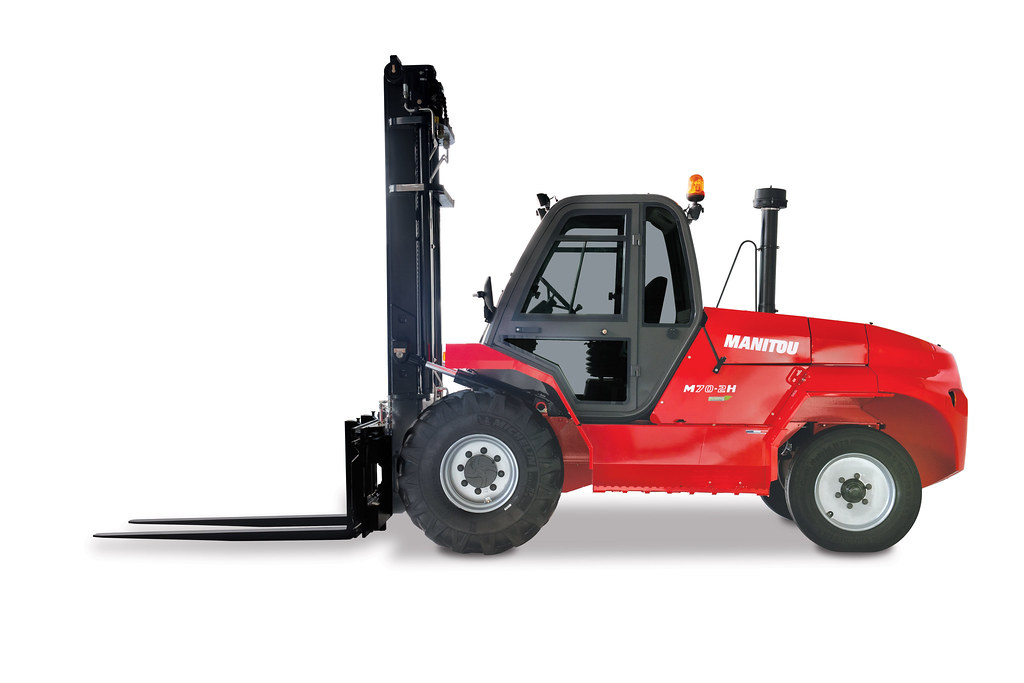

The M 70-2 H with its panoramic cabin, ergonomic levers and load shock absorber is easy to use in its preferred field: off-roading! Its engine, crossing capacity and hydrostatic transmission guarantee this forklift truck increased productivity on all terrains. The M 70-2 H offers 7000 kg rated capacity even on the most uneven ground.

Condition

New

Lifting height	13'1"
Lifting capacity	15432 lb
Drawbar pull	18120 lbf
Moving speed	6.83 mph
Mast inclination (front/rear)	15°
Length (up to the back of the fork)	13'11"
Total length (fork included)	18'10"
Wheelbase length	8'2"
Width	7'1"
Fork carriage width	5'11"
Aisle width (with a 1000 x 1200 palette)	22
Aisle width (with a 800 x 1200 palette)	22
Height	11'0"
Weight (unladen)	21782 lb
Front axle weight (laden)	32968 lb
Front axle weight (unladen)	8907 lb
Rear axle weight (laden)	4246.1 lb
Rear axle weight (unladen)	12875 lb
Turning radius	13'11"
Ground clearance	1'5"
Energy	Diesel
Engine brand	Deutz
Engine type	3B / Tier IV Final
Engine manufacturer type	TD 3.6
Power	55.4 KW
Max. Torque @ Rotation	330 Nm
Number of cylinders	4
Total capacity	220.88 in3
Injection	Direct
Cooling	Water
Transmission type	Hydrostatic
Pressure	230 bars
Hydraulic oil tank volume	18.22 gal
Standard tyres	Pneumatic
Number of wheels (front/rear)	2/2
Number of drive wheels (front/rear)	0/0
Number of steering wheels (front/rear)	0/0
Standard mast type	Duplex
Free lift (standard mast, lowered)	0'0"
Standard mast height (when raised)	17'8"
Driving position noise levels	78 dB
Environmental noise levels	104 dB
Vibrations affecting hands/arms	2.5 m/s

Features

The M 70-2 H allows ease of use in your field of choice thanks to its panoramic cabin, ergonomic levers and Shock Absorber technology. This forklift’s engine, crossing capacity and exceptional characteristics ensure higher productivity on any terrain.
