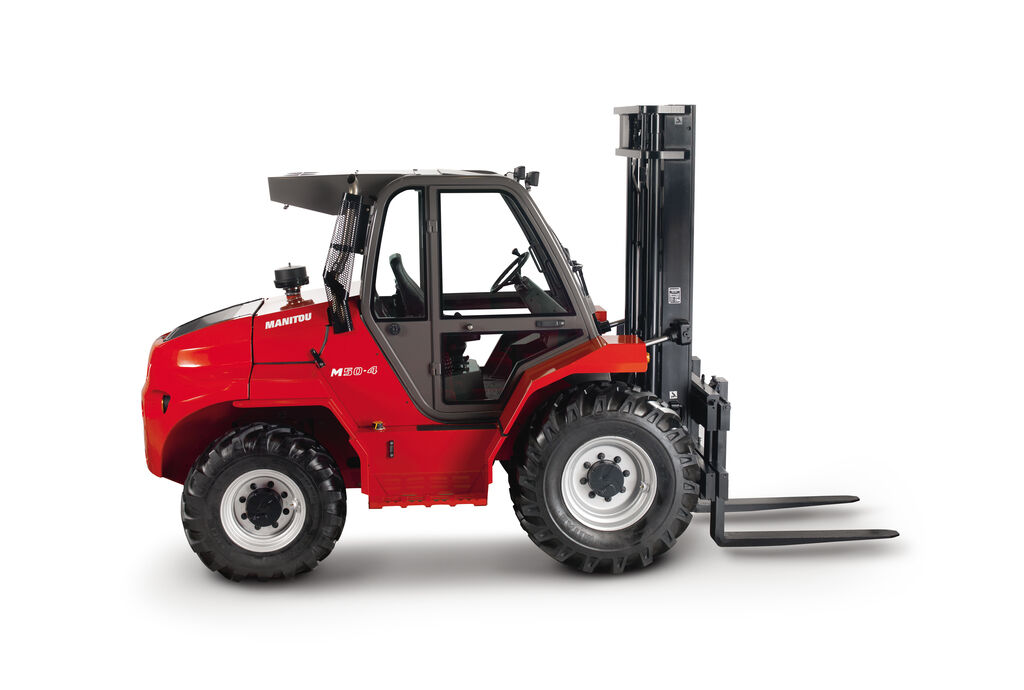

Manitou M 50-4

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

The M 50-4 forklift truck is designed for activities which need to be performed on rough terrain or where obstacles are present. With 4-wheel drive, 36 cm ground clearance and a turning radius of 3.4 m, this machine offers excellent manoeuvrability regardless of the circumstances. And for even better adaptation to the various types terrain faced, a wide range of tyres is available for optimal performance.The driver’s cab is accessible from both sides and offers a spacious working area with ergonomic controls. And with full 360° surround view, ground team safety is enhanced as well.

Condition New
Lifting height 12'2"
Lifting capacity 11000 lb
Drawbar pull 22931 lbf
Moving speed 6.2 mph
Mast inclination (front/rear) 15°
Length (up to the back of the fork) 12'5"
Total length (fork included) 16'4"
Wheelbase length 6'1"
Width 6'1"
Fork carriage width 5'7"
Aisle width (with a 1000 x 1200 palette) 22.4
Aisle width (with a 800 x 1200 palette) 22.4
Height 9'8"
Weight (unladen) 18353 lb
Front axle weight (laden) 25344 lb
Front axle weight (unladen) 7242 lb
Rear axle weight (laden) 3979 lb
Rear axle weight (unladen) 11111 lb
Turning radius 15'4"
Ground clearance 1'4"
Energy Diesel
Engine brand Perkins
Engine type Stage 3B
Engine manufacturer type 854F-E34T WF
Power 55 KW
Max. Torque @ Rotation 318 Nm
Number of cylinders 4
Total capacity 207.4 in3
Injection Direct
Cooling Water
Transmission type Torque converter
Pressure 230 bars
Hydraulic oil tank volume 21 gal
Standard tyres Pneumatic
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 0/2
Standard mast type Duplex
Standard mast height (when raised) 15'11"
Driving position noise levels 76 dB
Environmental noise levels 104 dB
Vibrations affecting hands/arms 2.5 m/s

Features

The M 50-4 forklift truck is designed for activities which need to be performed on rough terrain or where obstacles are present. With 4-wheel drive, 36 cm ground clearance and a turning radius of 3.4 m, this machine offers excellent manoeuvrability regardless of the circumstances. And for even better adaptation to the various types terrain faced, a wide range of tyres is available for optimal performance.

The driver’s cab is accessible from both sides and offers a spacious working area with ergonomic controls. And with full 360° surround view, ground team safety is enhanced as well.
