Manitou M 40-2 H

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

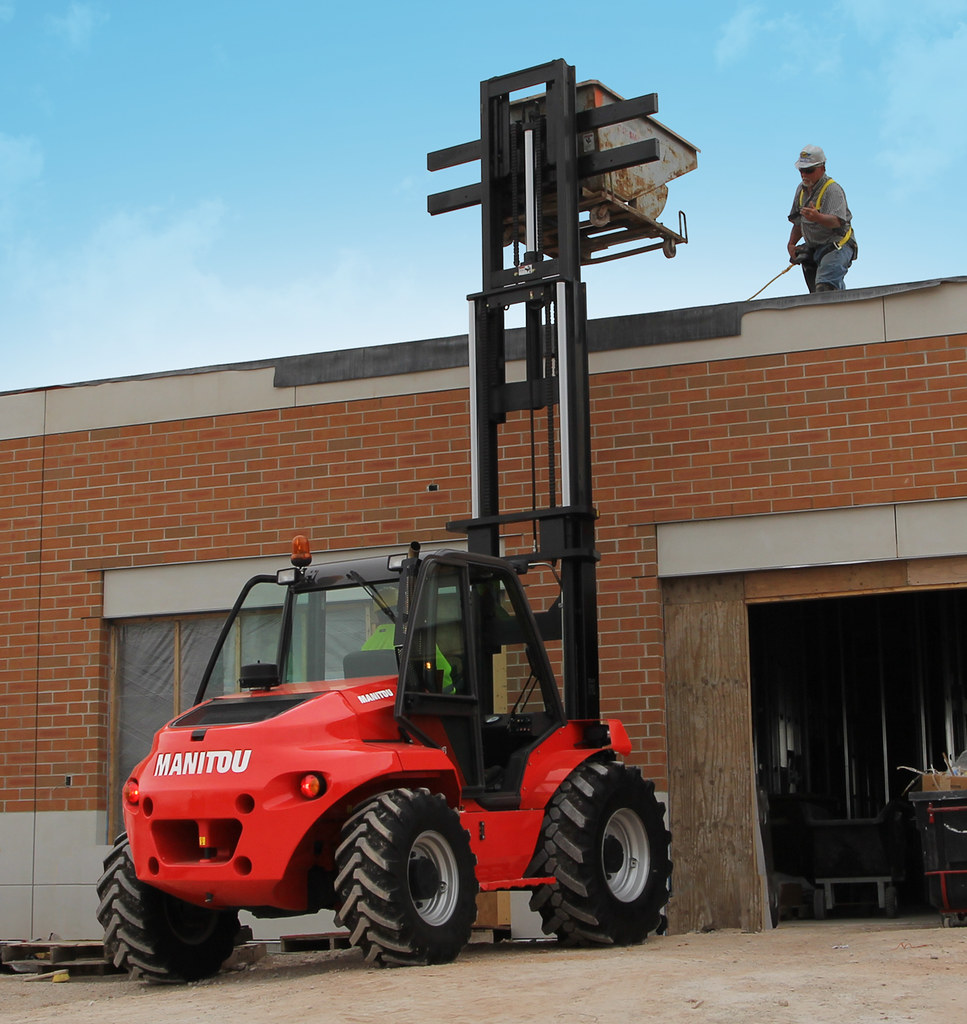

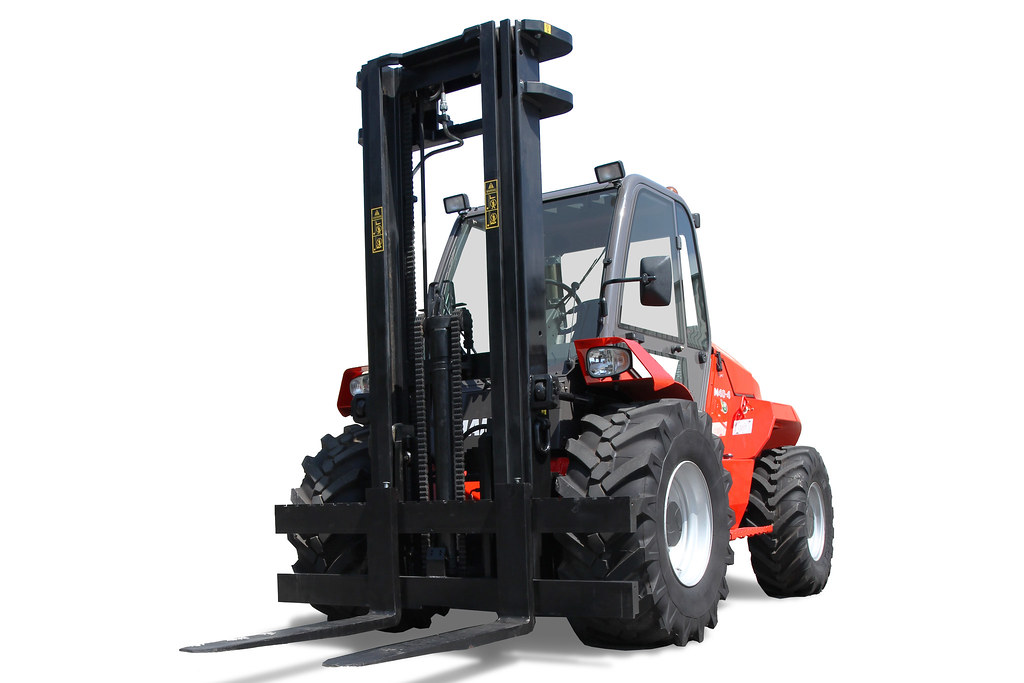

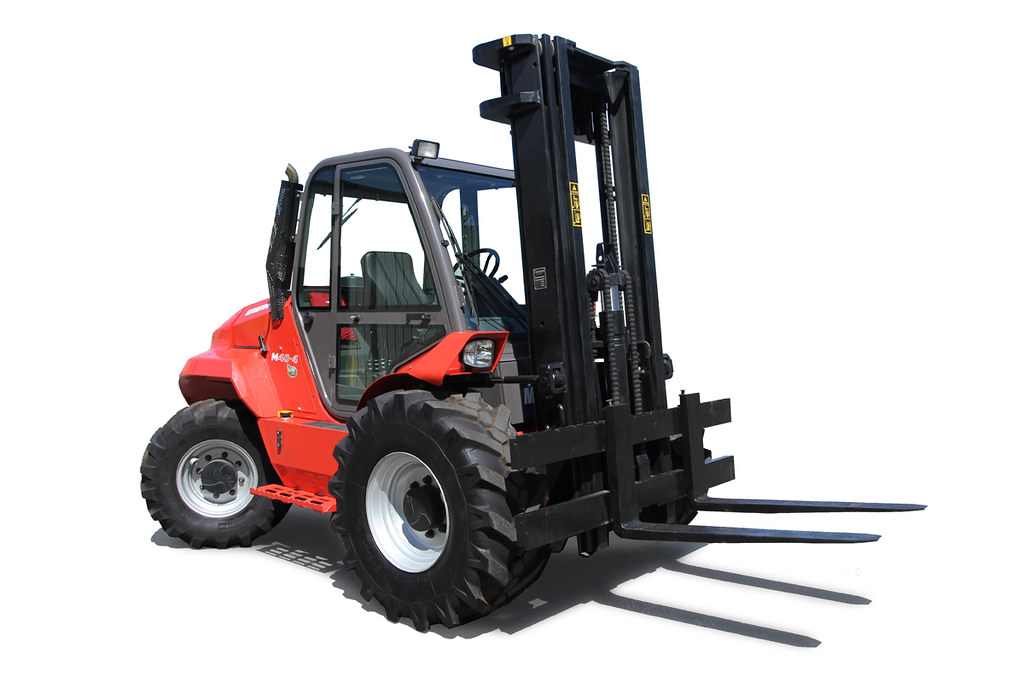

The M 40-2 H is designed for the construction and timber industries, quarries or any other sector requiring an all-terrain forklift truck. It has a 4 tonne maximum lifting capacity running off of a 75 hp engine. Ground clearance stands at 36 cm with 2-wheel drive for good manoeuvrability and stability, regardless of the terrain underneath.The hydrostatic transmission ensures optimum flexibility during manoeuvring and approaches, which translates to better on-site productivity. And to better adapt to the various ground conditions it comes up against, a wide range of tyres are available for the M 40-2 H to ensure maximum performance, regardless of the circumstances.

Condition New
Lifting height 12'2"
Lifting capacity 8800 lb
Drawbar pull 16658 lbf
Moving speed 6.2 mph
Mast inclination (front/rear) 15°
Length (up to the back of the fork) 12'0"
Total length (fork included) 15'1"
Wheelbase length 6'11"
Width 6'11"
Fork carriage width 5'7"
Aisle width (with a 1000 x 1200 palette) 18.3
Aisle width (with a 800 x 1200 palette) 18.3
Height 8'0"
Weight (unladen) 15245 lb
Front axle weight (laden) 20007 lb
Front axle weight (unladen) 5787 lb
Rear axle weight (laden) 4057 lb
Rear axle weight (unladen) 9458 lb
Turning radius 11'2"
Ground clearance 1'0"
Energy Diesel
Engine brand Perkins
Engine type Stage 3B
Engine manufacturer type 854F-E34T
Power 55 KW
Max. Torque @ Rotation 318 Nm
Number of cylinders 4
Total capacity 207.4 in3
Injection Direct
Cooling Water
Transmission type Hydrostatic
Pressure 210 bars
Hydraulic oil tank volume 21 gal
Standard tyres Pneumatic
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/0
Number of steering wheels (front/rear) 0/2
Standard mast type Duplex
Driving position noise levels 76 dB
Environmental noise levels 104 dB
Vibrations affecting hands/arms 2.5 m/s

Features

The M 40-2 H is designed for the construction and timber industries, quarries or any other sector requiring an all-terrain forklift truck. It has a 4 tonne maximum lifting capacity running off of a 75 hp engine. Ground clearance stands at 36 cm with 2-wheel drive for good manoeuvrability and stability, regardless of the terrain underneath.

The hydrostatic transmission ensures optimum flexibility during manoeuvring and approaches, which translates to better on-site productivity. And to better adapt to the various ground conditions it comes up against, a wide range of tyres are available for the M 40-2 H to ensure maximum performance, regardless of the circumstances.
