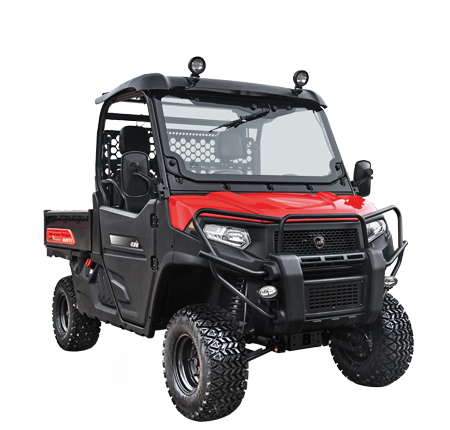

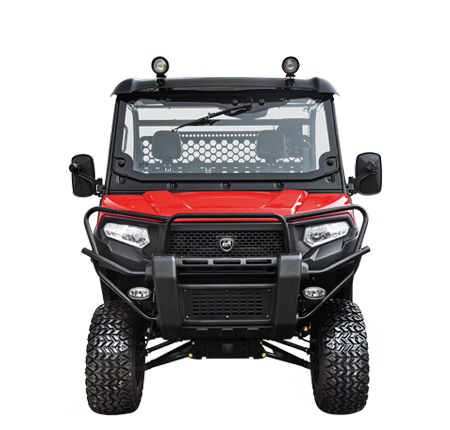

Kioti UTV K9 2400

Description

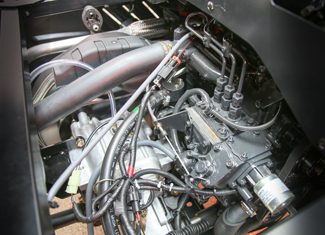

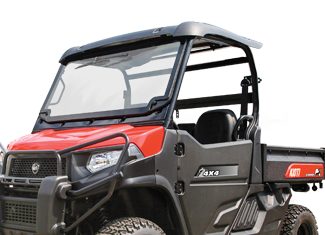

The new KIOTI K9 UTV.  A Landowners Best Friend. Fully-Featured, Tough, and Reliable Companion. The K9 offers contemporary styling, enhanced ergonomics and an abundance of storage. With a 24 horsepower, 3 cylinder, in-line vertical, water-cooled Daedong diesel engine with a ground speed up to 31 mph, landowners will rejoice. *Payload capacity includes passengers.

Engine Gross Power: 24 hp (17.89 kW)
PTO Type: N/A

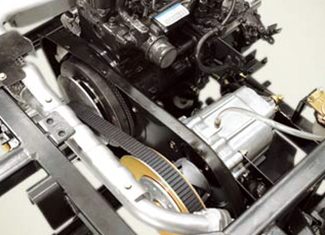

Transmission Type: Belt Driven CVT
Shuttle: N/A

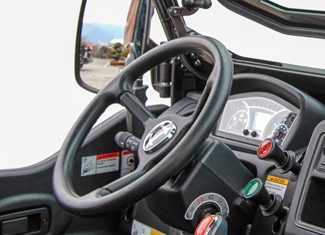

  • Hydraulic Power Steering
  • 4WD
  • 12.5” ground clearance
  • 1,598 lbs. payload capacity

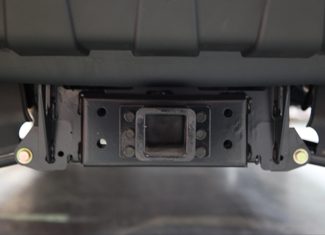

  • 1,300 lbs. towing capacity

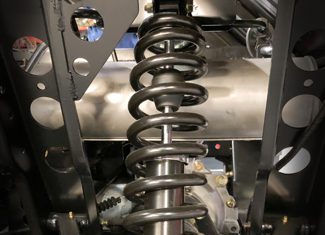

  • Independent wishbone type front and rear suspension

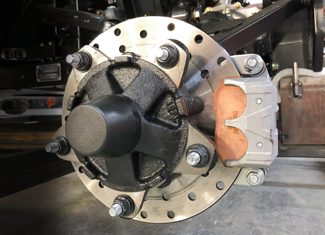

  • Four wheel hydraulic disc brakes
ConditionNew
ModelK9 2400
Engine
Engine Model3C100LFU-U2
Engine Type4-Cycle Diesel, 3 Cyl., In-line Vertical, Water-Cooled
Engine Gross24 hp (17.89 kW)
Displacement61.45 cu. in. (1,007 cc)
Rated Revolution3,000 rpm
Fuel Tank Capacity9.7 gal. (37 ℓ)
Drive Train
TypeBelt CVT
Gear RangeLow, High, Neutral, Reverse
Ground Speed0-31 mph (0-50 km/h)
BrakeFront/Rear Hydraulic Disc
Suspension
Front SuspensionIndependent, Double A-Arm (Wishbone Type)
Rear SuspensionIndependent, Double A-Arm (Wishbone Type)
Steering
TypeHydraulic Power
Dimensions
Length119.8 in. (3,045 mm)
Width62.5 in. (1,590 mm)
Height76.7 in. (1,950 mm)
Max Front Wheel Tread49.7 in. (1,262 mm)
Max Rear Wheel Tread49.8 in. (1,264 mm)
Wheelbase85.8 in. (2,180 mm)
Weight2,050 lbs. (930 kg)
Ground Clearance12.5 in. (318 mm)
Towing Capacity1,300 lbs. (590 kg)
Payload Capacity1,598 lbs. (725 kg)
Turning Radius14.1 ft. (4.3 m)

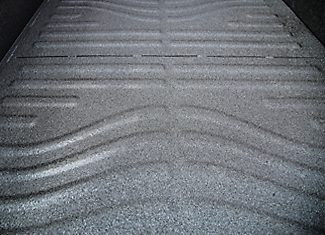

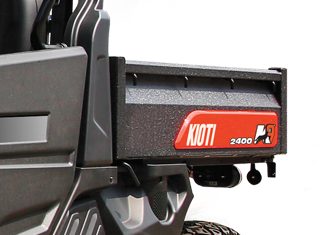

Cargo Bed
Length x Width x Depth43.7 x 58.2 x 11.5 in. (1,110 x 1,480 x 293 mm)
Bed Capacity1,102 lbs. (500 kg)

Features
