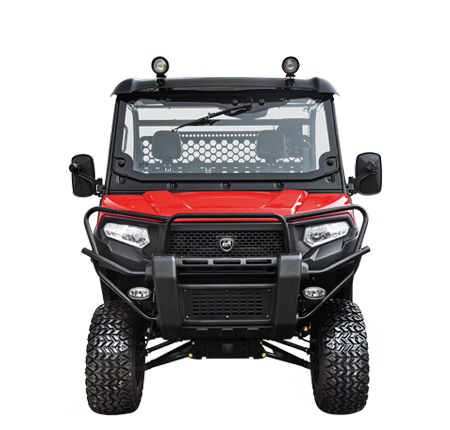

Kioti UTV K9 2400

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

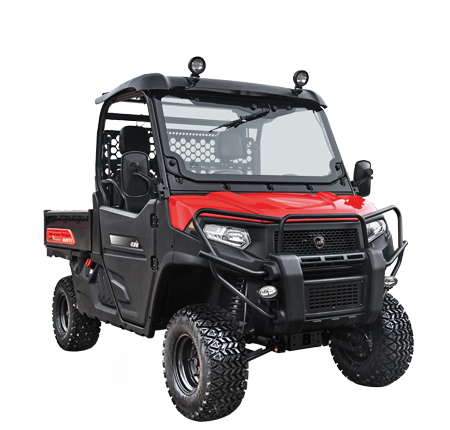

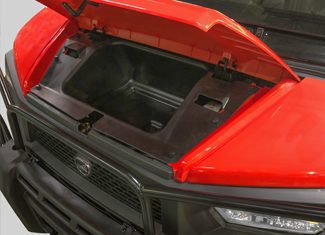

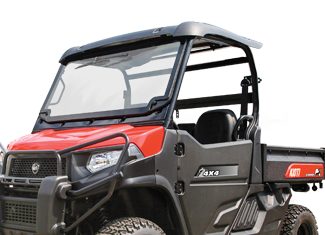

The new KIOTI K9 UTV.  A Landowners Best Friend. Fully-Featured, Tough, and Reliable Companion. The K9 offers contemporary styling, enhanced ergonomics and an abundance of storage. With a 24 horsepower, 3 cylinder, in-line vertical, water-cooled Daedong diesel engine with a ground speed up to 31 mph, landowners will rejoice. *Payload capacity includes passengers.

Engine Gross Power: 24 hp (17.89 kW)
PTO Type: N/A
Transmission Type: Belt Driven CVT
Shuttle: N/A

  • Hydraulic Power Steering
  • 4WD
  • 12.5” ground clearance
  • 1,598 lbs. payload capacity

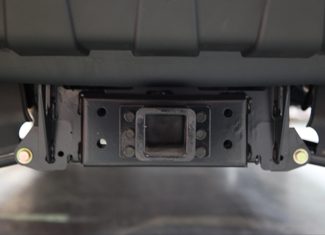

  • 1,300 lbs. towing capacity

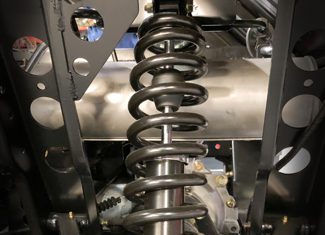

  • Independent wishbone type front and rear suspension

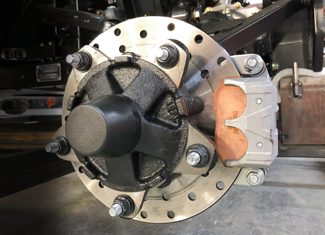

  • Four wheel hydraulic disc brakes
Condition New
Model K9 2400
Engine
Engine Model 3C100LFU-U2

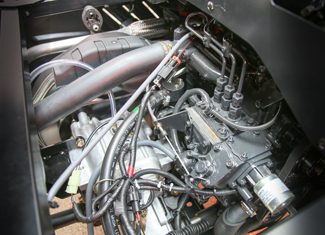

Engine Type 4-Cycle Diesel, 3 Cyl., In-line Vertical, Water-Cooled
Engine Gross 24 hp (17.89 kW)
Displacement 61.45 cu. in. (1,007 cc)
Rated Revolution 3,000 rpm
Fuel Tank Capacity 9.7 gal. (37 ℓ)
Drive Train

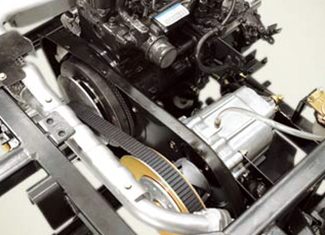

Type Belt CVT
Gear Range Low, High, Neutral, Reverse
Ground Speed 0-31 mph (0-50 km/h)
Brake Front/Rear Hydraulic Disc
Suspension
Front Suspension Independent, Double A-Arm (Wishbone Type)
Rear Suspension Independent, Double A-Arm (Wishbone Type)
Steering

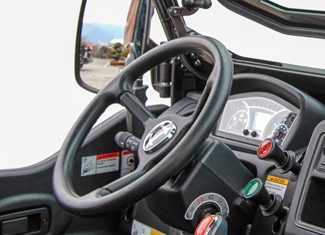

Type Hydraulic Power
Dimensions
Length 119.8 in. (3,045 mm)
Width 62.5 in. (1,590 mm)
Height 76.7 in. (1,950 mm)
Max Front Wheel Tread 49.7 in. (1,262 mm)
Max Rear Wheel Tread 49.8 in. (1,264 mm)
Wheelbase 85.8 in. (2,180 mm)
Weight 2,050 lbs. (930 kg)
Ground Clearance 12.5 in. (318 mm)
Towing Capacity 1,300 lbs. (590 kg)
Payload Capacity 1,598 lbs. (725 kg)
Turning Radius 14.1 ft. (4.3 m)

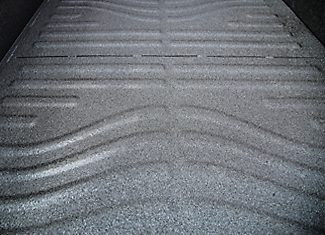

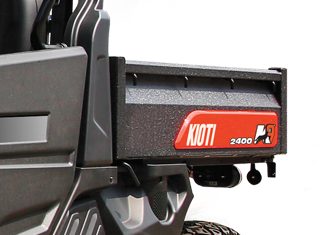

Cargo Bed
Length x Width x Depth 43.7 x 58.2 x 11.5 in. (1,110 x 1,480 x 293 mm)
Bed Capacity 1,102 lbs. (500 kg)

Features
