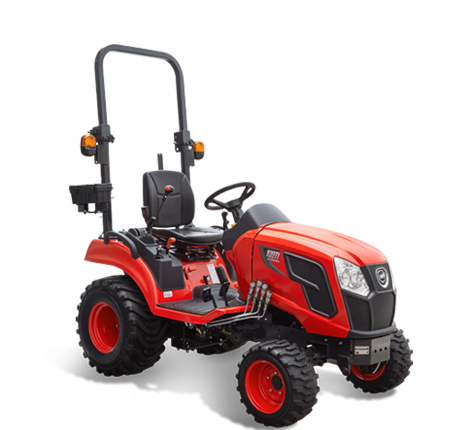

Kioti CS2220 tractor

Description

  • Premium, water-cooled diesel engine
  • Rear differential lock
  • Ergonomic operator work station with tilt steering wheel

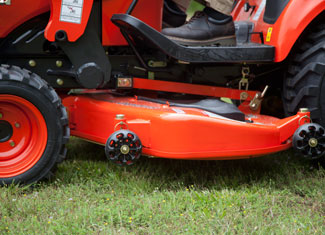

  • Mid PTO

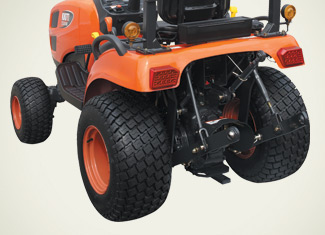

  • Rear PTO and Category I three-point hitch

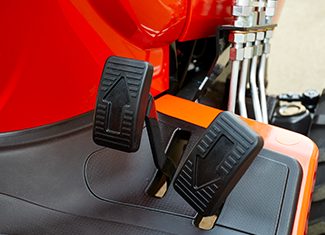

  • Twin HST Pedals for effortless forward/reverse movement
  • Joystick Valve
ConditionNew
ModelCS2220
Engine
Engine Model3C100LWH-U3
Engine Gross Power21 hp (15.6 kW)
Rated Speed3,200 rpm
No. of Cylinders3
Fuel TypeDiesel
Displacement61.5 cu. in (1,007 cc)
Fuel Tank Capacity6.7 gal. (25.5 L)
Transmission
Transmission TypeHydrostatic
Main GearHydrostatic
No. of Travel Speeds - Forward / ReverseInfinite, 2 Range
Min. Travel Speed of Forward w/ Ag @ Engine rated speed0 mph (0 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed9.57 mph (15.4 km/h)
Power Take-Off
PTO Type TransIndependent
PTO Power16.3 hp (12.2 kW)
Rear PTO Speeds(1st)540 rpm
Mid PTO Speeds2,200 rpm
Brakes and Clutch
BrakesWet Multi Disc
Dimensions w/ AG Tire
Length w/ 3-point hitch99.3 in. (2,523 mm)
Width45.9 in. (1,168 mm)
From Top of the Highest Point88 in. (2,226 mm)
Wheelbase55.1 in. (1,400 mm)
Ground Clearance6.4 in. (162 mm)
Front Tread Ag Tires - Min44.6 in. (1,133 mm)
Rear Tread Ag Tires - Min46 in. (1,168 mm)
Hydraulics
Total Pump Flow6.97 gpm (26.4 L/min)
3-Point Hitch
Standard CategoryCategory 1
Maximum Lifting Capacity (24”aft. of hitch)700 lbs. (318 kg)
Control TypePosition
Weight
Weight w/ Ag Tires w/ ROPS1,554 lbs. (705 kg)

Features

Premium Diesel Engine

A 21 hp (15.6 kW) optimized combustion diesel engine has large power output, yet low fuel consumption. Fluid service and inspection locations are easily accessible to the operator.

Headlights

55W lamps are the brightest in this tractor’s class.
