Description
- Premium, water-cooled diesel engine
- Rear differential lock
- Ergonomic operator work station
- Mid PTO
- Rear PTO and Category I three-point hitch
- Twin HST Pedals for effortless forward/reverse movement
| Condition | New |
| Model | CS2210 |
Kioti Kioti CS2210 subcompact tractor
| Engine Model | 3C100LWH-U3 |
| Engine Gross Power | 21 hp (15.6 kW) |
| Rated Speed | 3,000 rpm |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Displacement | 61.5 cu. in. (1,007 cc) |
| Fuel Tank Capacity | 6.7 gal. (25.5 L) |
| Transmission Type | Hydrostatic |
| Main Gear | Hydrostatic |
| No. of Travel Speeds - Forward / Reverse | Infinite, 2 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 10.31 mph (16.6 km/h) |
| PTO Type Trans | Independent |
| PTO Power | 16.3 hp (12.2 kW) |
| Rear PTO Speeds(1st) | 540 rpm |
| Mid PTO Speeds | 2,200 rpm |
| Brakes | Wet Multi Disc |
| Length w/ 3-point hitch | 99.3 in. (2,523 mm) |
| Width | 46.7 in. (1,185 mm) |
| From Top of the Highest Point | 88 in. (2,226 mm) |
| Wheelbase | 55.1 in. (1,400 mm) |
| Ground Clearance | 6.4 in. (162 mm) |
| Front Tread Ag Tires - Min | 45.3 in. (1,150 mm) |
| Rear Tread Ag Tires - Min | 46.7 in. (1,185 mm) |
| Total Pump Flow | 6.5 gpm (24.6 L/min) |
| Power Steering Pump Capacity | Hydrostatic |
| Standard Category (Optional Category) | Cat. 1 |
| Maximum lifting capacity (24”aft. of hitch) | 700 lbs. (318 kg) |
| Control Type | Position |
| Weight w/ Ag Tires w/ ROPS | 1,485 lbs. (675 kg) |
Features
Premium Diesel Engine
A 21 hp (15.6 kW) optimized combustion diesel engine has large power output, yet low fuel consumption. Fluid service and inspection locations are easily accessible to the operator.
Headlights
55W lamps are the brightest in this tractor’s class.
Foldable ROPS
The standard fold-down roll bar allows you to move into low clearance areas quickly and easily.

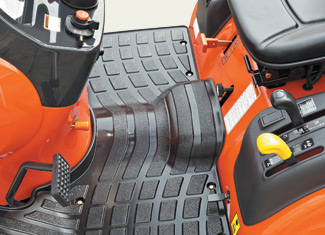

Control Levers
The HST with HI-LO range lever allows the tractor to overcome a wide range of load tasks. The rear PTO and mid PTO can be controlled separately or together with a simple in-line shifting lever. The height adjustment lever allows the operator to easily control the mid-mount mower grass cutting height.

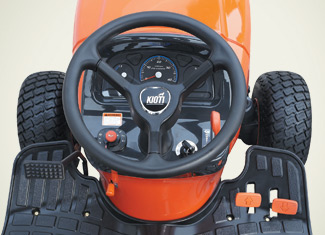

Ergonomic Operator Station
The ergonomically designed workstation places operator controls within easy reach for maximum comfort.
Four Wheel Drive
Single-lever engaged 4WD is standard on the CS2210 tractor.

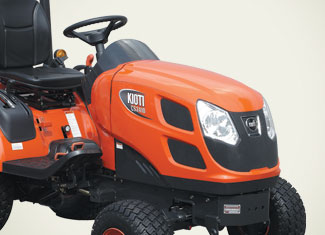

Distinctive Hood Design
The streamlined hood design improves the visibility for the operator. A vertical opening hood allows for easy access to the air filter, fluid service and inspection locations fuse box and electrical components.

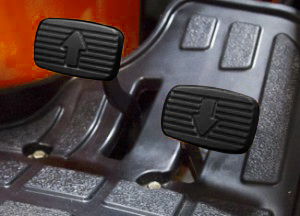

Twin HST Pedals
Twin HST pedals offer easy forward and reverse movement with smooth engagement, acceleration and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use.
Rear PTO and 3-Point Hitch
The rear PTO and high capacity three-point hitch can accommodate a variety of implements and attachments. The flip up PTO guard ensures easy implement attachment. The bent lower link assists with easy implement installation.
Mid PTO
The standard mid PTO (2,200 rpm) allows you to use implements such as a mid-mount mower.
Illuminated Dashboard
The dashboard illuminates when the engine is started. The digital gauge package includes tachometer, fuel and temperature gauges along with a low fuel warning lamp.
