HS1100

Description

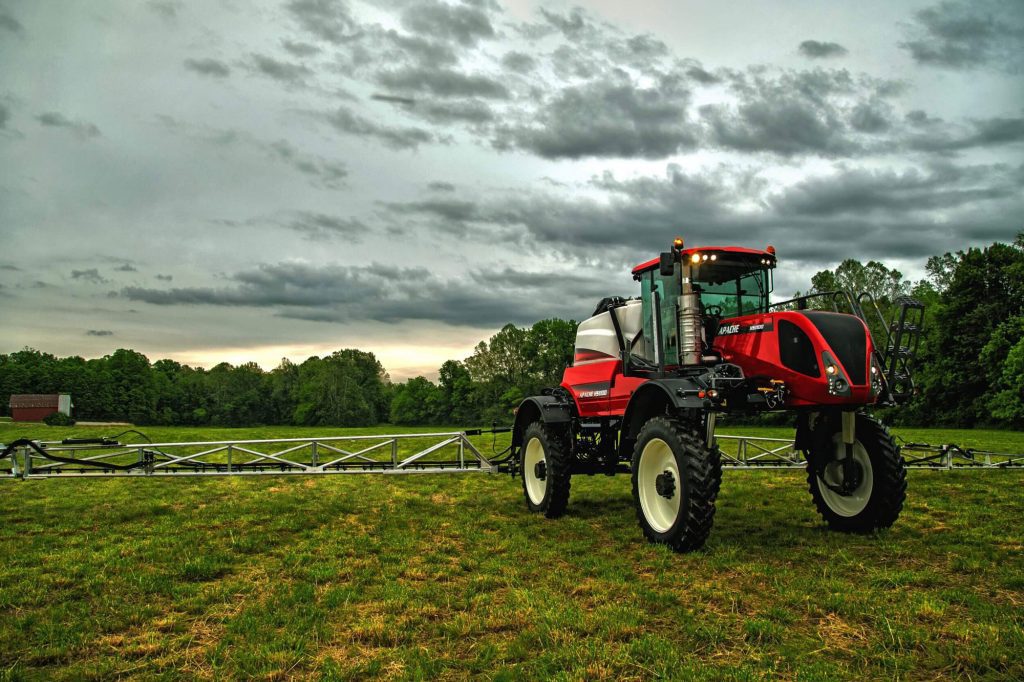

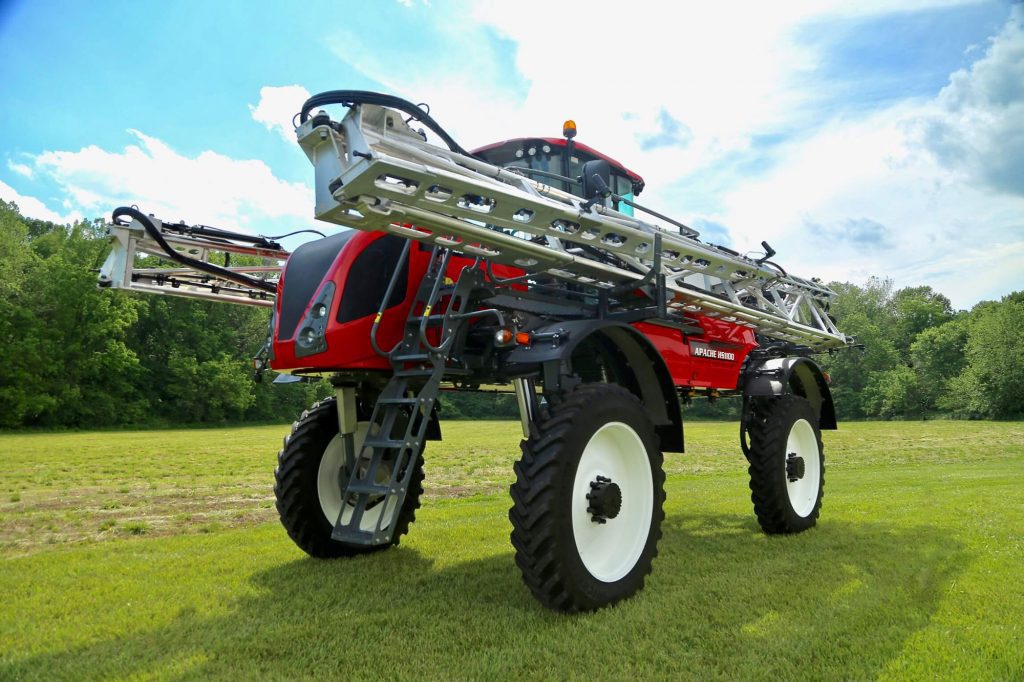

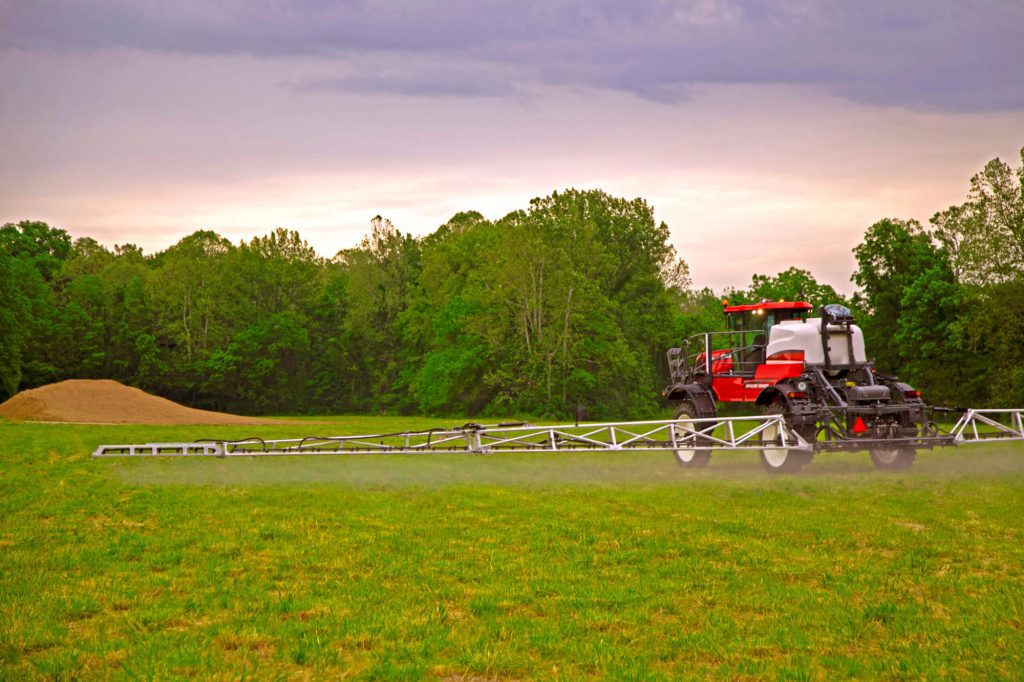

The Apache HS1100 was engineered for farmers who require maximum crop clearance, and powerful hydrostatic drive performance in a self-propelled sprayer. The HS1100 comes equipped with the tallest rear boom in North America that adjusts from 60 to 70 inches on the move. And the impressive 300 horsepower Cummins engine, and 1,120-gallon spray tank is ideal for large acreage growers.

The Apache HS1100 Hydrostatic Sprayer features four-wheel steering and slope compensation with back axle correction for better control on hills and headlands. And the crab steer mode allows for enhanced mobility in tight places.

Condition New
Model HS1100
TANK CAPACITY 1,120 gal
WEIGHT (APPROXIMATE DRY WEIGHT) 28,225 lbs
AXLE WIDTH 120″ – 160″ hydraulic adjustable
TRANSPORT WIDTH & HEIGHT 144″ maximum
OVERALL LENGTH 372″ Maximum
TURNING RADIUS 24′ (Two-wheel steer) 13′ (Four-wheel steer)
WHEEL BASE 14′ 7”
FRONT TIRES (STANDARD) Michelin 380/90R46
REAR TIRES (STANDARD) Michelin 380/90R46
CROP CLEARANCE 60″-70″ hydraulic adjustable
BOOMS Pommier 100′, 120′, or 132′ aluminum
RINSE TANK 110 gal
RATED HORSEPOWER  300 HP
DRIVELINE EFFICIENCY 75%
PTG: HP PER 1,000 lbs. 8
FUEL TANK CAPACITY 100 gal
TRANSMISSION Rexroth hydrostatic
ENGINE
Cummins T4F
