H&S HPV4255

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

HPV4255 MANURE SPREADER INFORMATION

Vertical beaters.

Vertical beaters feature “REVERSE FLIGHTING” on the top 21″ of the beater flighting. This patented feature allows for an even spread pattern of material.

All Hydraulic Push models use solid virgin grade poly with UV inhibitor, for the floor and sides allowing less friction.

The hydraulic endgate has 2 cylinders with ⅜″ hose and pipe for faster operation in cold weather.

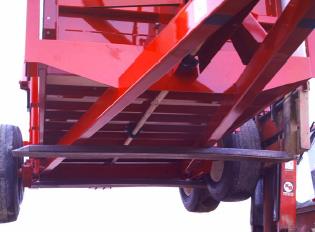

Heavy duty rectangular tubing is used for the pole to ensure strength and long life. Structural channel floor supports spaced 9 ½″ apart are used for maximum floor support.

The bottom drive Monoblock Gearbox features an overrunning clutch that provides protection to the driveline.

The Hydraulic Push-Off System on all models features two hydraulic cylinders that sequence to reduce push-off forces for fast unloading of material.

Beater blades are replaceable and the beater assembly is removable for stockpiling manure.

Removal of the beater assembly is done by simply removing the mounting bolts and disconnecting the PTO gearbox driveshaft .

Condition New
Model HPV4255
HPV4255
CAPACITY – OLD RATING 550 Bushel
CAPACITY CU. FT, STRUCK LEVEL 430
SIDE LOADING HEIGHT 81″
2ND OR VERTICAL BEATER HEIGHT 121 ½″
HEIGHT-TOP OF HYD. END GATE (W/O HOOK) 85 ½″
HEIGHT-TOP OF SCREEN (VERT. BEATER ONLY) 117″
INSIDE WIDTH 72″
INSIDE LENGTH 16′
INSIDE DEPTH 53″
OVERALL WIDTH W/TIRES 10′ 2″
OVERALL LENGTH 27′ 5″
STANDARD NUMBER OF BEATERS 2
HORIZONTAL BEATER DIAMETER/LOWER N/A
HORIZONTAL BEATER DIAMETER/UPPER N/A
VERTICAL BEATER DIAMETER 34″
REPLACEABLE BEATER PADDLES YES
REMOVEABLE BEATER ASSEMBLY YES
STANDARD PTO SPEED 1000 RPM
OPTIONAL PTO SPEED 540 RPM
PTO OVERLOAD PROTECTION Shear Bolt
HYDRAULIC PUSH CYLINDER DIAMETER 4 ½″
HYDRAULIC PUSH CYLINDER HOSE DIAMETER ½″
HUB 10 Bolt
SPINDLE SIZE 3″
TIRE SIZE 425 x 22.5
HYDRAULIC END GATE Standard
CYLINDERS ON HYDRAULIC END GATE 2 W-⅜″ Hose
REAR PAN Standard
JACK Standard
WOOD SIDE RAILS Standard
WEIGHT W/TIRES 11,000#
WARRANTY: SEE OPERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Features

  • Vertical beaters.
  • Vertical beaters feature “REVERSE FLIGHTING” on the top 21″ of the beater flighting. This patented feature allows for an even spread pattern of material.
  • All Hydraulic Push models use solid virgin grade poly with UV inhibitor, for the floor and sides allowing less friction.
  • The hydraulic endgate has 2 cylinders with ⅜″ hose and pipe for faster operation in cold weather.
  • Heavy duty rectangular tubing is used for the pole to ensure strength and long life. Structural channel floor supports spaced 9 ½″ apart are used for maximum floor support.
  • The bottom drive Monoblock Gearbox features an overrunning clutch that provides protection to the driveline.
  • The Hydraulic Push-Off System on all models features two hydraulic cylinders that sequence to reduce push-off forces for fast unloading of material.
  • Beater blades are replaceable and the beater assembly is removable for stockpiling manure.
  • Removal of the beater assembly is done by simply removing the mounting bolts and disconnecting the PTO gearbox driveshaft .
