Description

CLIMB OVER THE TOUGHEST GRADES WITH THE AS850 SPRAYER

With a 4-speed JCB power shifting transmission and 173 hp Cummins engine, our lightest Apache Sprayer still provides you the power to climb your toughest grades and get you through your most unfavorable ground conditions. Just like all Apache sprayers, the AS850 is fuel-efficient, reliable, and provides leading operator comfort with state-of-the-art noise dampening inside the cab, a positive-position joystick and Bluetooth® capabilities. Get going on the road at speeds up to 30 mph (48.3 kph) and 90 gallons in the tank.

Condition	New
Model	AS850

TANK CAPACITY	800 gal
WEIGHT (APPROXIMATE DRY WEIGHT)	19,700 lbs
AXLE WIDTH	120″ fixed120″-160″ adjustable (with optional 50″ clearance only)
TRANSPORT WIDTH & HEIGHT	144″ maximum
OVERALL LENGTH	290″ maximum
TURNING RADIUS	18′
WHEEL BASE	15′
FRONT TIRES (STANDARD)	Michelin 380/80R38
REAR TIRES (STANDARD)	Michelin 380/90R46
CROP CLEARANCE	JCB 42″ with planetary final drive50″ with 18″ drop box all-gear final drives (optional)
BOOMS	ET Custom Boom (Steel) Straight 90′, 100′ or 60’/90′Pommier (Aluminum) Straight 100′, 120′ or 132′
RINSE TANK	100 gal
RATED HORSEPOWER	173 hp
DRIVELINE EFFICIENCY	90%
PTG: HP PER 1,000 lbs.	7.9
FUEL TANK CAPACITY	90 gal
SUSPENSION	Patented independent hydraulic
TOP ROAD SPEED	30 mph
TRANSMISSION	JCB transmission Powershift, 4-speed
ENGINE	Cummins Tier 4F 173 hp (rated)

Features

AS850 Product Enhancements

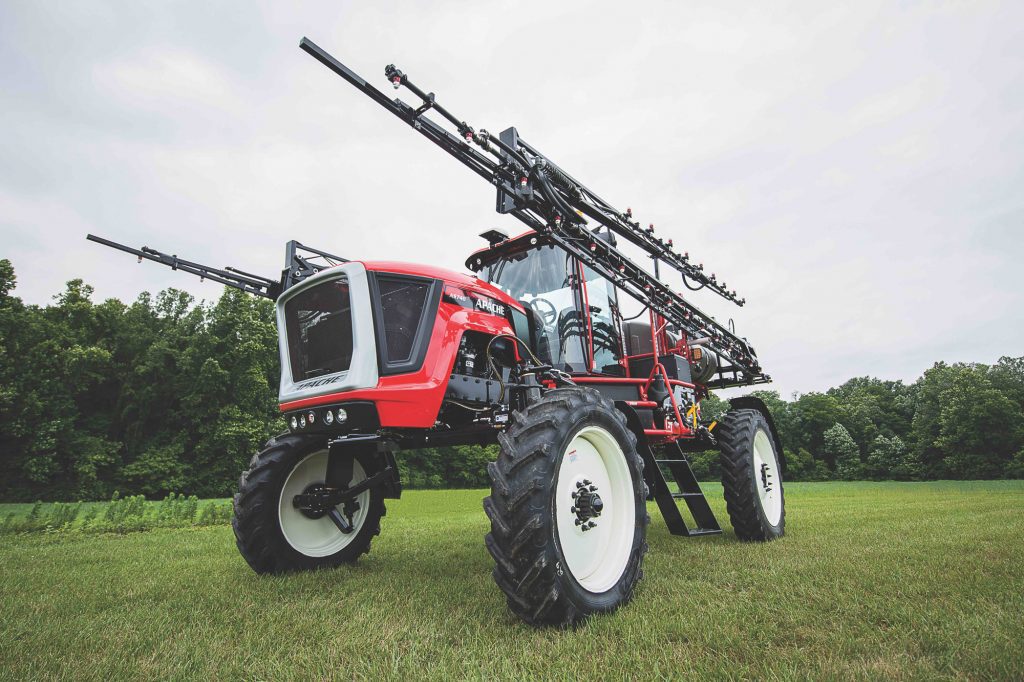

FRONT ENTRY TO CAB
New front entry, same legendary Apache view. Our engineering team preserved the visibility of the front axle, angling the grates, and performed test after test to ensure the view was not compromised.

OPERATION CONVENIENCE
To improve productivity and convenience, operators can now perform rinse, agitate, and other fill-station functions right from the cab (with the 3″ fill option). We’ve also simplified our fuel and hydraulic tanks for ease of fill.

FRONT AXLE
More durable than ever. All AS Series Sprayers feature an improved front axle, making for uniform steering and better suspension with new struts boasting 8x better performance.

IR LED BACKUP CAMERA
The Voyager VCMS20B high-resolution color IR LED camera boasts a 145 degree wide viewing angle that provides coverage and an improved depth of field.
