2024 Great PLains 06 Series
Whether you’re working in tight spaces, navigating rough terrain, or seeding diverse crops, Great Plains no-till drills deliver the precision and durability you need. From compact 3-point models to wider pull-type options, each drill is engineered for efficient seeding in a variety of conditions—from pasture renovation and food plots to mine reclamation and native grass establishment.

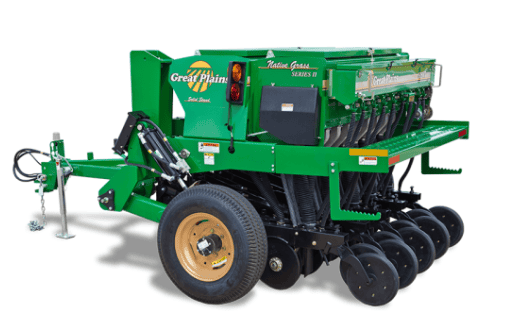

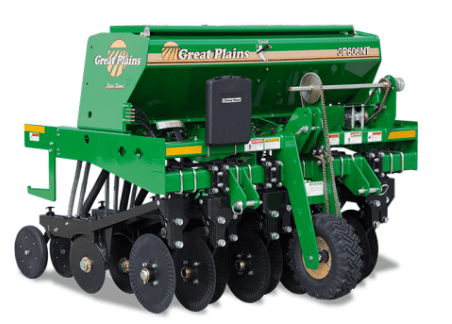

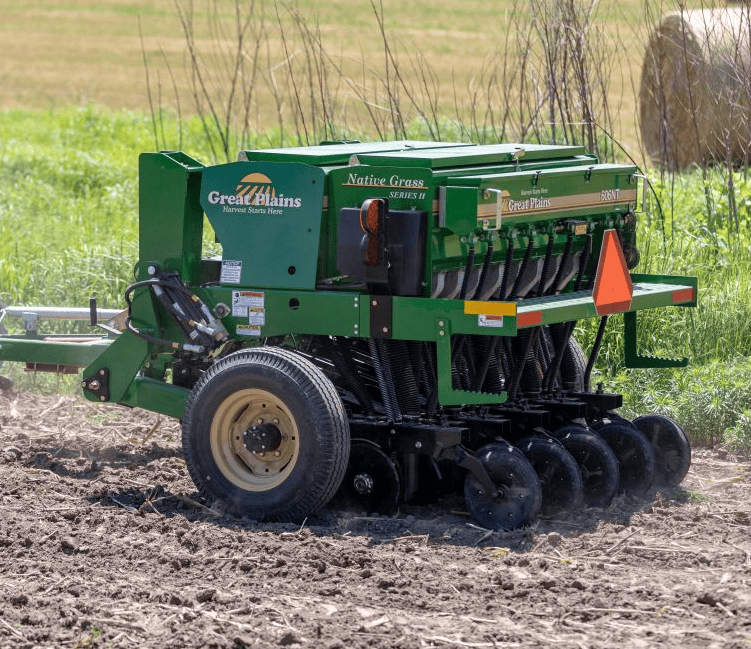

606NT Pull-Type & 3P606NT 3-Point Mounted Drills

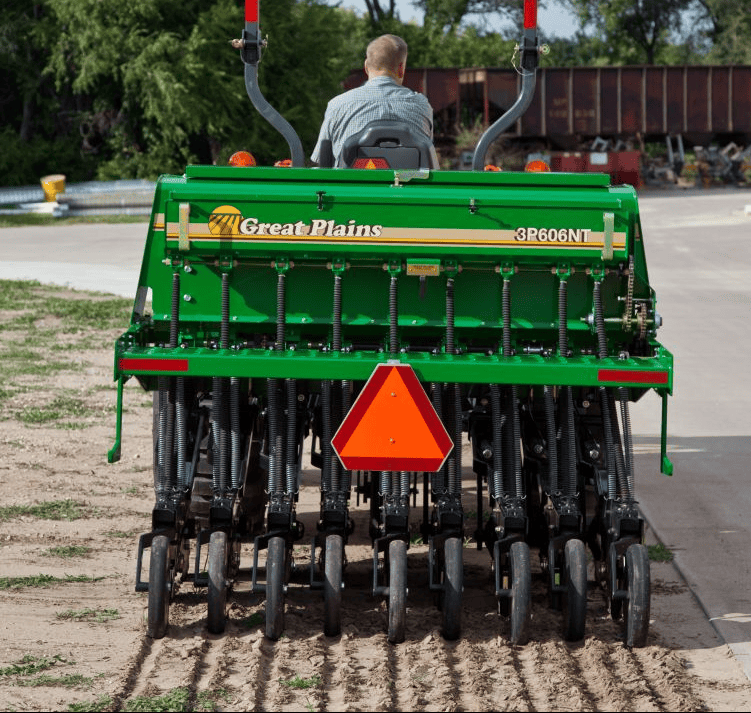

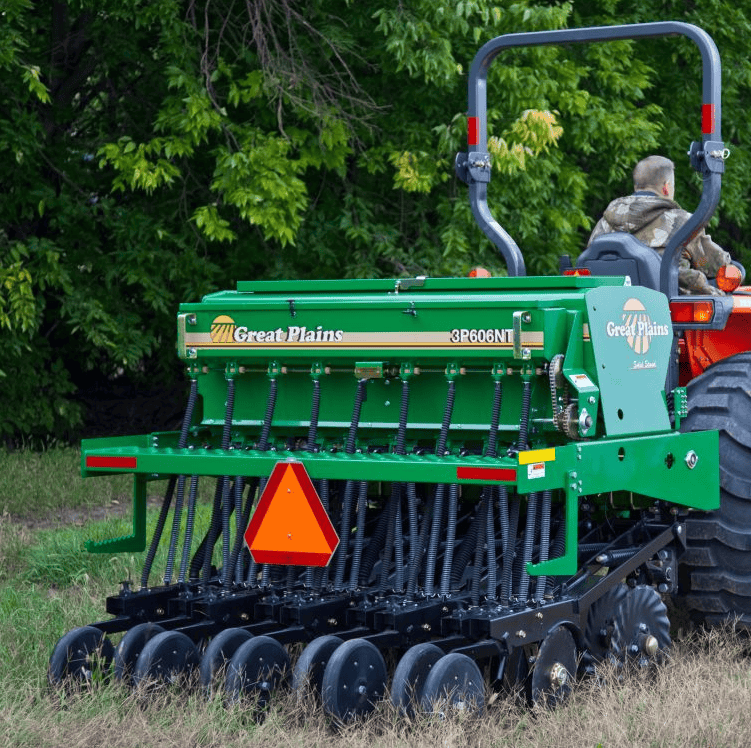

The 606NT and 3P606NT offer rugged performance in compact designs, ideal for seeding close to field edges, around trees, or in narrow areas. Both feature nine 06 Series Openers, 450 lb. pre-loaded heavy-duty coulters, and a choice of 5/16″ fluted or exclusive 5/8″ Turbo Coulter blades to suit your residue and soil needs. The 3P606NT’s staggered 4″ lead coulters improve residue flow and prepare a mini-seedbed, while the 606NT’s end-wheel design reduces sideloading on contours, extending opener life.
Each unit includes a 12-bushel main seed box, with options to add a 1.44-bushel small seeds box and a 6-bushel native grass box—enabling simultaneous seeding of three seed types at different rates. Other features include a ground-driven metering system, easy-access calibration crank, central grease bank, rain-tight seed box lids, and lockout hubs for transport.

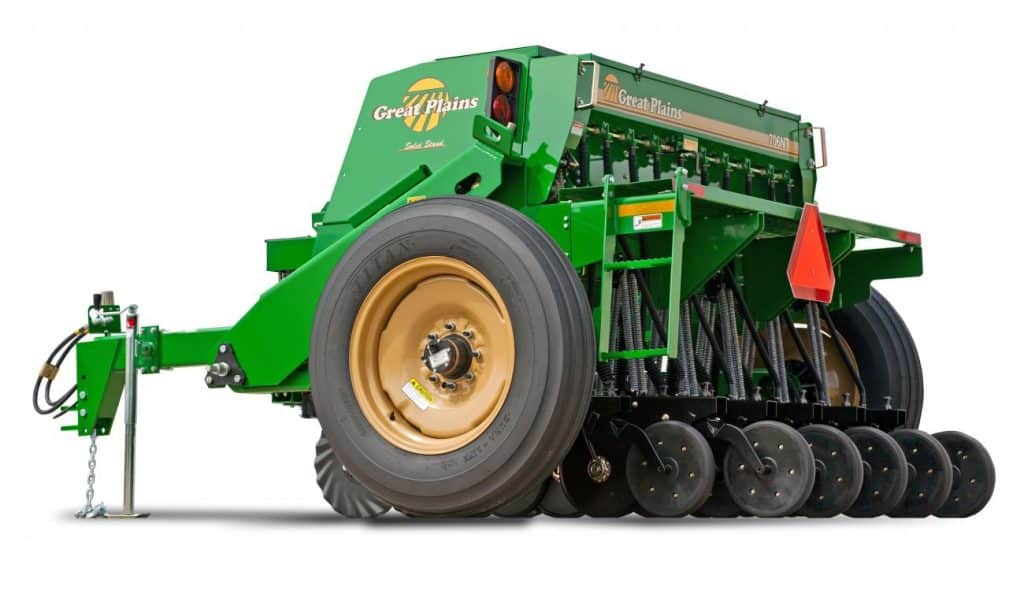

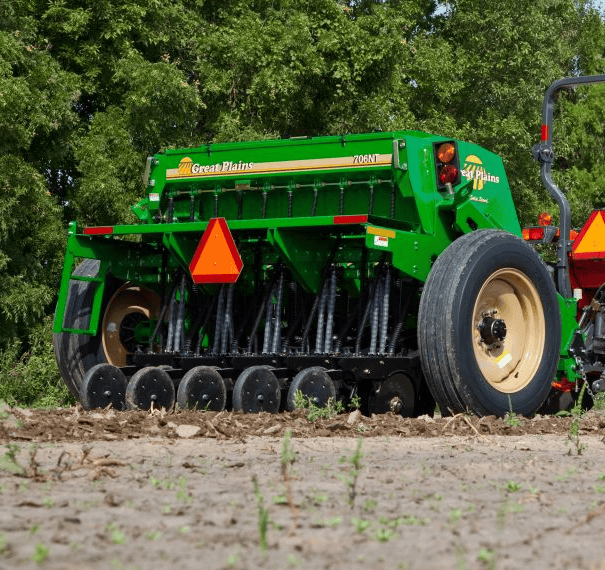

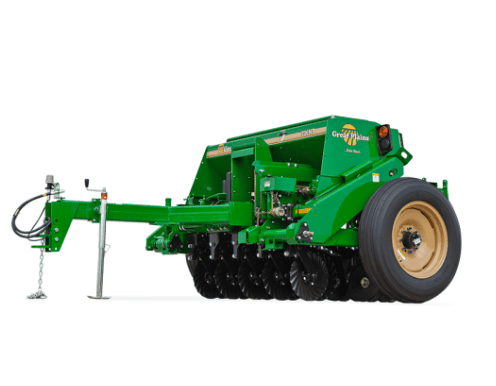

706NT 7′ End Wheel No-Till Drill
Striking a balance between versatility and productivity, the 706NT is at home in everything from pasture renovation to tough reclamation projects. Its inline end wheels provide excellent ground gauging and reduce sideloading on slopes and curves, dramatically increasing opener longevity.
The 706NT comes standard with a 17-bushel main seed box and offers multiple add-on options: small seeds box, native grass box, fertilizer box, or a second seed box. With a 4-speed gearbox, mechanical clutch for end-row turns, and a rain-tight lid system, this drill is built for reliable, long-term performance in diverse applications.
Features may include:
06 SERIES OPENER
- The 06 Series row unit utilizes the “Fluff and Plant” no-till system with an integrally-mounted coulter to cut residue and prepare a mini seedbed for the trailing double-disc opener. The opener discs are 13.5″ in diameter and 4mm thick with 205 triple-lip sealed bearings, and ¼” opener disc lead. Our unique full-length seed tube design and trailing flap control the seed all the way to the bottom of the seed trench where the seed stays in place.
ADJUSTABLE HITCH HEIGHT – Trim 706NT – 7
- Six-position hitch adjusts to your tractor’s hitch height to keep the drill level in planting position.
3-POINT MOUNTED
- Category II 3-point mounting setup.
HIGH TRANSPORT CLEARANCE – Trim 706NT – 7′
- With the high clearance and end wheel design, the 706NT can virtually go anywhere your tractor can pull it without gouging or bottoming out.
LOCK-OUT – Trim 706NT – 7′
- Disengages all drive components, reducing wear and tear during transport.
CENTER-MOUNTED DRIVE WHEEL
- Eight settings allow the height of the ground drive wheel to be repositioned as needed.
END WHEEL DESIGN – *Trim 606NT – 6′
- Rugged, time-proven design stays on side-hills and maintains accurate seed placement in undulating terrain.
HYDRAULIC DEPTH STOP – *Trim 606NT – 6′
- Wide range of adjustments for matching coulter depth to seeding depth.
VERSATILE BOX COMBINATIONS
- Seed up to three different seeds at the same time (main seedbox, Native Grass, Small Seeds).
4-SPEED GEARBOX
- Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.
FLUTED SEED CUPS
- With powdered metal flutes, these 1¾” seed cups deliver outstanding accuracy.
GREATPLAINSAG MOBILE APP
- Calibrate your drill with the step-by-step calibration assistant. Access manuals, specs, maintenance guides, and more right from your phone.
LARGE BOX CAPACITY
- With a 2 bu./ft. capacity, a larger seed box reduces downtime and covers more acres per fill.
LEAD COULTER OPTIONS
- Choose between a 5/16″ fluted coulter blade (left) that penetrates easily for minimum tillage or a 5/8″ Turbo coulter blade (right) that is more aggressive and prepares a mini seedbed ahead of the opener. Preloaded springs offer 450 lbs. of down pressure per row on the leading coulter.
PRESS WHEEL OPTIONS
- Choices include, from left, 3″x13″ double rib; 3″x13″ center rib; 2″x13″ smooth; 1″x12″ double-V; or double wedge-style press wheels that create a pinching action to close the seed trench. (*Only available by special order through Parts)
T-HANDLE OPENER DEPTH ADJUSTMENT
- Provides 18 different positions for accurate depth control.
