Description

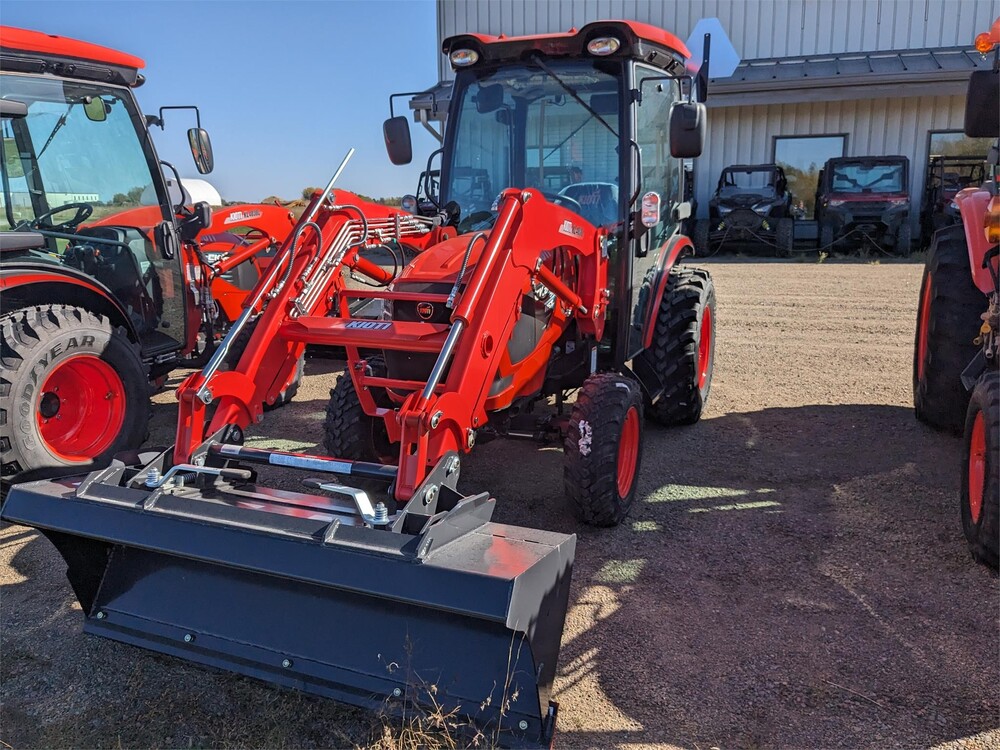

NEW 2023 CK2620CHSE WITH FACTORY CAB, HEAT AND A/C. R14 TIRES. KL4030 LOADER PACKAGE WITH QUIKTACH BUCKET.
Engine Gross Power: 24.5 hp (18.2 kW)
PTO Type: Independent
Transmission Type: HST
KIOTI Diesel Engine
Power Steering
Single Lever Joystick
3-Point Control Lever
LOADER SPECS:
Maximum Lift Height to Pivot Pin 98.4 in.
Maximum Lift Height Under Level Bucket 93 in.
Clearance With Bucket Dumped 45 Degrees 79.1 in
Reach At Maximum Lift Height 27.2 in.
Maximum Dump Angle 48°
Reach With Bucket on Ground 62.2 in.
Maximum Rollback Angle 28°
Digging Depth Below Grade 5.3 in.
Overall Height in Carry Position 49.6 in.
Bucket Depth (Inner Shell) 19.9 in.
Bucket Height 20.7 in.
Bucket Length (Pivot Pin) 26.9 in.
Relief Valve Setting (Loader Control Valve) 2,560 psi
Rated Flow (Tractor System) 6.9 gpm
Lift Capacity at 59.84 in. (1,520 mm) Pivot Pin Height 1,835 lbs.
Breakout Force @ Pivot Pins 3,464 lbs.
Approximate Weight (With Bucket) 60 in.: 959 lbs. / 66 in.: 981 lbs.
Bucket Capacity (Heaped) 60 in.: 9.39 cu. ft. / 66 in.: 10.10 cu. ft.
Bucket Rollback Force at Ground Line 1,763.7 lbs.
Bucket Size(s) Available (QA) 60″ / 66″
| Condition | New |
| Year | 2023 |
| Make | KIOTI |
| Model | CK2620CHSE |
| Serial Number | PA4CA0003 |
