Description
Options: Front and Rear Fenders, Raven E-Pro with section control, 5-sensor auto height control, 10 section boom

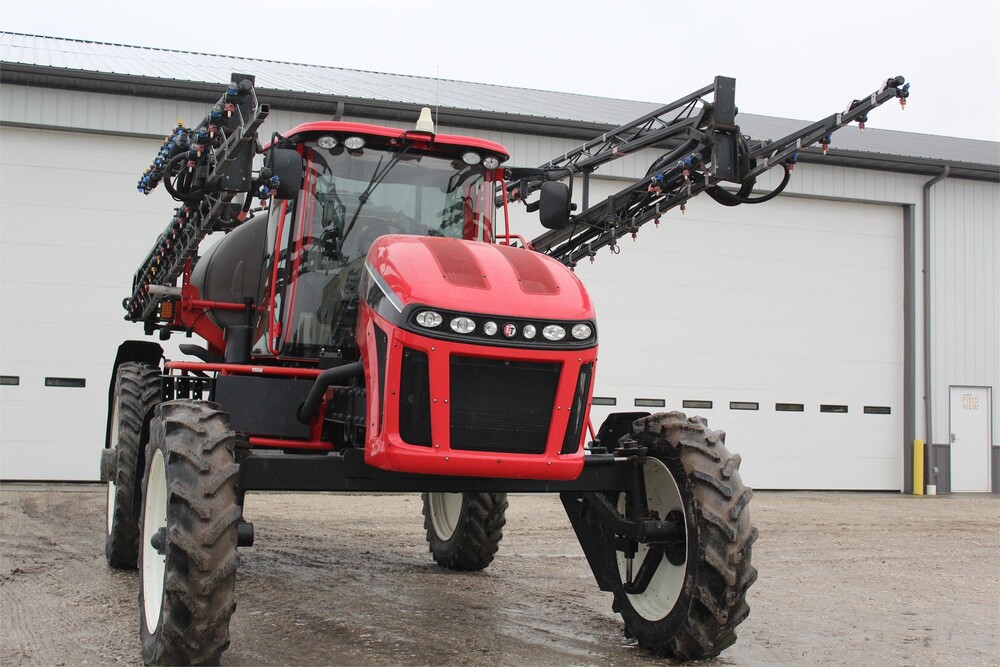

2013 AS1025
Tank Capacity 1000 gallons
Engine 173 HP Cummins Tier IV
Transmission Standard: ZF Powershift 6-speed with lock-up torque converter
Speeds 1st 0 to 5 mph [8.04 km/h]
2nd 0 to 7 mph [11.27 km/h]
3rd 0 to 11 mph [17.7 km/h]
4th 0 to 17 mph [27.36 km/h]
5th 0 to 27 mph [43.45 km/h]
6th 0 to 35 mph [56.3 km/h]
Brakes Internal, wet disc self-adjusting
Suspension Front Axle: Center oscillation with independent hydraulic accumulated struts.
Rear Axle: Patented hydraulic load suspension with compensating anti-sway control, self-adjusting for diminishing/increasing load.
Crop Clearance 42 in.
Axles 120 in. Fixed Width Axle
Final Drive ITL/JCB planetary gearset
Cab ET custom pressurized cab
Weight 18,500 lbs dry weight
Width 12 ft.
Height 143 in.
Length 24 ft.
Booms 90 ft.
Boom Height 18 to 89 in.
Wheel Base 15 ft.
Tires Standard Front: 380/80R38
Standard Rear: 380/90R46
Turning Radius 17 ft.
Fuel Capacity 100 gallons
Product Pump Hypro 9306C HM1C, hydraulically driven centrifugal pump
| Condition | Used |
| Year | 2013 |
| Make | APACHE |
| Model | AS1025 |
| Serial Number | 9130406 |
