WLS 100

Description

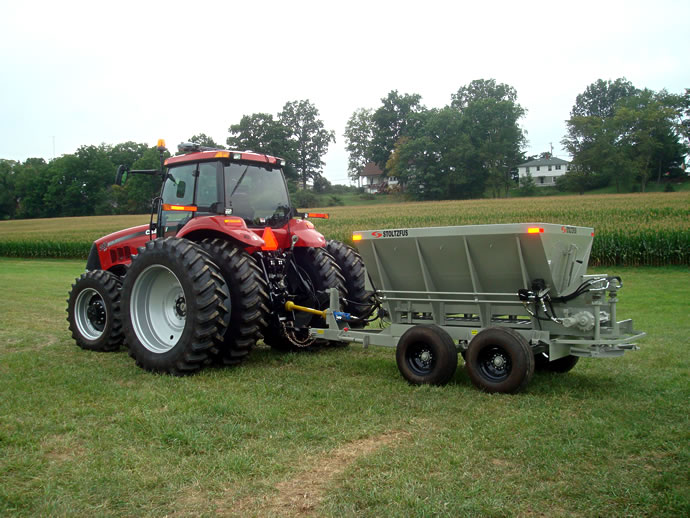

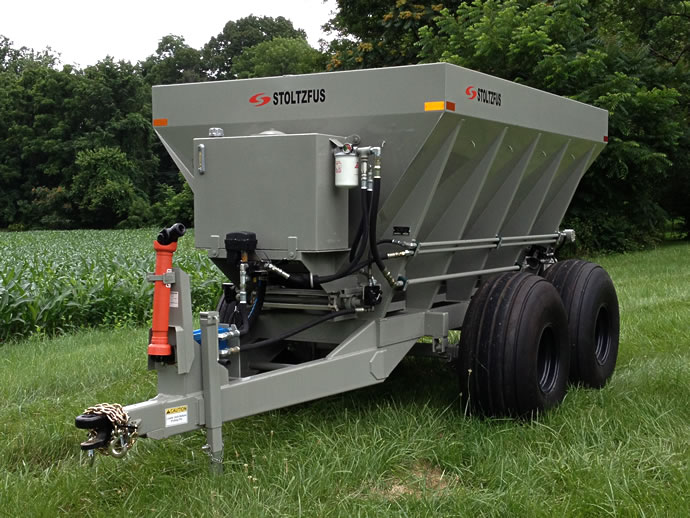

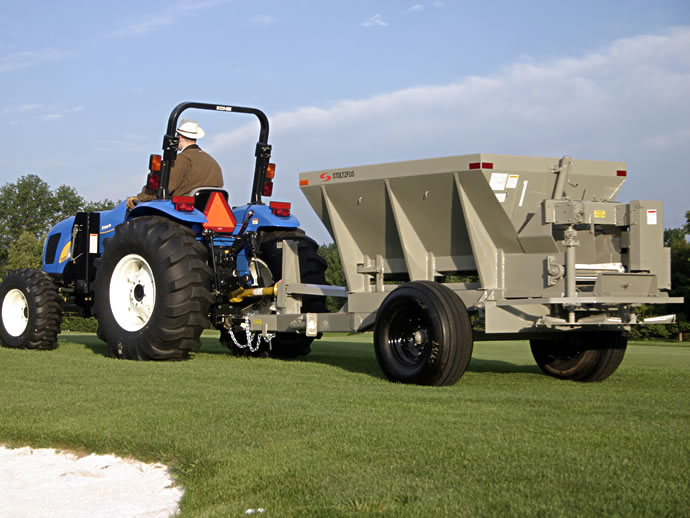

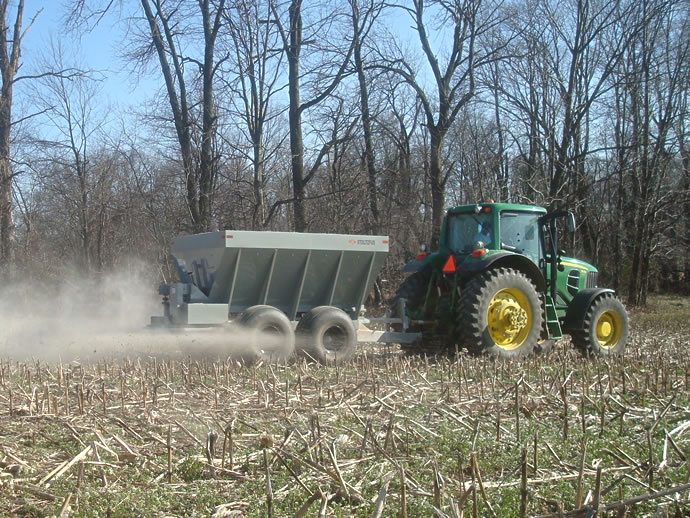

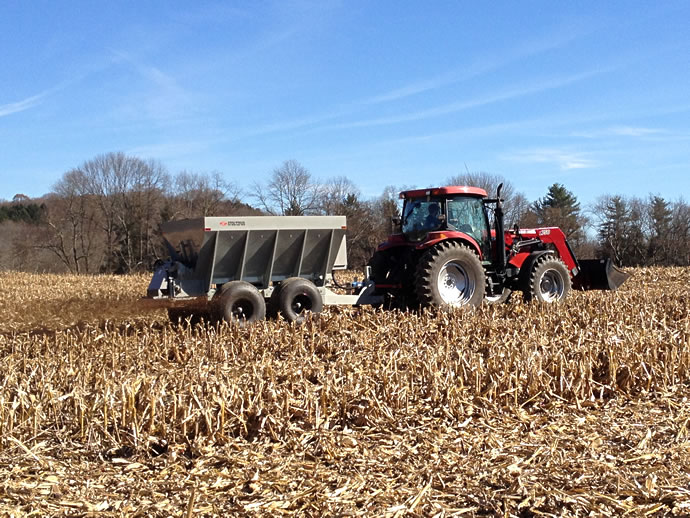

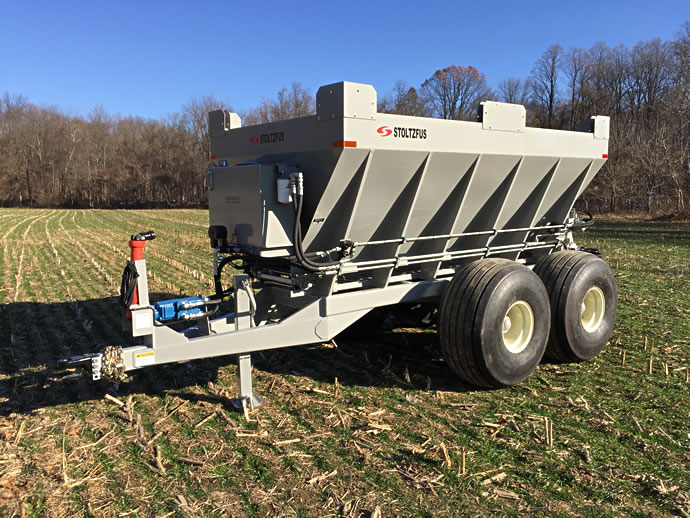

For farmers who are dissatisfied with light duty spreaders, the Wet Lime Spreader is a machine that is built for spreading wet or damp agricultural lime. Unlike a fertilizer spreader, the Wet Lime Spreader has a 24 inch wide conveyor and steep, 53 degree side slopes and a 4” drop pan to prevent material bridging in the hopper.

The Wet Lime Spreader (WLS) is designed to pay for itself based on the difference between custom applied lime and spreading it yourself. Farmers typically back-haul lime from the quarry and dump it in the corner of a field for spreading at a later date. The lime does not need to be kept dry, and can sit for months until needed. The lime can then be spread when conditions are right instead of waiting in line for the custom applicator to come around.

The WLS spreaders are available in all PTO mechanically driven, plug to tractor hydraulics and PTO over hydraulics, whichever best suits your needs. Spread rates are determined by ground speed and rear metering gate height, and a constant ground speed is required to maintain a consistent spread rate.

ConditionNew
ModelWLS 100
Models100
Max. load10 tons
Hopper volume212 cu.ft.
Hopper length143 in.
Hopper width78 in.
Hopper depth50 in.
Overall length20 ft.
Overall width101 in.
Overall height89 in.
Axles2
Wheel track (center)80 in.
Tires21.5L x 16.1, 14ply
Weight5,200 lbs.

Features

STANDARD

  • 2, 4, 5, 8, 10 and 15 ton capacities
  • Orchard/Vineyard configurations
  • Fertilizer kit for rates down to 125 lbs/acre
  • Walking-beam suspension
  • PTO driven body chain (2-8 ton)
  • Hydraulically driven body chain (10 and 15 ton)
  • Top driven hydraulic spinners
  • Fill-for-life heavy duty gearbox
  • Unibody, fully welded design
  • Structural steel frame
  • Extra body braces
  • 7 gauge steel pan
  • 53-degree body sides
  • 4″ drop pan
  • 24″ slat style chain
  • Telescoping chain tighteners
  • Self-aligning idler shaft
  • Carbon-steel construction
  • Lights

OPTIONAL

  • Self-contained PTO hydraulic drives
  • Plug to tractor hydraulic body chain
  • PTO driven spinners (2-8 tons)
  • Shredder (breaks up large chunks before they hit the spinners)
  • VRT Ready upgrade
  • Spring suspension
  • Flotation tires
  • Tarps
  • Cor-Ten® steel hopper
  • 304 Stainless steel hopper
  • Brakes
  • Special wheel tracks
  • Single axle
  • 1000 RPM PTO
  • GPS

MATERIALS SPREAD

  • Stockpiled (wet or damp) Ag lime
  • Gypsum
  • Marl
  • Fertilizer
  • Compost
  • Poultry manure
  • Grape hulls
  • Sand
  • Crushed shells
  • Cement plant stack dust
  • Wood shavings
  • Dirt
  • Seeds (blended w/ fertilizer
