Great Plains Turbo-Max®

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

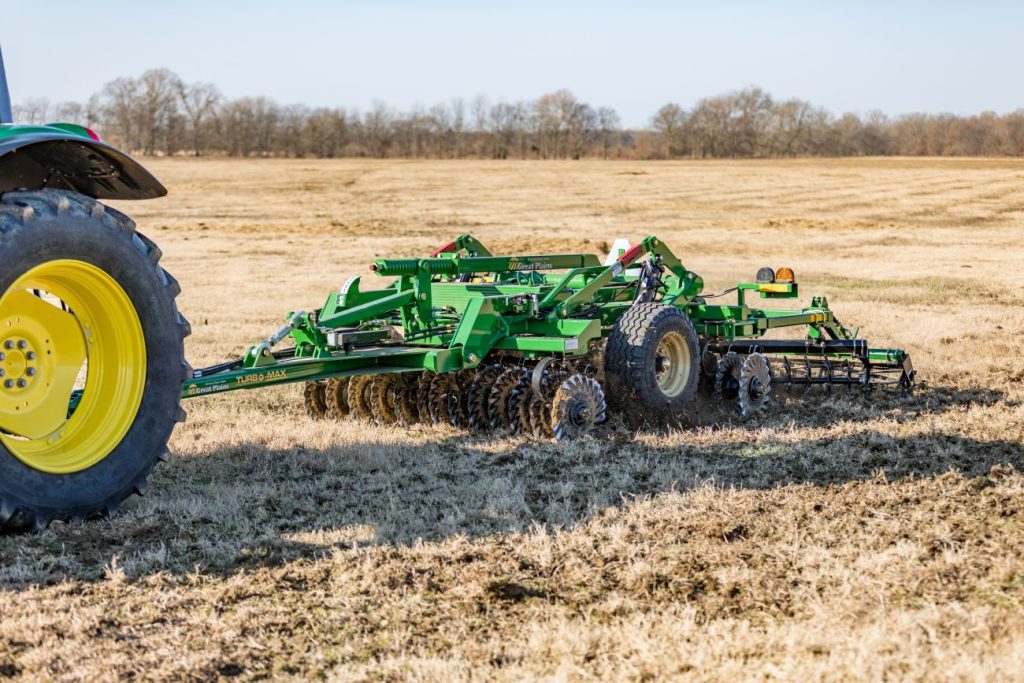

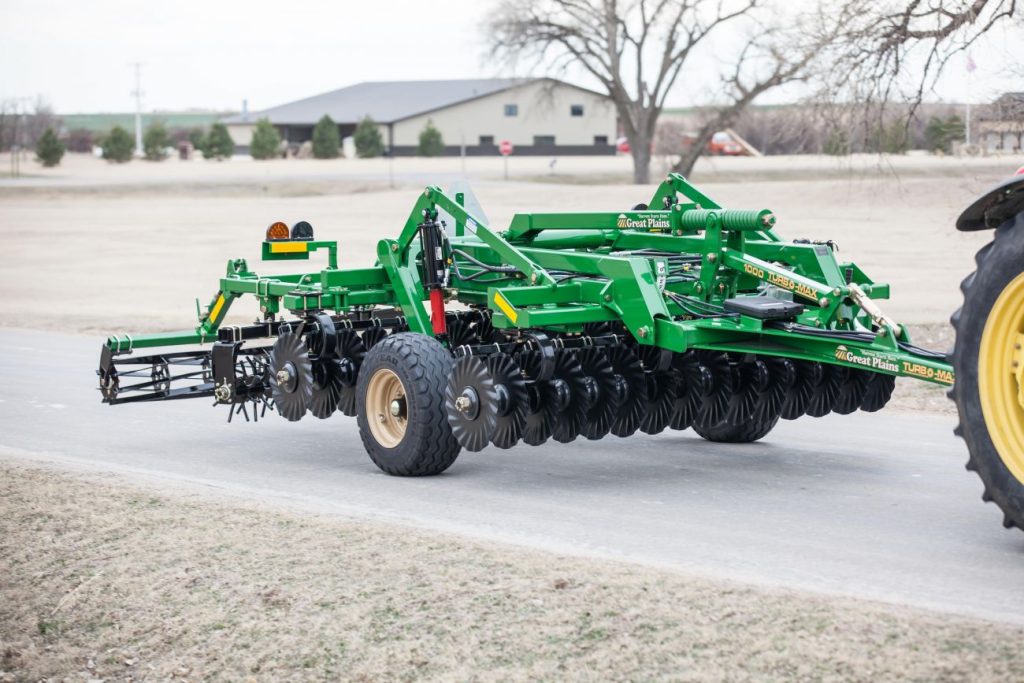

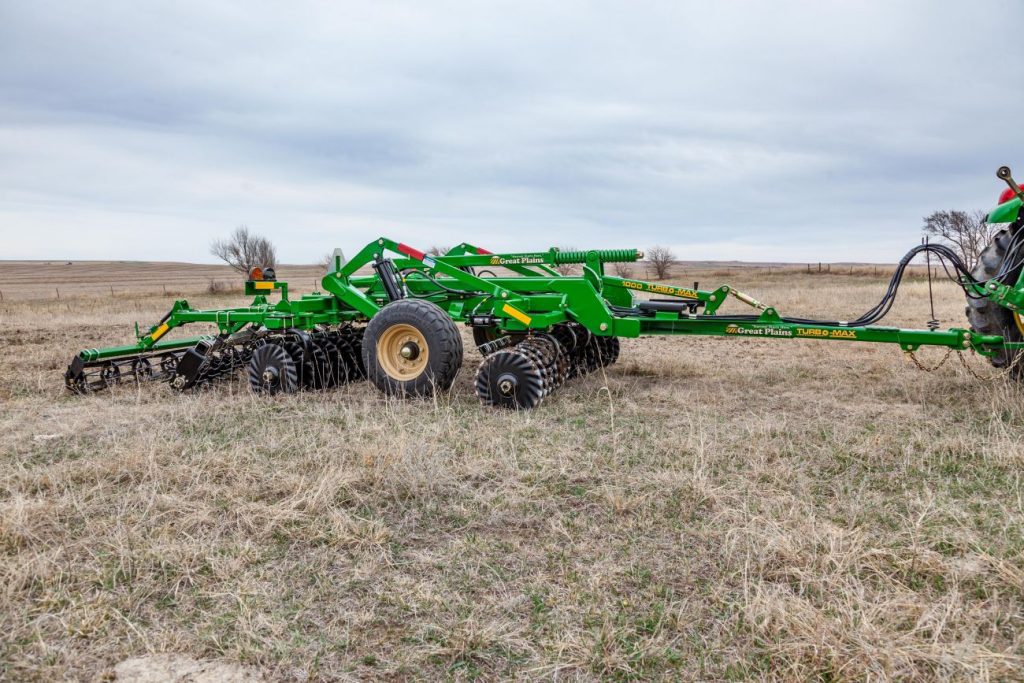

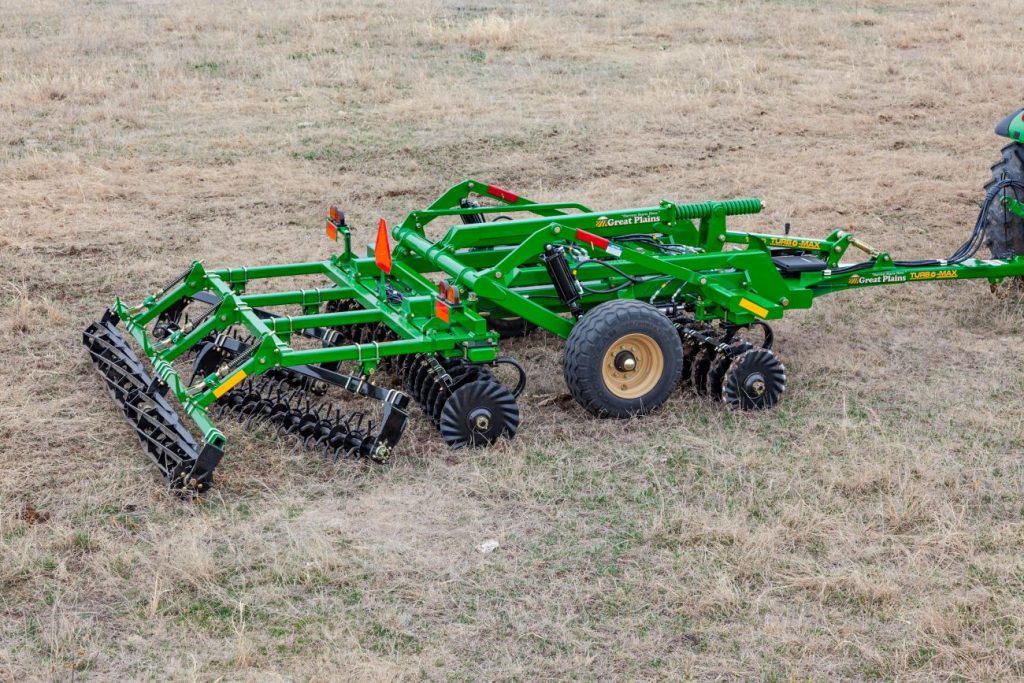

The Great Plains Turbo-Max prepares a smooth seedbed while sizing and anchoring residue in one pass. Working widths span 8.5 feet to 15 feet, so operations of any acreage can add vertical tillage. Offset coulter gangs angle from 0 to 6 degrees to match spring or fall field conditions.

Compare Models

Four models to choose from. Click any model below to see full specs.

850TM | 8’6″ Width | 85+ HP
Model 850TM
Condition New
Type Vertical Tillage Cultivator
Coulter Spacing 3¾” Effective (7½” Per Gang)
Tires 340/60R16.5 (2)
Engine HP Requirement (PTO) 85+
Tillage Width 8’6″
Transport Width 10′
Transport Height 5’4″
Weight (Approx. Max w/ Attachments) 7,500 Lbs.
1000TM | 10′ Width | 100+ HP
Model 1000TM
Condition New
Type Vertical Tillage Cultivator
Coulter Spacing 3¾” Effective (7½” Per Gang)
Tires 340/60R16.5 (2)
Engine HP Requirement (PTO) 100+
Tillage Width 10′
Transport Width 11’6″
Transport Height 5’4″
Weight (Approx. Max w/ Attachments) 8,250 Lbs.
1200TM | 12′ Width | 120+ HP
Model 1200TM
Condition New
Type Vertical Tillage Cultivator
Coulter Spacing 3¾” Effective (7½” Per Gang)
Tires 11Lx15SL 12-Ply (4)
Engine HP Requirement (PTO) 120+
Tillage Width 12′
Transport Width 13’6″
Transport Height 5’4″
Weight (Approx. Max w/ Attachments) 11,900 Lbs.
1500TM | 15′ Width | 150+ HP
Model 1500TM
Condition New
Type Vertical Tillage Cultivator
Coulter Spacing 3¾” Effective (7½” Per Gang)
Tires 11Lx15SL 12-Ply (4)
Engine HP Requirement (PTO) 150+
Tillage Width 15′
Transport Width 15’6″
Transport Height 5’4″
Weight (Approx. Max w/ Attachments) 13,300 Lbs.
Condition New

Features

Vertical Tillage & Blade Design

True Vertical Tillage Machine
20-inch Turbo blades spaced 7.5 inches apart cut vertically without shearing residue.

Hydraulically-Adjustable Gang Angle
Gangs angle from 0 to 6 degrees to match fall residue or spring seedbed needs.

Torsion Mount
Standard torsion mounts keep the finishing pass smooth and even behind the tool.

Finishing & Residue Management

Rolling Spike Harrow
Spike harrow tines split coulters to mix soil and residue into a smooth seedbed.

Hydraulic Rear Reels (12′ & 15′ Models)
Adjust rear reel down pressure from the cab on 12-foot and 15-foot models.

Optional Weight Package
Two 750-pound weights add penetration in tough or dry soil conditions.

Durability & Maintenance

Virtually Maintenance-Free Bearings
Lip seals and coated bushings keep gang bearings sealed and free of grease maintenance.
