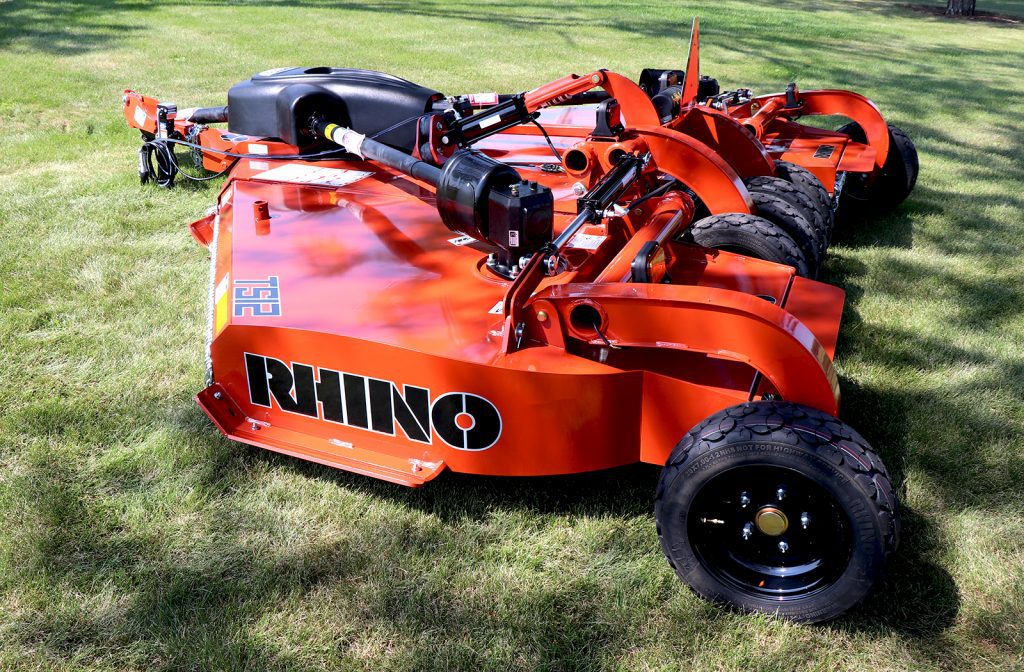

TS12 Stealth

Description

The TS12 Stealth features an exclusive close-coupled design for low tongue weight and shorter turning radius, targeting tractors in the 35-50 PTO horsepower class.

Designed specifically for customers with smaller tractors, this machine’s unique ‘stealth’ appearance, its very short wheel base, and its anti-scalp features make this the ideal machine for customers who need a flex-wing cutter’s versatility but may not have a tractor large enough to pull a 15 foot unit. The TS12 offers a full 12′ cutting width, 1 1/2″ cutting capacity, and is designed for 540 RPM PTO tractors.

ConditionNew
ModelTS12 Stealth
Cutting Width144''
Transport Width97''
Transport Height65''
Overall Width155''
Overall Length148''
Cutting Height *2'' - 12''
Self-Leveling Height AdjustmentHydraulic Cylinder
Jack StandStd
HitchPull-Swivel
Blade CarrierInfinity
Blades1/2'' x 3''
Blade Overlap6''
HP Required35 - 60 PTO
Gearbox Rating - Power Divider **160 HP
Gearbox Rating - Center & Wing **65 HP
Gearbox Oil (85W-140)Factory Filled
Output Shaft Diameter1 9/16''
Blade Tip Speed - Center 540 RPM14,504 FPM
Blade Tip Speed - Wing 540 RPM13,925 FPM
Cutting Capacity (Max.)1 1/2'' Diameter
Driveline Size - MainCAT 4 Equal Angle
Driveline Size - WingCAT 3
Driveline ProtectionSlip Clutch
Deck Thickness - Center10 Ga Bottom, 12 Ga Top
Deck Thickness - WingsDouble 12 Ga
Side Skirt1/4'' x 11 1/2''
Tires & Wheels(4 or 6) Foam Filled Aircraft OR Laminated Tires

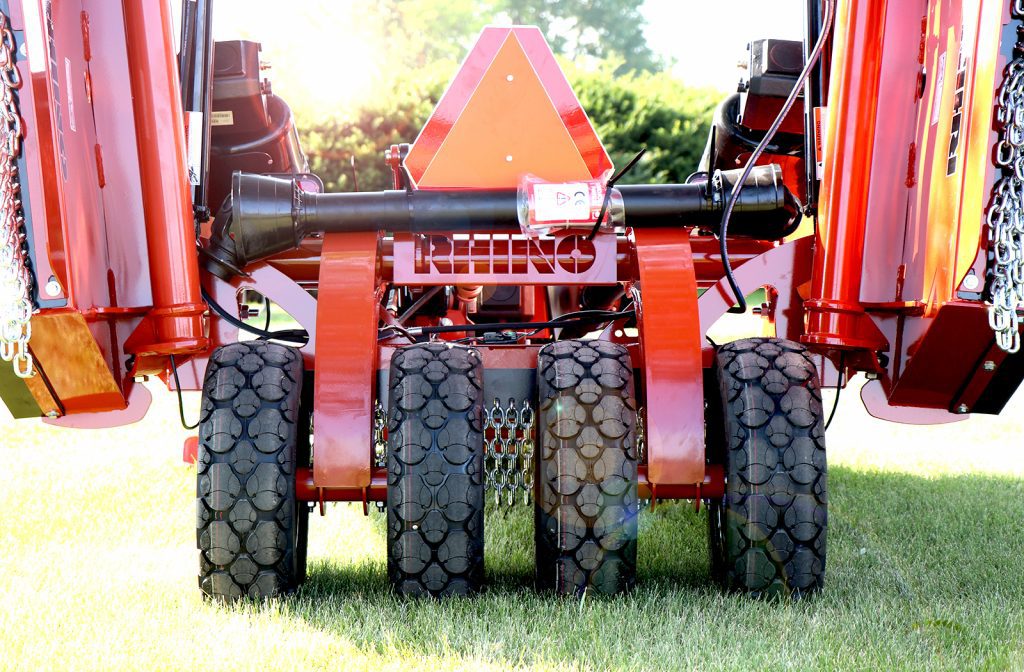

Wing Lift HydraulicsStd
Wing Flex (Degrees)88° Up / 25° Dn
Safety Tow ChainStd
LED Light KitStd
Safety DeflectorsChain Guards
Wheel Base126 1/4''
Tongue Weight748 lbs
Weight (Approx)2,750 lbs

Features

  • Designed for Tractors with 35 – 50 PTO HP.
  • Short Turning Radius for Cutting Small Areas.
  • 1-1/2” Cutting Capacity.
  • Low Tongue Weight for Smaller Horsepower Tractors.
  • Unique “Wing-Bar” Blade Carrier Protects the Gearbox Output Shaft with Minimal Weight.

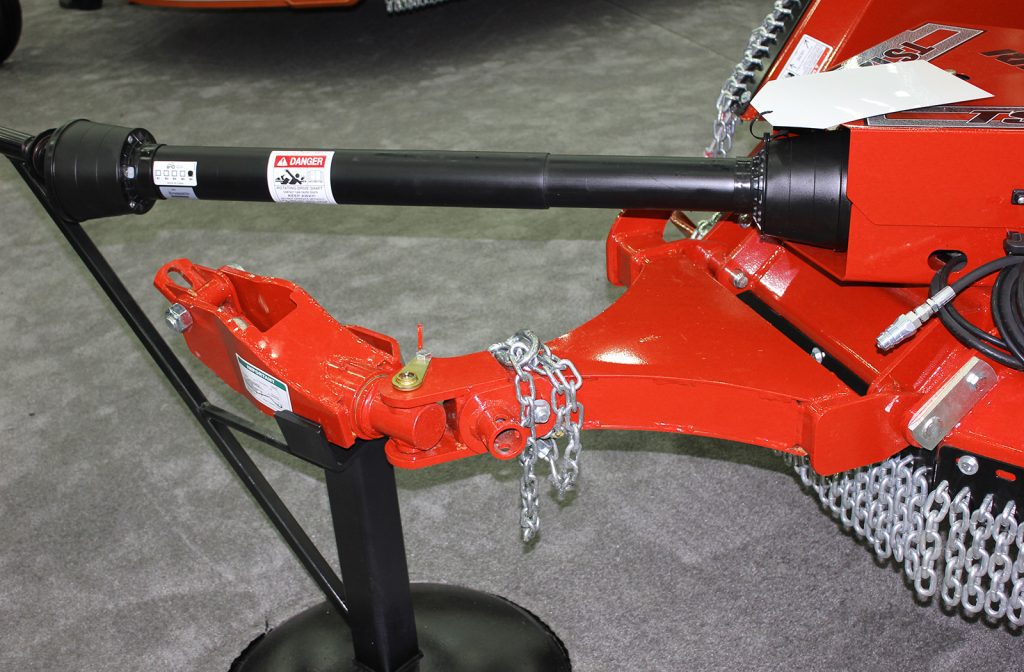

  • Equal-Angle, Fully Pivoting Tongue and Direct Acting Suspension System for Uneven Terrain.
  • Smooth Decks for Easy Cleaning and Unobstructed Underside for Airflow Through the High-Volume Cutting Chamber.
  • Provides Dramatic Reduction in Mowing Time.
  • Large Center Skid Shoes and Tapered Wing Shoes Provide Anti-Scalping Protection.
  • Chain Guards Included for Protection.
