Manitou TJ 65

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

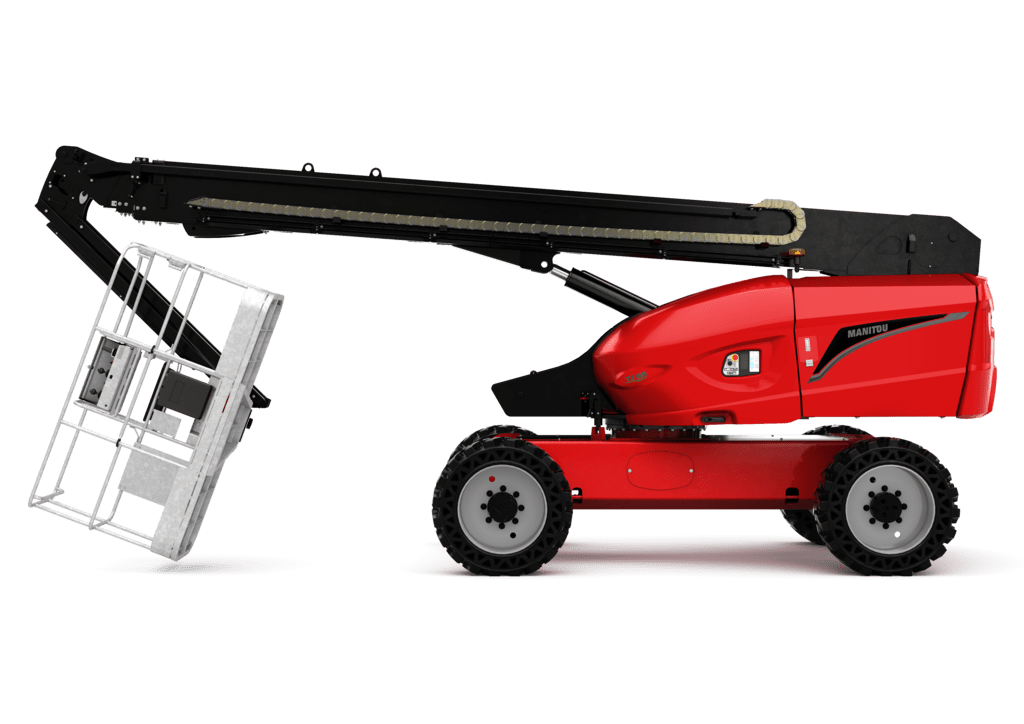

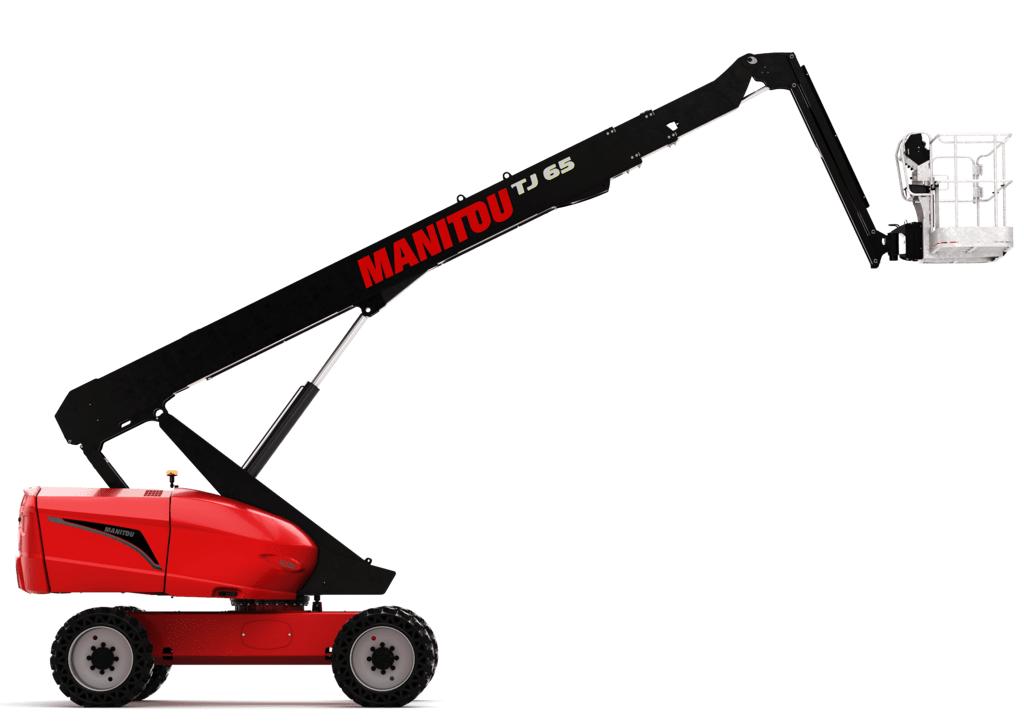

The Manitou TJ 65 telescopic boom lift secures handling operations at real height with 360-degree continuous rotation. Because negative jib rotation pairs with front and rear wheel steering, operators reach tight spots other lifts can’t. Max outreach extends to 57 feet 10 inches, giving crews serious working range. In addition, an all-terrain structure lets the machine move easily across rough, uneven, or muddy ground. That combination makes the TJ 65 a strong fit for demanding outdoor jobsites.

The Manitou TJ 65 reaches a working height of 71 feet 5 inches. The platform itself tops out at 64 feet 10 inches. Platform capacity holds up to 507 pounds, comfortably supporting two people inside. Turret rotation runs a full 360 degrees, while the platform rotates 90 degrees in each direction. Solid tires and a 40 percent gradeability rating keep the machine stable on tough terrain. Drive speed reaches 3 mph stowed, dropping to a controlled 0.62 mph once raised. Overall, the Manitou TJ 65 delivers height, reach, and stability in one rough-terrain platform.

Compare Models

Two models to choose from. Click any model below to see full specs.

TJ 65+ | 71′ 4″ working height | 899 lb capacity
Model Manitou TJ 65+
Working Height 71′ 4″
Max. Outreach 58′ 4″
Platform Capacity 899 lb
Number of Operators 3
Turret Rotation 360°
Platform Rotation (R/L) 90° / 90°
Drive Modes 2-wheel, 4-wheel, or crab
Platform Weight ~29,983 lb
TJ 65 | 71′ 5″ working height | 507 lb capacity
Model Manitou TJ 65
Working Height 71′ 5″
Max. Outreach 57′ 10″
Platform Capacity 507 lb
Number of Operators 2
Turret Rotation 360°
Tires Solid, 40 x 14 in
Condition New
Model TJ 65

Specifications

ModelManitou TJ 65
Working Height71 ft 5 in
Platform Height64 ft 10 in
Max. Outreach57 ft 10 in
Platform Capacity507 lb
Number of People2
Turret Rotation360°
Platform Rotation (R/L)90° / 90°
Overall Length32 ft 2 in
Overall Width8 ft 2 in
Overall Height8 ft 9 in
Drive Speed (Stowed / Raised)3 mph / 0.62 mph
Gradeability40%
TiresSolid, 40 x 14 in

Features

Reach & Rotation

360° Continuous Rotation
Full turret rotation gives operators complete positioning freedom.

Negative Jib Rotation
Extends working range below horizontal for tight, hard-to-reach spots.

57 ft 10 in Max Outreach
Delivers serious horizontal reach for demanding lift jobs.

All-Terrain Mobility

Front & Rear Wheel Steering
Improves maneuverability across rough, uneven, or muddy ground.

40% Gradeability
Keeps the machine stable and mobile on steep terrain.

Solid Tires
Built for rough-terrain jobsites without the risk of flats.

Platform & Capacity

507 lb Platform Capacity
Comfortably supports two people working at height.

90° Platform Rotation
Rotates left or right for precise positioning at the work point.
