SRM81V Tiller

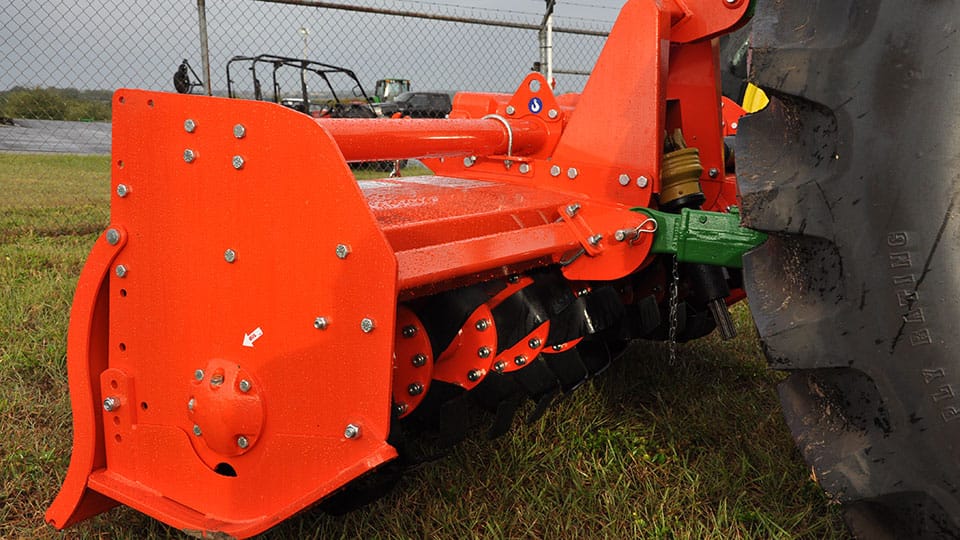

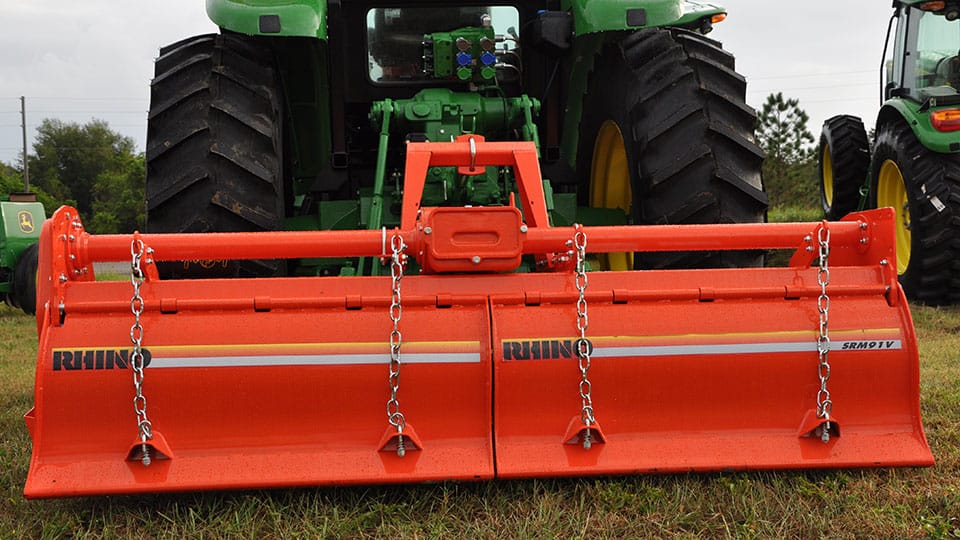

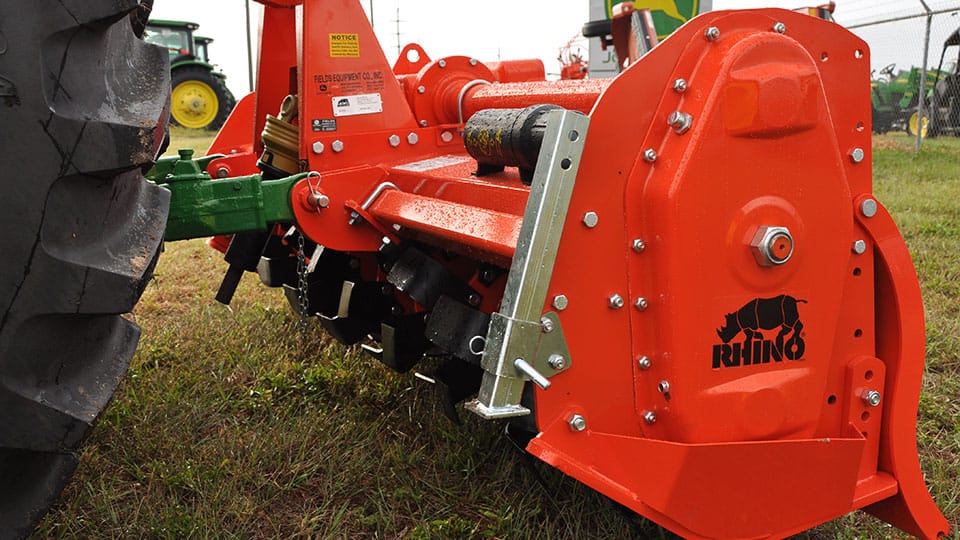

Rhino SRM81V Tiller

Description

The Rhino SRM81V tiller handles heavy-duty tilling work on sod farms, vegetable farms, and vineyards. It tills an 81-inch width and reaches a maximum depth of 8 inches. Because a CAT 4 driveline with slip-clutch protection backs every pass, the machine holds up under sustained commercial use. In addition, a massive gear rotor drive system runs in an enclosed oil bath. That keeps the Rhino SRM81V tiller performing in extreme conditions. Six replaceable, hardened knives also come standard for long wear and easy maintenance.

Adjustable skid shoes help maintain the desired tilling depth pass after pass. Meanwhile, an adjustable rear deflector lets operators dial in the finish they need on tilled soil. The Rhino SRM81V tiller also runs a 4-speed gearbox with rotor speeds of 185, 208, 235, or 266 RPM. As a result, operators can match rotor speed to soil conditions and get consistent results every time.

Compare Models

Two widths to choose from. Click any model below to see full specs.

SRM81V | 81 in Tilling Width | 981 lbs

Model	Rhino SRM81V
Tilling Width	81 in
Overall Width	87 in
Tilling Depth (Max.)	8 in
Support Stand	Standard
Hitch	CAT 1 & 2, CAT 1 Quick-Hitch
Knife Type	‘C’
Number of Knives	48
Number of Flanges	8
Recommended PTO HP (Min/Max)	40 / 70
Rotor Speed (RPM)	185 / 208 / 235 / 266 (4-speed gearbox)
Driveline Size	CAT 4
Driveline Protection	Slip Clutch
Housing Thickness	4mm
End Plate Thickness	8mm
Rotor Drive Type	Gear
Tine Rotation	Forward
Approx. Weight	981 lbs

SRM91V | 91 in Tilling Width | 992 lbs

Model	Rhino SRM91V
Tilling Width	91 in
Overall Width	96 in
Tilling Depth (Max.)	8 in
Support Stand	Standard
Hitch	CAT 1 & 2, CAT 1 Quick-Hitch
Knife Type	‘C’
Number of Knives	54
Number of Flanges	9
Recommended PTO HP (Min/Max)	40 / 70
Rotor Speed (RPM)	185 / 208 / 235 / 266 (4-speed gearbox)
Driveline Size	CAT 4
Driveline Protection	Slip Clutch
Housing Thickness	4mm
End Plate Thickness	8mm
Rotor Drive Type	Gear
Tine Rotation	Forward
Approx. Weight	992 lbs

Condition	New
Model	SRM81V

Features

Drive System & Power

Heavy-Duty Gear Rotor Drive
A massive gear rotor drive system runs in an enclosed oil bath for maximum reliability and superior quality in extreme conditions.

4-Speed Gearbox
Rotor speeds of 185, 208, 235, or 266 RPM let operators match performance to soil conditions.

CAT 4 Driveline with Slip-Clutch Protection
A heavy-duty, fully-shielded driveline stays in-line with the tractor PTO for reduced wear and greater operator safety.

Tilling Performance

Six Replaceable Hardened Knives
Standard hardened knives deliver long wear and easier maintenance.

Adjustable Skid Shoes
Skid shoes help maintain the desired tilling depth, up to a maximum of 8 inches.

Adjustable Rear Deflector
The rear deflector adjusts to control the finish performed on tilled soil.

Frame & Hitch

Heavy-Duty Hitch & A-Frame, Quick-Hitch Compatible
A rugged hitch and A-frame support the unit, and Quick-Hitch compatibility makes hookup fast and simple.
