RX Series

Description

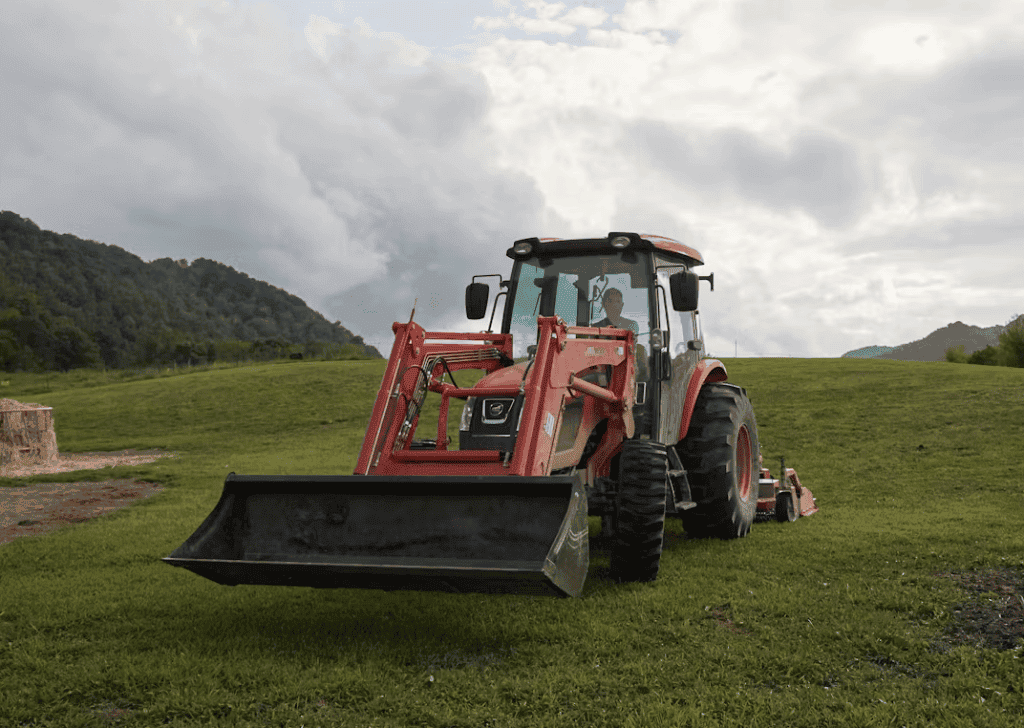

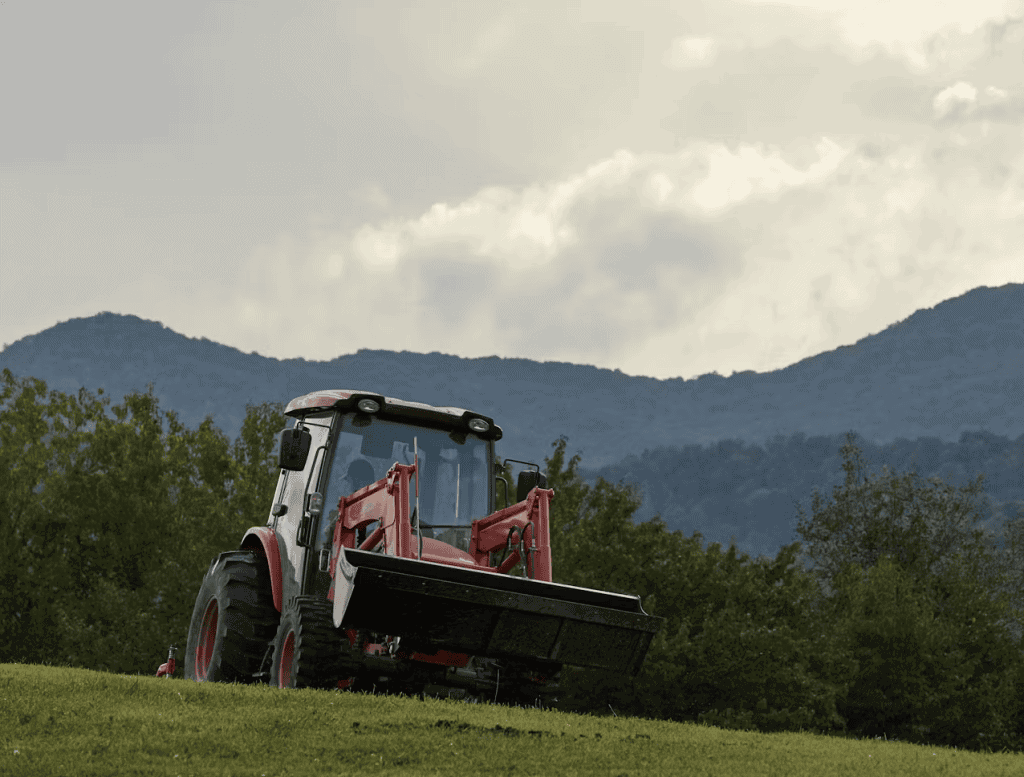

The Kioti RX Series is where the NX lineup levels up for serious farm and ranch work. Fourteen configurations put 66 to 73.10 horsepower behind push-button 4WD, differential locks, and PTO engagement. That combination makes hauling hay and managing livestock take less effort. Manual synchro shuttle or power shuttle transmissions are available. Select power shuttle models also add a creeper gear for extra-low crawl speeds during heavy loader or attachment work. Cab and open-station configurations are both offered across the lineup. Inside the cab, a climate-controlled environment and a fully adjustable, suspension-cushioned seat keep operators comfortable through long days. A vertically opening hood improves forward visibility and speeds up routine maintenance checks. Every RX Series tractor also ships with wet disc brakes, hydrostatic power steering, and full lighting for low-light safety. KIOTI Connect adds real-time diagnostics and maintenance tracking through a smartphone app. Parallel Ag carries the complete Kioti RX Series lineup for buyers who need more muscle than a compact tractor. Our team can match horsepower and transmission to the job.

Compare Models

14 models to choose from. Click any model below to see full specs.

RX6620 | 66 HP | Manual Synchro Shuttle

Model	Kioti RX6620
Engine	66 hp (49.20 kW), Turbo Diesel
Fuel Capacity	22.50 gal (85 L)
Transmission	Manual Synchro Shuttle, 12F / 12R Speeds
Max Travel Speed	21.79 mph (35.07 km/h)
PTO Power	57.60 hp (43 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	17.90 gpm (67.60 lpm)
Three-Point Hitch	Category 2, 3,594 lb (1,630 kg) Lift Capacity
Ground Clearance	16.50 in (420 mm)
Turning Radius	10.20 ft (3.10 m)
Weight	5,202 lb (2,360 kg)

RX6620 Cab | 66 HP | Manual Synchro Shuttle Cab

Model	Kioti RX6620 Cab
Engine	66 hp (49.20 kW), Turbo Diesel
Fuel Capacity	25 gal (95 L)
Transmission	Manual Synchro Shuttle, 12F / 12R Speeds
Max Travel Speed	21.79 mph (35.07 km/h)
PTO Power	57.60 hp (43 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	17.90 gpm (67.60 lpm)
Three-Point Hitch	Category 2, 3,594 lb (1,630 kg) Lift Capacity
Ground Clearance	16.50 in (420 mm)
Turning Radius	10.20 ft (3.10 m)
Weight	5,798 lb (2,630 kg)

RX6620P | 66 HP | Manual Power Shuttle

Model	Kioti RX6620P
Engine	66 hp (49.20 kW), Turbo Diesel
Fuel Capacity	22.50 gal (85 L)
Transmission	Manual Power Shuttle, 12F / 12R Speeds
Max Travel Speed	21.79 mph (35.07 km/h)
PTO Power	57.60 hp (43 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	17.90 gpm (67.60 lpm)
Three-Point Hitch	Category 2, 3,594 lb (1,630 kg) Lift Capacity
Ground Clearance	16.50 in (420 mm)
Turning Radius	10.20 ft (3.10 m)
Weight	5,148 lb (2,335 kg)

RX6620P Cab | 66 HP | Manual Power Shuttle Cab

Model	Kioti RX6620P Cab
Engine	66 hp (49.20 kW), Turbo Diesel
Fuel Capacity	25 gal (95 L)
Transmission	Manual Power Shuttle, 12F / 12R Speeds
Max Travel Speed	21.79 mph (35.07 km/h)
PTO Power	57.60 hp (43 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	17.90 gpm (67.60 lpm)
Three-Point Hitch	Category 2, 3,594 lb (1,630 kg) Lift Capacity
Ground Clearance	16.50 in (420 mm)
Turning Radius	10.20 ft (3.10 m)
Weight	5,732 lb (2,600 kg)

RX6640P | 66.40 HP | Manual Power Shuttle

Model	Kioti RX6640P
Engine	66.40 hp (49.50 kW), Turbo Diesel
Fuel Capacity	26.40 gal (100 L)
Transmission	Manual Power Shuttle, 12F / 12R Speeds
Max Travel Speed	23.90 mph (38.46 km/h)
PTO Power	54.90 hp (40.90 kW), 540 / 540E RPM
Steering	Hydrostatic Power Steering
Hydraulic Pump Capacity	20.60 gpm (78 lpm)
Three-Point Hitch	Category 2, 4,327 lb (1,963 kg) Lift Capacity
Ground Clearance	15.75 in (400 mm)
Turning Radius	12.80 ft (3.90 m)
Weight	6,051 lb (2,745 kg)

RX6640P Cab | 66.40 HP | Manual Power Shuttle Cab

Model	Kioti RX6640P Cab
Engine	66.40 hp (49.50 kW), Turbo Diesel
Fuel Capacity	26.40 gal (100 L)
Transmission	Manual Power Shuttle, 12F / 12R Speeds
Max Travel Speed	23.90 mph (38.50 km/h)
PTO Power	54.90 hp (40.90 kW), 540 / 540E RPM
Steering	Hydrostatic Power Steering
Hydraulic Pump Capacity	20.60 gpm (78 lpm)
Three-Point Hitch	Category 2, 4,327 lb (1,963 kg) Lift Capacity
Ground Clearance	15.75 in (400 mm)
Turning Radius	12.80 ft (3.90 m)
Weight	6,814 lb (3,091 kg)

RX7320 | 73 HP | Manual Synchro Shuttle

Model	Kioti RX7320
Engine	73 hp (54.40 kW), Turbo Diesel
Fuel Capacity	22.50 gal (85 L)
Transmission	Manual Synchro Shuttle, 12F / 12R Speeds
Max Travel Speed	23.53 mph (37.86 km/h)
PTO Power	63 hp (47 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	19.20 gpm (72.80 lpm)
Three-Point Hitch	Category 2, 2,716 lb (1,232 kg) Lift Capacity
Ground Clearance	17.30 in (440 mm)
Turning Radius	11.20 ft (3.40 m)
Weight	5,589 lb (2,535 kg)

RX7320 Cab | 73 HP | Manual Synchro Shuttle Cab

Model	Kioti RX7320 Cab
Engine	73 hp (54.40 kW), Turbo Diesel
Fuel Capacity	25 gal (95 L)
Transmission	Manual Synchro Shuttle, 12F / 12R Speeds
Max Travel Speed	23.53 mph (37.86 km/h)
PTO Power	63 hp (47 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	19.20 gpm (72.80 lpm)
Three-Point Hitch	Category 2, 2,716 lb (1,232 kg) Lift Capacity
Ground Clearance	17.30 in (440 mm)
Turning Radius	11.20 ft (3.40 m)
Weight	6,162 lb (2,795 kg)

RX7320P | 73 HP | Manual Power Shuttle

Model	Kioti RX7320P
Engine	73 hp (54.40 kW), Turbo Diesel
Fuel Capacity	22.50 gal (85 L)
Transmission	Manual Power Shuttle, 12F / 12R Speeds
Max Travel Speed	23.53 mph (37.86 km/h)
PTO Power	63 hp (47 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	19.20 gpm (72.80 lpm)
Three-Point Hitch	Category 2, 2,716 lb (1,232 kg) Lift Capacity
Ground Clearance	17.30 in (440 mm)
Turning Radius	11.20 ft (3.40 m)
Weight	5,600 lb (2,540 kg)

RX7320PC Cab | 73 HP | Manual Power Shuttle Cab

Model	Kioti RX7320PC Cab
Engine	73 hp (54.40 kW), Turbo Diesel
Fuel Capacity	25 gal (95 L)
Transmission	Manual Power Shuttle, 12F / 12R Speeds
Max Travel Speed	23.53 mph (37.86 km/h)
PTO Power	63 hp (47 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	19.20 gpm (72.80 lpm)
Three-Point Hitch	Category 2, 2,716 lb (1,232 kg) Lift Capacity
Ground Clearance	17.30 in (440 mm)
Turning Radius	11.20 ft (3.40 m)
Weight	6,162 lb (2,795 kg)

RX7320PC Cab (Creeper) | 73 HP | Manual Power Shuttle with Creeper Cab

Model	Kioti RX7320PC Cab (Creeper)
Engine	73 hp (54.40 kW), Turbo Diesel
Fuel Capacity	25 gal (95 L)
Transmission	Manual Power Shuttle with Creeper, 24F / 24R Speeds
Max Travel Speed	23.53 mph (37.86 km/h)
PTO Power	63 hp (47 kW), 540 RPM
Steering	Mechanical
Hydraulic Pump Capacity	19.20 gpm (72.80 lpm)
Three-Point Hitch	Category 2, 2,716 lb (1,232 kg) Lift Capacity
Ground Clearance	17.30 in (440 mm)
Turning Radius	11.20 ft (3.40 m)
Weight	6,162 lb (2,795 kg)

RX7340P | 73.10 HP | Manual Power Shuttle

Model	Kioti RX7340P
Engine	73.10 hp (54.50 kW), Turbo Diesel
Fuel Capacity	26.40 gal (100 L)
Transmission	Manual Power Shuttle, 12F / 12R Speeds
Max Travel Speed	23.90 mph (38.50 km/h)
PTO Power	60.90 hp (45.40 kW), 540 / 540E RPM
Steering	Hydrostatic Power Steering
Hydraulic Pump Capacity	20.60 gpm (78 lpm)
Three-Point Hitch	Category 2, 4,327 lb (1,963 kg) Lift Capacity
Ground Clearance	15.75 in (400 mm)
Turning Radius	12.80 ft (3.90 m)
Weight	6,252 lb (2,836 kg)

RX7340P Cab | 73.10 HP | Manual Power Shuttle Cab

Model	Kioti RX7340P Cab
Engine	73.10 hp (54.50 kW), Turbo Diesel
Fuel Capacity	26.40 gal (100 L)
Transmission	Manual Power Shuttle, 12F / 12R Speeds
Max Travel Speed	23.90 mph (38.50 km/h)
PTO Power	60.90 hp (45.40 kW), 540 / 540E RPM
Steering	Hydrostatic Power Steering
Hydraulic Pump Capacity	20.60 gpm (78 lpm)
Three-Point Hitch	Category 2, 4,327 lb (1,963 kg) Lift Capacity
Ground Clearance	15.75 in (400 mm)
Turning Radius	12.80 ft (3.90 m)
Weight	6,814 lb (3,091 kg)

RX7340PC Cab (Creeper) | 73.10 HP | Manual Power Shuttle with Creeper Cab

Model	Kioti RX7340PC Cab (Creeper)
Engine	73.10 hp (54.50 kW), Turbo Diesel
Fuel Capacity	26.40 gal (100 L)
Transmission	Manual Power Shuttle with Creeper, 20F / 20R Speeds
Max Travel Speed	23.90 mph (38.50 km/h)
PTO Power	60.90 hp (45.40 kW), 540 / 540E RPM
Steering	Hydrostatic Power Steering
Hydraulic Pump Capacity	20.60 gpm (78 lpm)
Three-Point Hitch	Category 2, 4,327 lb (1,963 kg) Lift Capacity
Ground Clearance	15.75 in (400 mm)
Turning Radius	12.80 ft (3.90 m)
Weight	6,814 lb (3,091 kg)

Condition

New

Features

Performance & Power

Eco-Friendly Diesel Engine The whisper-quiet, eco-friendly Tier 4 CRDI diesel engine improves fuel efficiency while keeping noise levels down, so operators can run PTO implements and loader attachments for a full day without excess fuel cost or cab fatigue.

Dependable Workhorse Push-button 4WD and differential locks engage instantly with a single tap, and the rear PTO is engaged the same way. Operators stay focused on the task in front of them instead of wrestling with mechanical levers.

Safety Features Every RX Series model is equipped with wet disc brakes, hydrostatic power steering, and an adjustable seat belt. Headlights, safety lights, and a rear work light keep attachments and drawbars visible even in low-light conditions.

Comfort & Technology

Operator Comfort Operators stay cool and comfortable in the climate-controlled cab, while the plush, fully adjustable seat with generous suspension absorbs bumps and jolts during long days in the field.

Streamlined Hood Design A vertically opening hood improves visibility with an unobstructed view forward, while also making routine maintenance quicker and easier to access.

KIOTI Connect Capable KIOTI Connect gives owners an intuitive app for seamless equipment management, with real-time insights, maintenance tracking, and remote diagnostics right from a smartphone.
