Overall Width (in)57
Working Width (in)

47

Weight / Shipping Weight (lbs)502 / 508
Tractor HitchLimited CAT 1 and CAT 1
Quick-hitch CompatibleYes
Drive TypeGearbox
Gearbox Drain PlugYes
Gearbox HousingHeavy-duty cast iron
Number of Tines per Flange4 C-type
Number of Tines / Number of Flanges24 / 6
PTO Driveline ProtectionSlip clutch
Rotor Speed (rpm)210
Tractor PTO HP15-35
Tractor PTO Speed (rpm)540

Features

  • Available in forward or reverse rotation
  • Tapered tailgate removes furrow for a finished seedbed
  • Adjustable skid shoes for easy depth control
  • Innovative double-flange blade support

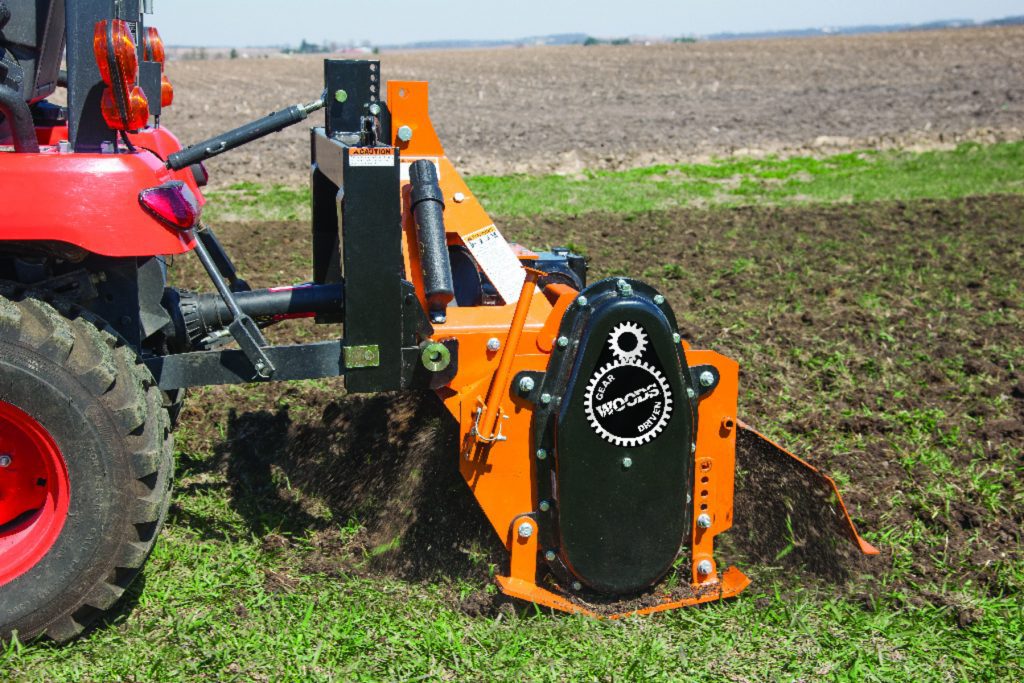

  • Robust gear-driven side drive provides years of reliable service and requires far less maintenance than chain-driven units
  • Fixed offset tiller width covers tire tracks with each pass
  • 3-year warranty on input gearbox (includes seals)
