RR420 Rotary Rake

Description

RR420 ROTARY RAKE FEATURES

The adjustable front cylinder allows users to fine tune pitch the rake.

A constant velocity P.T.O. with slip clutch lets the operator make even, uniform windows even in tight corners.

Tine arm storage.

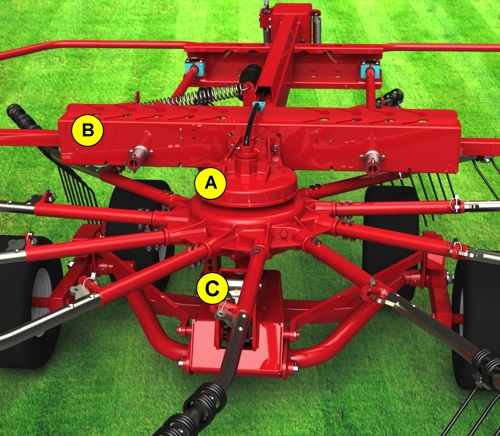

Sealed oil bath gearbox.

Hydraulic lift cylinder.

Tandem axle walking beam with 18×8.5×8 tires.

Ground height adjustment.

Adjustable swath shield.

Quick remove tine arms.

ConditionNew
ModelRR420 Rotary Rake
RR420
NUMBER OF ARMS11
NUMBER OF DOUBLE TINES PER ARM4
WORKING WIDTH13′ 8″
GEAR BOXSealed in Oil Bath
ROTOR DIAMETER (WORKING WIDTH)11′ 2″
TRANSPORT WIDTH5′ 9″
PTO DRIVELINE WITH SLIP CLUTCH540 rpm Constant Velocity Overload Protects Gearbox
TIRES4 Mounted On Tandem Axles 18X8.5x8
HP REQUIRED30/45
WEIGHT1369 lbs
WARRANTY: SEE OPERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Features

  • The adjustable front cylinder allows users to fine tune pitch the rake.
  • A constant velocity P.T.O. with slip clutch lets the operator make even, uniform windows even in tight corners.
  • Tine arm storage.
  • Sealed oil bath gearbox.
  • Hydraulic lift cylinder.
  • Tandem axle walking beam with 18×8.5×8 tires.
  • Ground height adjustment.
  • Adjustable swath shield.
  • Quick remove tine arms.
