RM7117 ROLLER MIXER

Description

The H&S RM7117 offers the convenience, dependability and smoothness of hydraulically operated feed making on your farm.

Features of the RM7117 include:

The self-contained hydraulic system includes a pulley-driven pump and a 15 gallon reservoir w/filter system provides circulation to cool the oil. The hydraulic motor provides a flow of 12 GPM.

Magnets in either of the machines remove any metal that may accidentally mix with the material entering the mill.

The 240 degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.

A 14″ mixing auger with a 30″ base provides superior mixing uniformity.

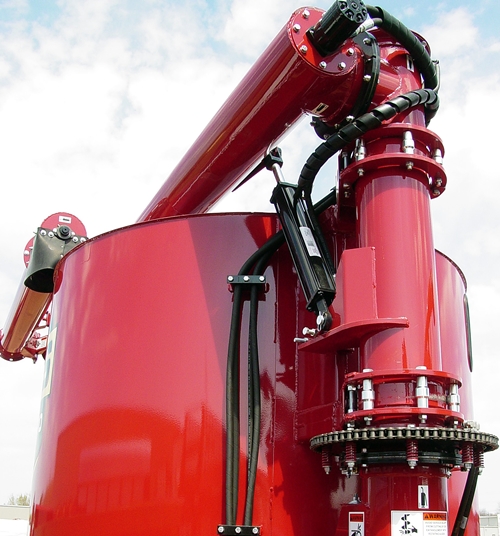

An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered.

Mixer drive systems are shear bolt protected

A large discharge door provides high-capacity unloading.

Mixer feeding attachments and unloading mechanisms are all driven hydraulically.

5-porthole windows allow the operator to see feed levels.

A 14″ mixing auger with a 30″ base provides superior mixing uniformity.

Mixers feature a side mounted supplement hopper.

Transport lights are standard equipment.

OPTIONS

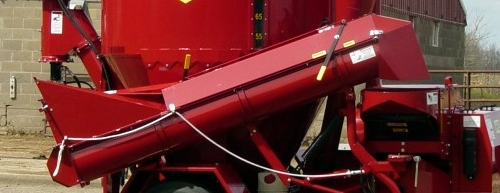

Hydraulic Drive Corn Cob-Style Variable Speed Swinging Intake Auger w/Fold-In Flair

Hydraulic Drive Conventional Variable Speed Swinging Intake Auger w/Fold-In Flair

Rear Supplement Hopper

Digi – Star EZ 2500 Electronic Scale

Digi – Star EZ 3410 Electronic Scale W/External Horn

3′ and 6′ Discharge Auger Extensions

9117  –  1000 RPM PTO In Lieu Of Standard 540 RPM PTO

Mill Screens

ConditionNew
ModelRM7117
RM7117 ROLLER MIXER
TANK CAPACITY-BUSHEL135
TANK CAPACITY-CUBIC FT.167
TANK DIAMETER74″
DIAMETER OF MIXING AUGER14″ Diameter w/30″ Base
LADDERFoldable Rear Mount Non-Slip
TANK WINDOWS5-Port Hole Style
OVERALL HEIGHT10′ 8″
OVERALL WIDTHN/A
OVERALL LENGTH15′
GROUND CLEARANCE12″
SUPPLEMENT HOPPERSide Mounted | Optional Rear Hopper
FEEDERStandard Gravity Hopper | Optional Swinging Intake Augers
PTO DRIVE540 RPM
H.P. REQUIREMENT540 RPM up to 125 HP
TIRES12.5L – 15 – 20 Ply
JACKStandard
WEIGHTN/A
DRIVE SYSTEM
SELF-CONTAINEDIncludes Pump, 15 Gallon Reservoir w/Filter and Pressure Relief Valve
PUMP PRESSURE3,200 PSI Maximum
OIL FLOW12 G.P.M.
DISCHARGE AUGER SYSTEM
UNLOADING AUGER TUBE DIAMETER8″
UNLOADING AUGER LENGTH12′
UNLOADING AUGER ROTATION240 Degrees
UNLOADING AUGER REACH STANDARDApprox. 19′ at 53 Degrees
UNLOADING AUGER W/3′ EXTENSIONApprox. 21′ 6″ at 53 Degrees
UNLOADING AUGER W/6′ EXTENSIONApprox. 23′ 10″ at 53 Degrees
ROLLER MILL SPECIFICATIONS
Rolls2 – 18″ Wide x 16 Diameter Chill Cast Rolls
Roll Drive540 RPM Direct
Grooves Per Inch (GPI)Choice of 4, 5, 6, 8, 10, 12 or 15 GPI Rolls
Roll ProtectionLeaf Spring
MagnetsTop Hopper w/Grate Magnet
WARRANTY: SEE OPERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Features

  • The self-contained hydraulic system includes a pulley-driven pump and a 15 gallon reservoir w/filter system provides circulation to cool the oil. The hydraulic motor provides a flow of 12 GPM.
  • Magnets in either of the machines remove any metal that may accidentally mix with the material entering the mill.
  • The 240 degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.
  • A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
  • An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered.
  • Mixer drive systems are shear bolt protected
  • A large discharge door provides high-capacity unloading.
  • Mixer feeding attachments and unloading mechanisms are all driven hydraulically.
  • 5-porthole windows allow the operator to see feed levels.
  • A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
  • Mixers feature a side mounted supplement hopper.
  • Transport lights are standard equipment.

OPTIONS

  • Hydraulic Drive Corn Cob-Style Variable Speed Swinging Intake Auger w/Fold-In Flair
  • Hydraulic Drive Conventional Variable Speed Swinging Intake Auger w/Fold-In Flair
  • Rear Supplement Hopper
  • Digi – Star EZ 2500 Electronic Scale
  • Digi – Star EZ 3410 Electronic Scale W/External Horn
  • 3′ and 6′ Discharge Auger Extensions
  • 9117  –  1000 RPM PTO In Lieu Of Standard 540 RPM PTO
  • Mill Screens
