Massey Ferguson RB1 Series Round Balers

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

Efficient. Reliable. The Next Elevation in Baling.

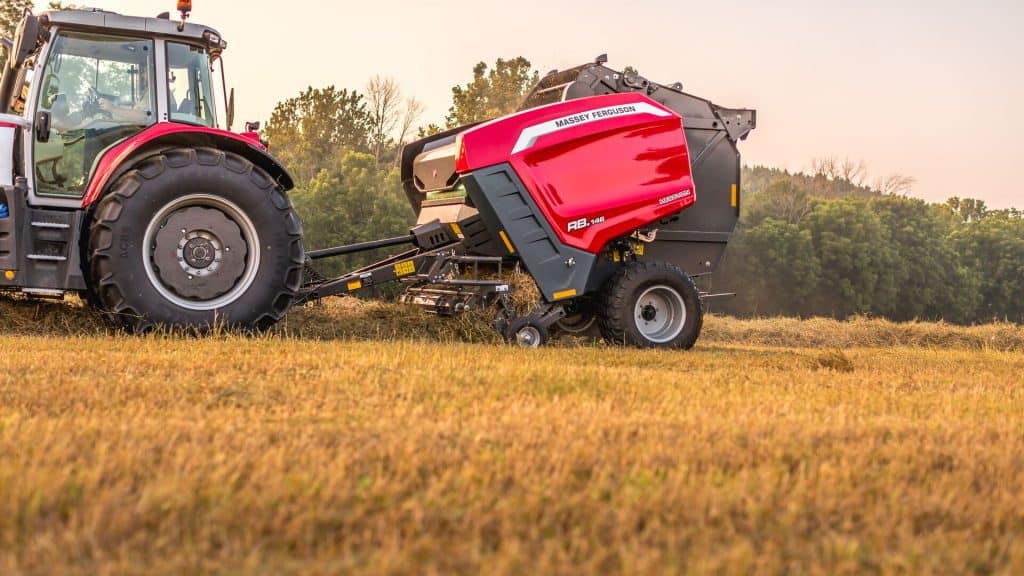

The Hesston by Massey Ferguson 1 Series round balers deliver dense, consistent bales with the simplicity and dependability North American hay producers count on. From a low-maintenance camless pickup and undershot rotor feed to ISOBUS touchscreen control and an all-new front-load net system, the RB.146 and RB.156 are built to keep you productive through the longest days in the field.

Download Brochure

Compare Models

Two models to choose from. Click any model below to see full specs.

RB.146 | 4×6 Bale | 80 HP
Model RB.146
Bale Size 4 x 6 ft. (1.22 x 1.83 m)
Functional Bale Size 30 – 72 in (0.76 – 1.83 m)
Chamber Width 48.4 in (1.23 m)
Pick-up Width 88.5 in (2.25 m)
Tine to Tine 73 in (1.85 m)
Flare to Flare 77 in (1.95 m)
Pick-up Tines 5 rows / 150 teeth
PTO Speed Std. 540 — opt. 1,000 RPM
Required PTO HP 80 HP (60 kW)
Hydraulic (Manual Tailgate) 2 DA — standard
3 DA — w/ opt. hydraulic floor
Hydraulic (Auto Tailgate, no Load Sense) 2 DA w/ 1 LP return recommended
1 DA for w/ opt. drop floor standard
Hydraulic (Auto Tailgate, with Load Sense) 1 DA pickup & 1 power beyond w/ load sense for auto tailgate
1 DA for w/ opt. drop floor
Hydraulic Flow Requirement 12 GPM minimum / 20 GPM recommended
Tire Size Std. 500/55-20 — opt. 21.5LR16
Control ISOBUS / color touch screen monitor
Binding Mesh & twine
Belts 6 w/lacing
Bale Density Hydraulic
Bale Shape Sensors Optional
Drop Floor Optional
Approx. Weight 7,500 lbs (3,401 kg)
RB.156 | 5×6 Bale | 100 HP
Model RB.156
Bale Size 5 x 6 ft. (1.53 x 1.83 m)
Functional Bale Size 30 – 72 in (0.76 – 1.83 m)
Chamber Width 61.5 in (1.56 m)
Pick-up Width 94.5 in (2.4 m)
Tine to Tine 83 in (2.11 m)
Flare to Flare 87.5 in (2.22 m)
Pick-up Tines 5 rows / 170 teeth
PTO Speed Std. 540 — opt. 1,000 RPM
Required PTO HP 100 HP (75 kW)
Hydraulic (Manual Tailgate) 2 DA — standard
3 DA — w/ opt. hydraulic floor
Hydraulic (Auto Tailgate, no Load Sense) 2 DA w/ 1 LP return recommended
1 DA for w/ opt. drop floor standard
Hydraulic (Auto Tailgate, with Load Sense) 1 DA pickup & 1 power beyond w/ load sense for auto tailgate
1 DA for w/ opt. drop floor
Hydraulic Flow Requirement 12 GPM minimum / 20 GPM recommended
Tire Size Std. 500/55-20 — opt. 21.5LR16
Control ISOBUS / color touch screen monitor
Binding Mesh & twine
Belts 8 w/lacing
Bale Density Hydraulic
Bale Shape Sensors Standard
Drop Floor Optional
Approx. Weight 8,300 lbs (3,765 kg)
Condition New
Model RB1 Series Round Baler

Specifications

Series Hesston by Massey Ferguson 1 Series Round Balers
Models RB.146 | RB.156
Bale Size 4 x 6 ft. (RB.146) | 5 x 6 ft. (RB.156)
Functional Bale Diameter 30 – 72 in (0.76 – 1.83 m)
Pickup Width (Flare to Flare) 77 in (RB.146) | 87.5 in (RB.156)
Required PTO HP 80 HP (60 kW) RB.146 | 100 HP (75 kW) RB.156
PTO Speed Std. 540 — opt. 1,000 RPM
Binding Mesh & twine
Formation Belts 6 w/lacing (RB.146) | 8 w/lacing (RB.156)
Bale Density Hydraulic
Control ISOBUS / color touch screen monitor
Hydraulic Flow 12 GPM minimum / 20 GPM recommended
Tire Size Std. 500/55-20 (opt. 21.5LR16)
Approx. Weight 7,500 lbs (3,401 kg) RB.146 | 8,300 lbs (3,765 kg) RB.156

Features

Bale Chamber & Pickup

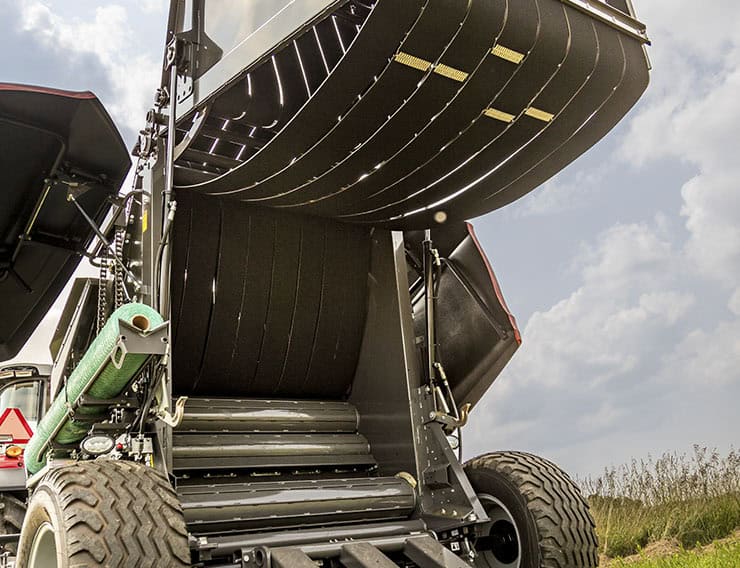

Feed Channel & Undershot Rotor
The undershot rotor ensures uninterrupted crop flow into the vertical bale chamber, propelling material in for a fast, consistent bale start. The design maximizes productivity and ROI even in the harshest windrow conditions.

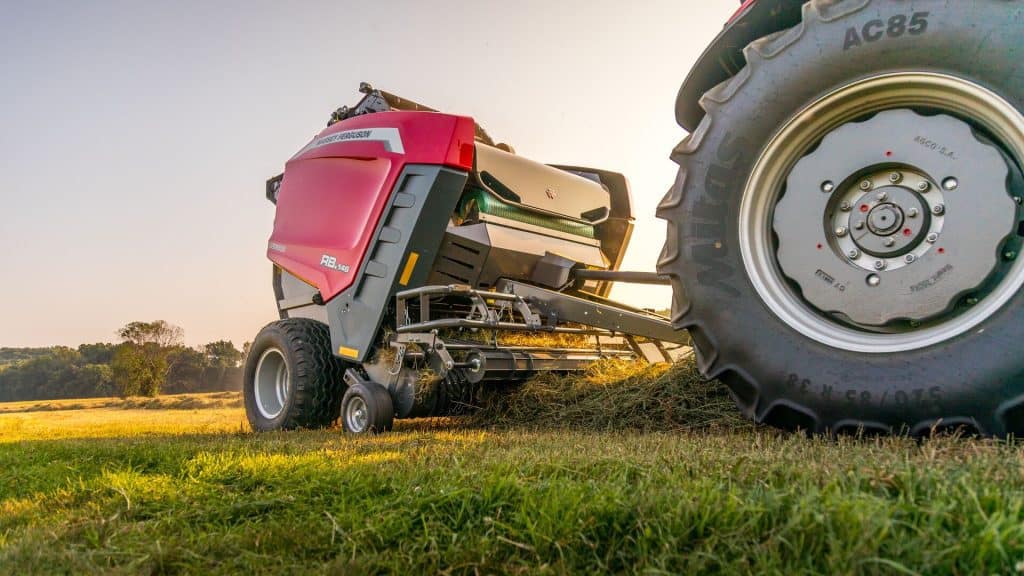

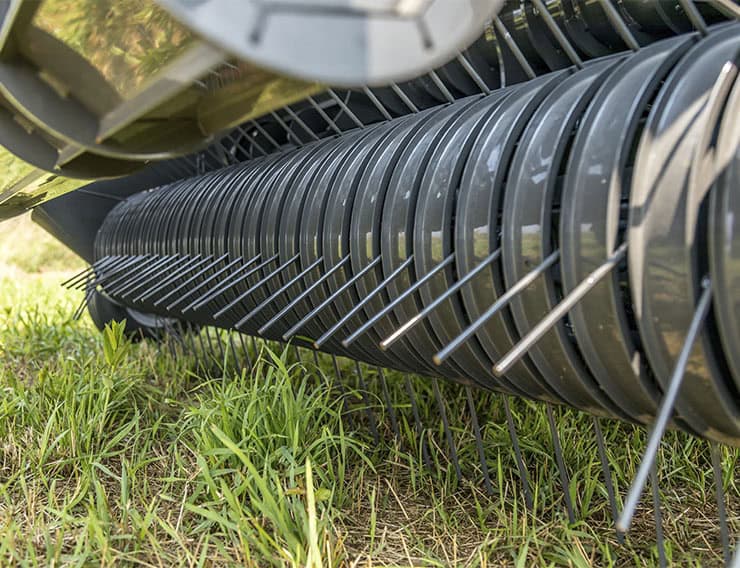

Camless Pickup
The RB.146 has a 77″ and the RB.156 has an 87.5″ flare-to-flare pickup width, and comes standard with a camless design. Fewer moving parts mean lower maintenance cost, reduced rolling resistance, less required horsepower and much quieter operation.

Mini Roughtop Formation Belts
Mini Roughtop Belts with an aggressive profile and ultra abrasion resistance ensure quick, consistent bale starting, while spliced ends allow for easy maintenance when needed.

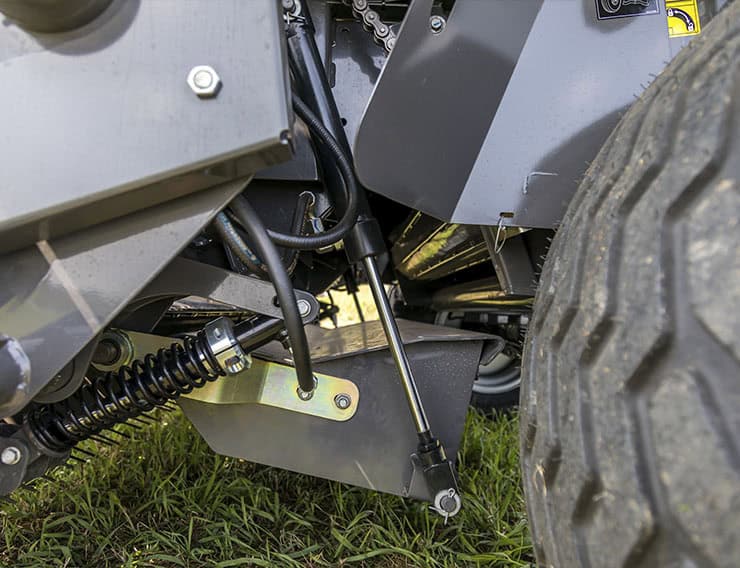

Optional Hydraulic Drop Floor
The optional drop floor gives operators the ability to clear a stoppage without leaving the tractor cab, by hydraulically lowering the feed channel floor to let material pass — minimizing downtime and keeping you baling.

Drive Line & Hydraulics

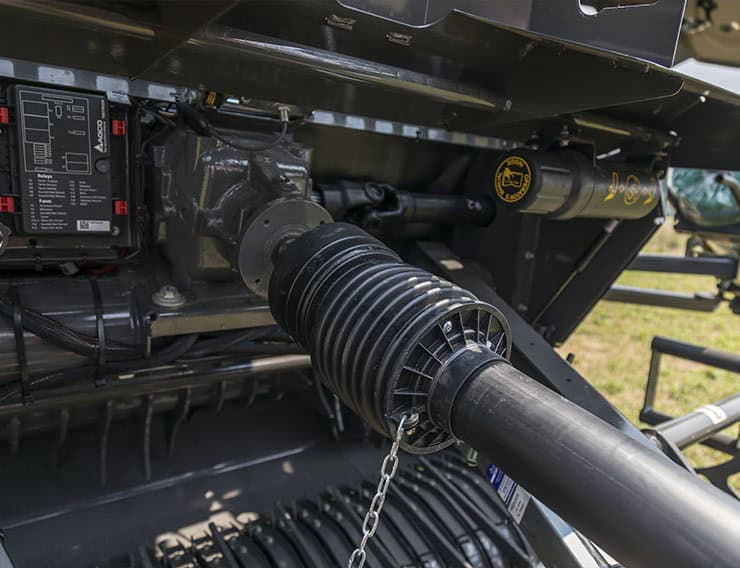

540 or 1,000 RPM PTO
540 or 1,000 RPM PTO options custom-fit the baler to your operation and existing tractor fleet.

Flexible Hydraulic Configuration
Two hydraulic remotes come standard, with a third remote required for the optional Hydraulic Drop Floor. Auto Cycle equipped balers require continuous hydraulic flow, with an optional Power Beyond Load Sense Kit to ensure maximum oil flow and the fastest cycle times.

Chains & Bearings
High-quality, triple-lip sealed bearings deliver extended service life, and two centralized grease banks make daily maintenance quick and efficient. ASME/ANSI 80 and 100 pitch Diamond® Roller Chain ensures maximum service life in a straightforward drive system. An optional chain lube kit further reduces daily maintenance by continually oiling as needed while operating.

Net & Binding System

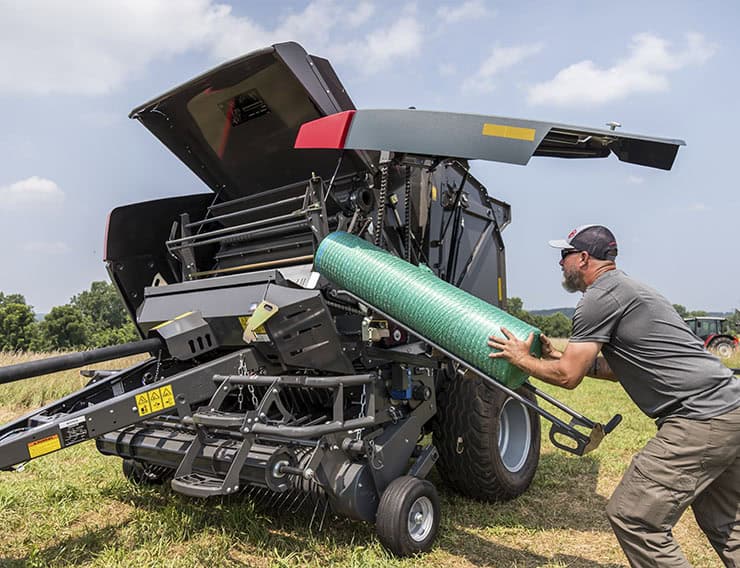

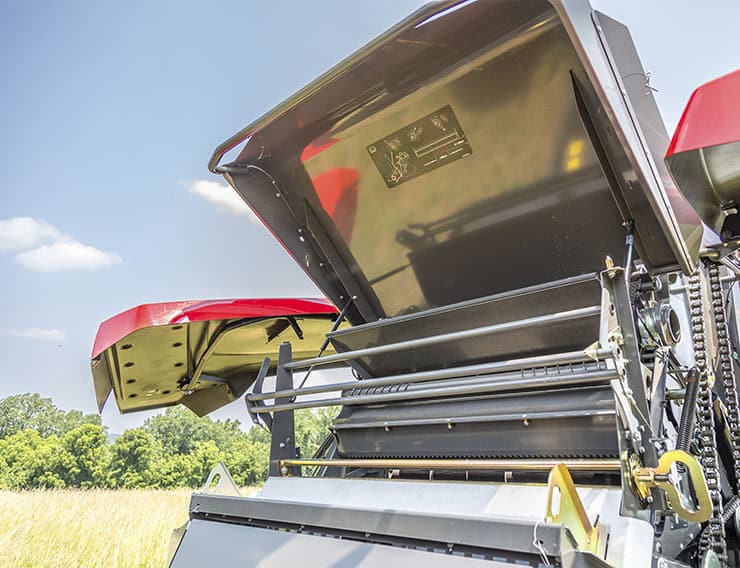

Front Load Net System
The Front Load Net system applies net tighter and cycles faster. Simplicity and reliability were the focal points when designing this all-new net system.

Toolless Tension & “DuckBill” Holder
Single-handed, toolless net tension adjustment combines with a “DuckBill” net holder that mechanically places the net on the face of the bale — eliminating failed net feeds due to uncontrollable environmental factors.

Mesh & Twine Binding
Standard mesh and twine binding gives you flexibility across crop conditions and market requirements.

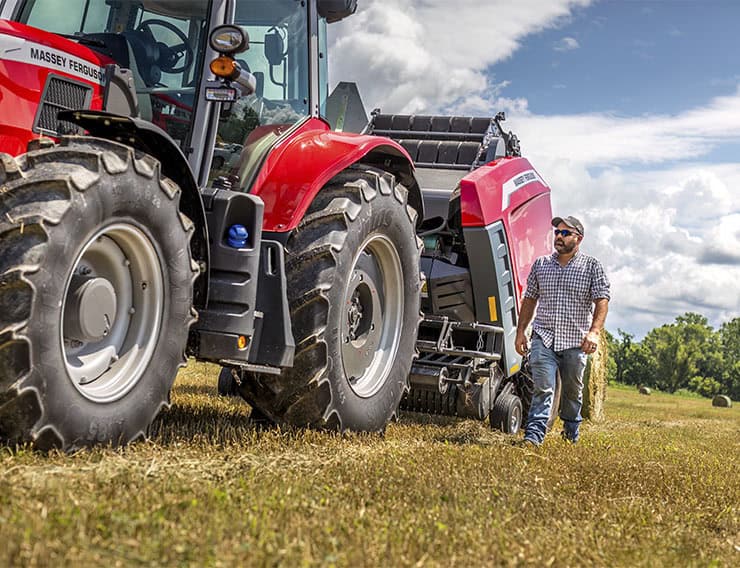

Serviceability & Maintenance

Simple Daily Access
Daily maintenance and checks are made easy by one-piece side shields and swing-away net loading racks that effortlessly open to provide unobstructed access to the centralized grease zerks and chains.

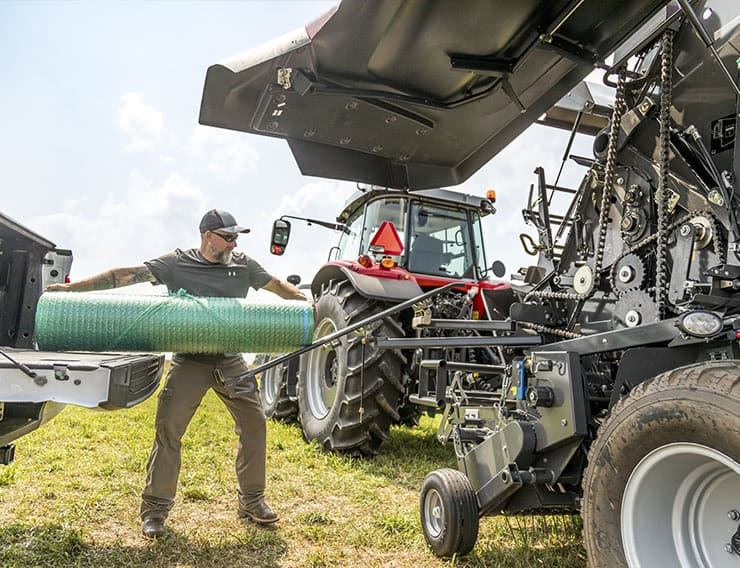

Swing-Away Net Cradle Loader
The swing-away net cradle loader transitions the net roll from storage, to ready, to load in just seconds — so the operator never incurs the full weight of the net roll. Within a few minutes the net is loaded, threaded and tensioned without tools, minimizing the time an operator spends outside the cab.

Technology & Electronics

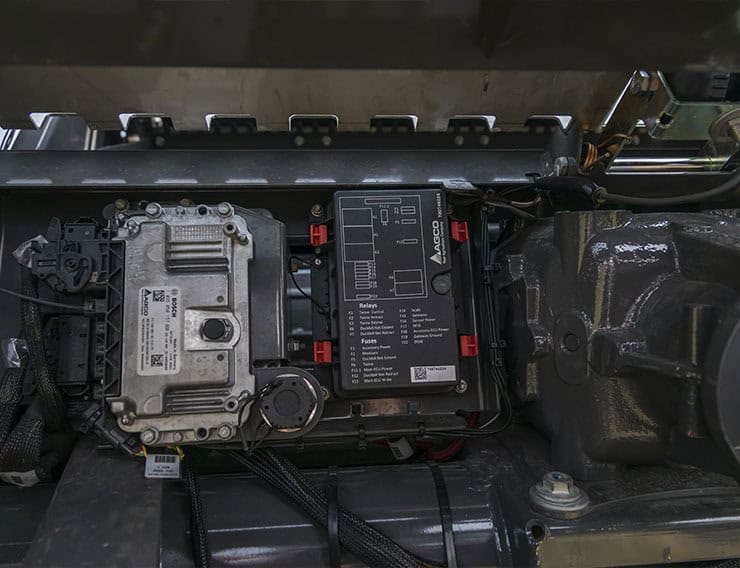

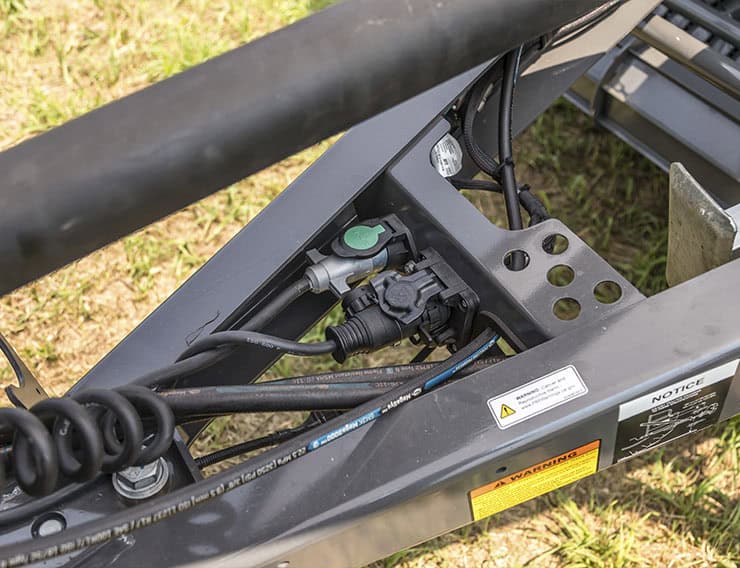

Common Electronic Architecture (CEA)
Cross-platform commonality allows easy integration into any operation. CEA commonizes electronic components, reducing complexity and ensuring the highest quality components for a StraightForward & Dependable experience.

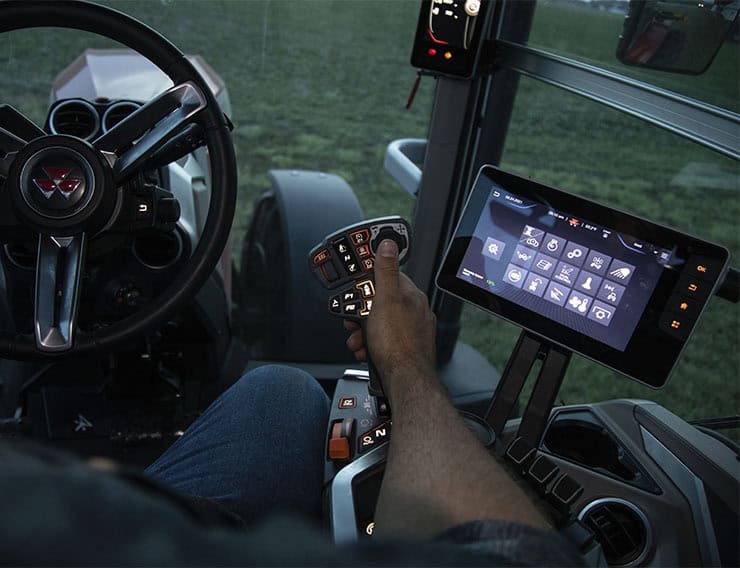

Operator Interface
Baler screens standardize with other balers in the Massey Ferguson family, so operators easily navigate settings such as bale size, number of wraps and bale density with a single touch on the home screen. Bale shape, bale size and baler status appear in vibrant colors for easy viewing in the field.

ISOBUS Compliance
ISOBUS Compliance lets the baler work screen populate in other OEMs’ in-cab ISOBUS terminals.

Tractor Implement Management (TIM)
When paired with TIM-equipped tractors, TIM allows the baler to stop the tractor once a full bale is reached, reducing operator error and fatigue.

Telemetry & On-Board Scales
Massey Ferguson telemetry enables remote monitoring of location, bale count, bale weight (if equipped with scales), moisture and last bale diameter. A seamlessly integrated scale kit lets the operator monitor individual and cumulative bale weight right from the baler monitor.

Bale Cycle Automation

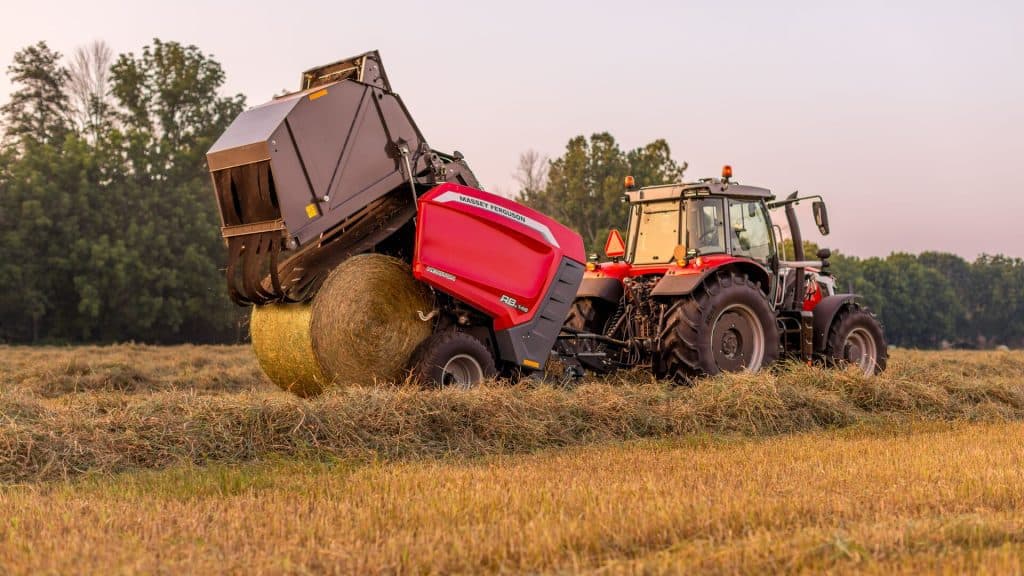

All 1 Series balers can automate the tie cycle, and when equipped with the Auto Tailgate option, bales are wrapped and ejected effortlessly without input from the operator.

Parts & Service

Backed by Parallel Ag
Parallel Ag’s expert parts and service team is here to keep your baler running at peak performance, with knowledgeable staff across all our locations. There’s no cutoff time for parts and service — we’re available to you throughout the lifetime of your machine.

Genuine AGCO Parts
AGCO replacement parts are made to the same high standards as those used on the assembly line, so your equipment stays running like new. Talk to your local Parallel Ag parts team or shop online at parts.agcocorp.com to get the genuine parts you need, fast.

AGCO GenuineCare Maintenance Plans
With predetermined service intervals, you can plan your costs with confidence. Transparent pricing, bundles and discounts help you avoid unexpected downtime and stay focused on your operation.

AGCO Protection Extended Warranty
Ask your Parallel Ag dealer about AGCO Protection, an extended warranty program that prolongs your coverage and safeguards against the cost of sudden breakdowns.
