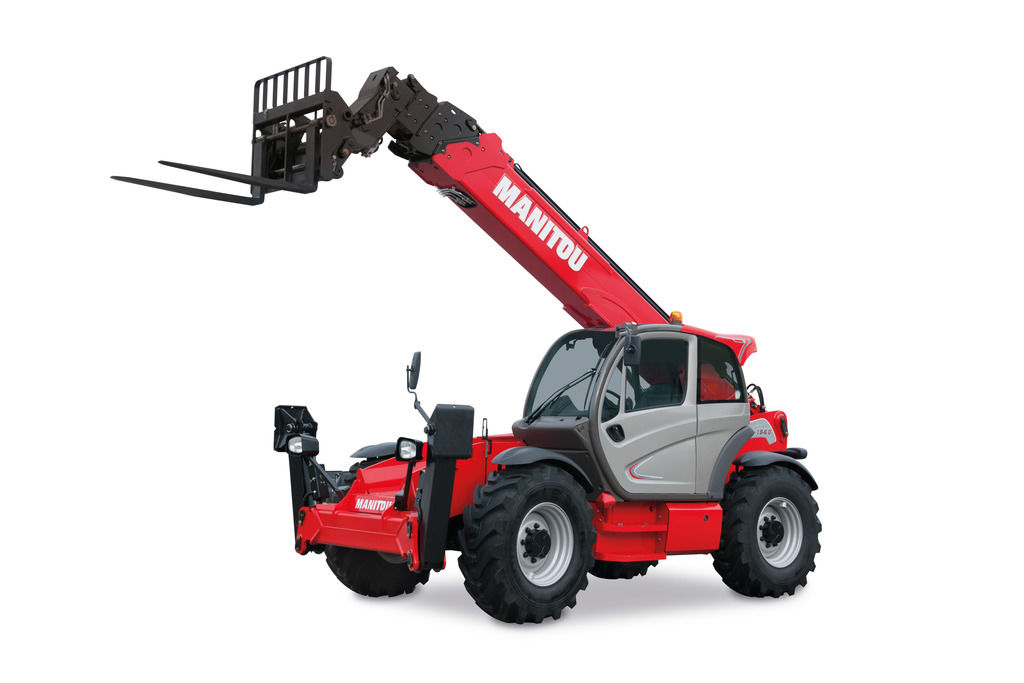

MT 1840

Description

The MT 1840 telehandler is specially designed for high bay/high rise work sites, with a lifting capacity of 4 t up to 18 m in height. Equally at home on uneven terrain, it has a generous ground clearance and tight turning radius so maneuverability never becomes an issue. Additionally excellent lateral and front stability make it a reliable on-site partner.

Robust and design to last, this handler is equipped with a low frame steel door and quality components to ensure longevity. For easy transportability, multiple slinging points have been provided. A true multi-tasker, it can be adapted to meet all of your needs by changing the boom attachment.

ConditionNew
Lifting height57'7"
Lifting capacity8800 lb
Max reach42'11"
Max reach capacity881.84 lb
Drawbar pull16411.05 lbf
Breakout force18321.92 lbf
Moving speed15.5 mph
Lifting time (unladen)16 s
Lowering time (unladen)12 s
Boom extension time (unladen)16 s
Boom retraction time (unladen)13 s
Crowd4 s
Dump4 s
Length (up to the back of the fork)20'7"
Wheelbase length10'1"
Width7'11"
Overall width (stabilizers lowered)12'5"
Height8'2"
Weight (unladen)26014.54 lb
Turning radius13'2"
Ground clearance1'5"
EnergyDiesel
Engine brandPerkins
Engine typeStage IV / Tier 4 Final
Engine manufacturer type854F-E34TA
Power75 KW
Max. Torque @ Rotation430 Nm
InjectionDirect
CoolingWater
Transmission typeTorque converter
Pressure270 bars
Hydraulic oil tank volume35.6 gal
Standard tyresPneumatic
Number of wheels (front/rear)2/2
Number of drive wheels (front/rear)2/2
Number of steering wheels (front/rear)2/2
Tractor European ConformityYes
Parking brakeAutomatic negative handbrake
Driving position noise levels78 dB
Environmental noise levels103 dB
Vibrations affecting hands/arms<2.5 m/s
