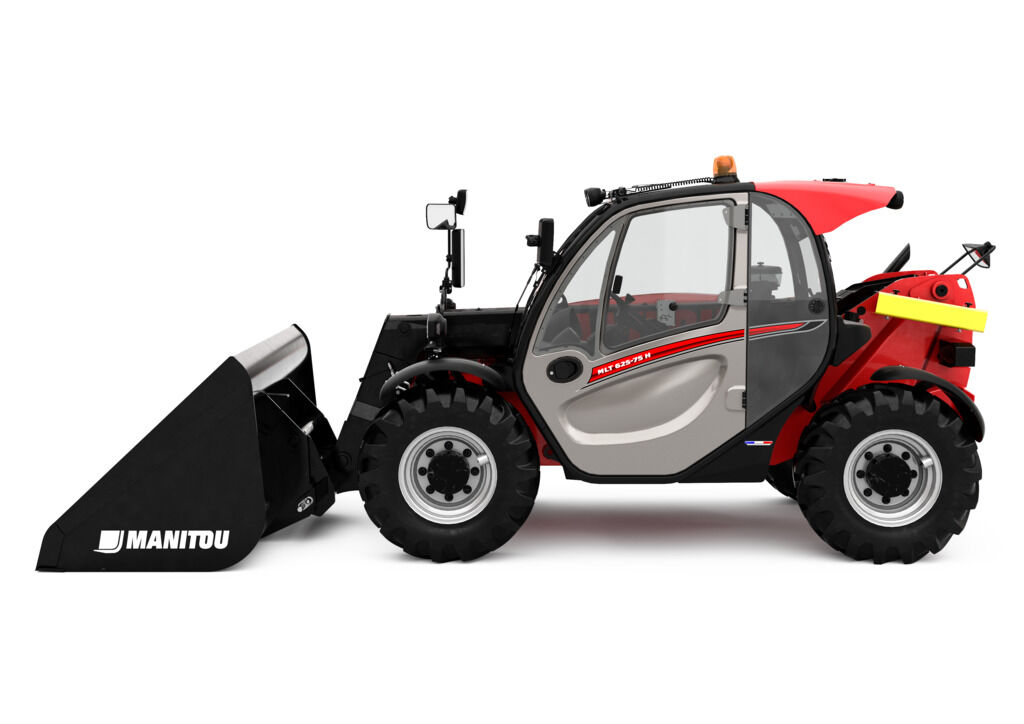

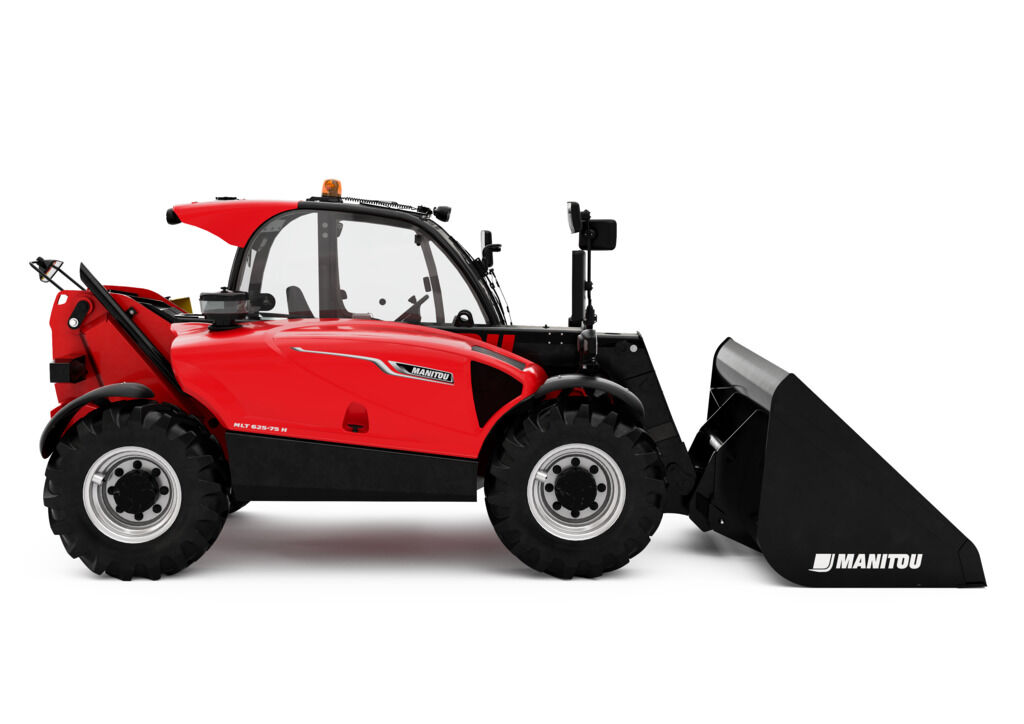

MLT 625-75 H

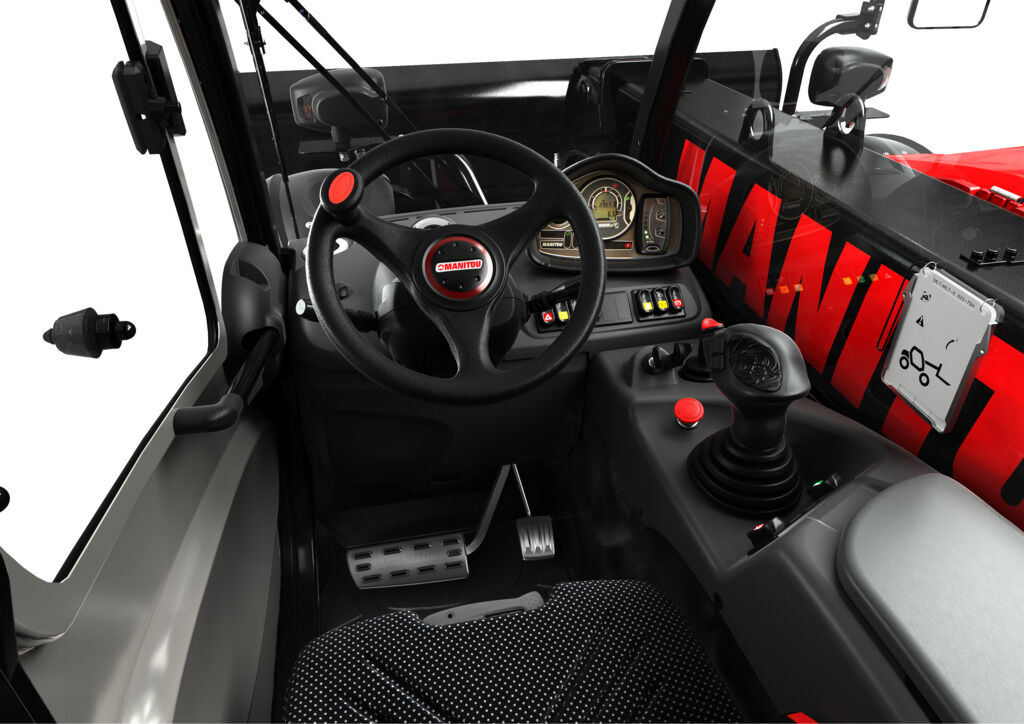

The MLT 625-75 H is an incredibly compact machine. Specially designed for agricultural activities, it will prove to be an asset on your farm for tackling daily handling needs. Its compact dimensions ensure unparalleled maneuverability for access to smaller buildings and tight spaces. The comfort of the driver’s cab, full 360° visibility and JSM (Joystick, Switch & Move) control are just some of the features that make working days safer and less exhausting. The Easy Connect System (ECS) makes swapping boom tip attachments easy and the sheer number available provides you with the versatility your farm requires. Hydraulic movements are precise and smooth and 4 driven and steered wheels combined with 4 steering modes optimize unit flexibility, regardless of the situation.

ModelMLT 625-75 H
Lifting height19'5"
Lifting capacity5512 lb
Max reach10'11"
Breakout force9453 lbf
Lifting time (unladen)7.3 s
Lowering time (unladen)4.95 s
Boom extension time (unladen)5.2 s
Boom retraction time (unladen)3.7 s
Crowd3.2 s
Dump3.2 s
Length (up to the back of the fork)12'11"
Wheelbase length7'7"
Weight (unladen)10851 lb
Turning radius10'1"
Ground clearance1'4"
Engine brandKubota
Engine typeStage 5
Engine manufacturer typeV3307-CR-T-E5B
Power55.4 KW
Max. Torque @ Rotation265 Nm
Number of cylinders4
Total capacity204 in3
Transmission typeHydrostatic
Pressure235 bars
Hydraulic oil tank volume30 gal
Number of wheels (front/rear)2/2
Number of drive wheels (front/rear)2/2
Parking brakeAutomatic negative handbrake
Driving position noise levels76 dB
Environmental noise levels104 dB
Vibrations affecting hands/arms<2.5 m/s


  • Phone support
  • Mechanical cloth-covered seat (Grammer)
  • Front and rear work lights on cab (x4: 2 front + 2 rear)
  • Quick drain fitting
  • Tuner car radio (50 W)
  • Easy Connect System (ECS)
  • Audio warning on reverse movements
  • Auto reversing fan
