Manitou MLA-T 533-145 V+ – ST5

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

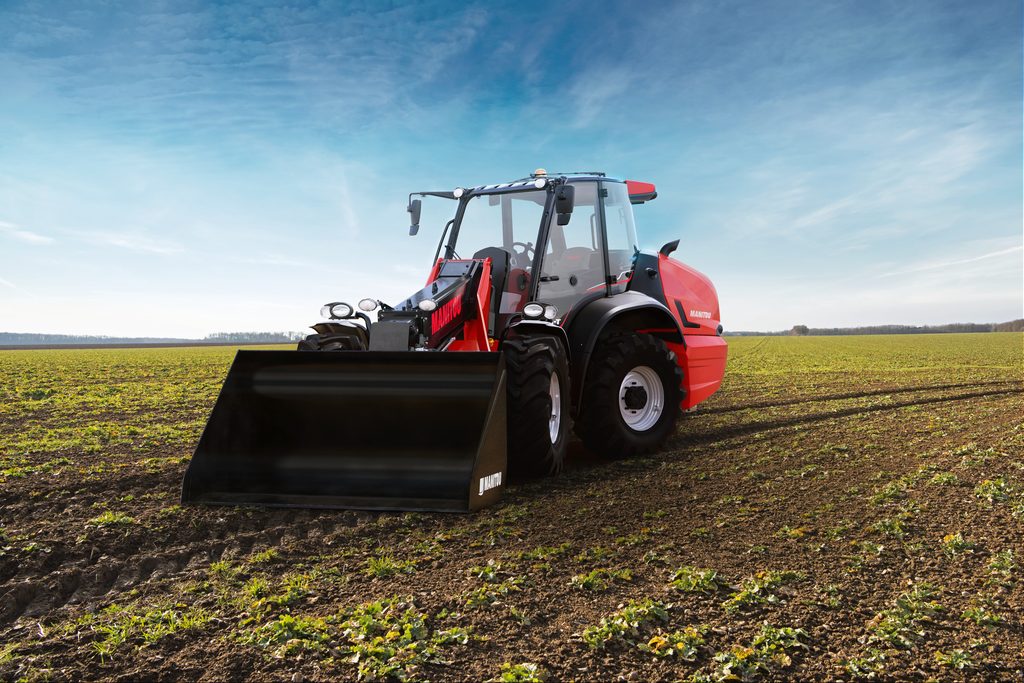

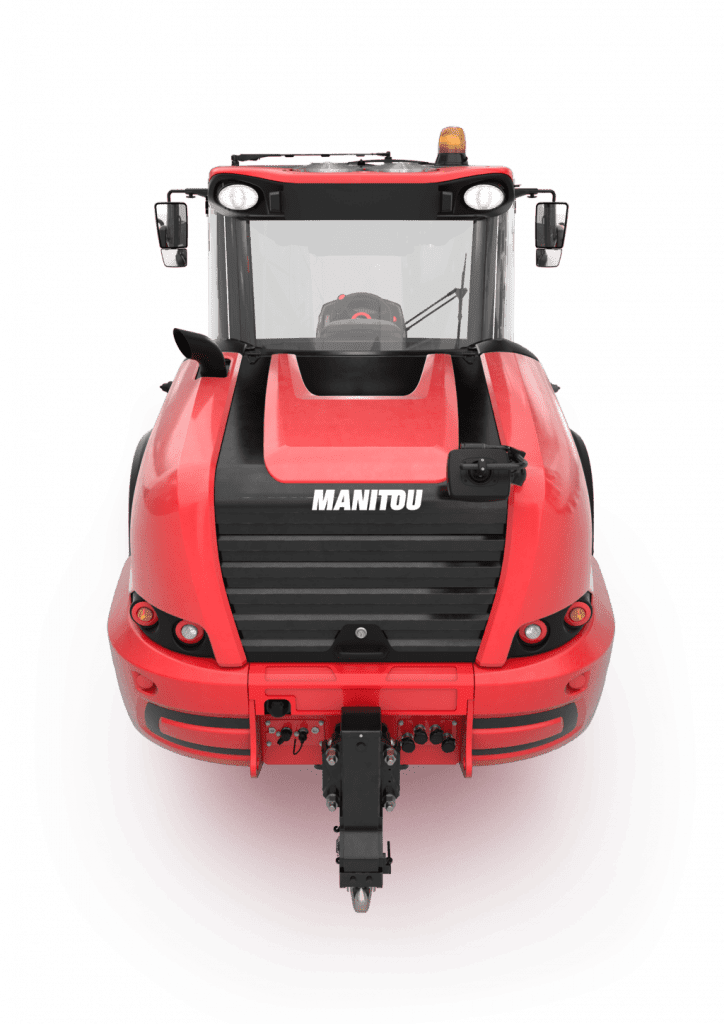

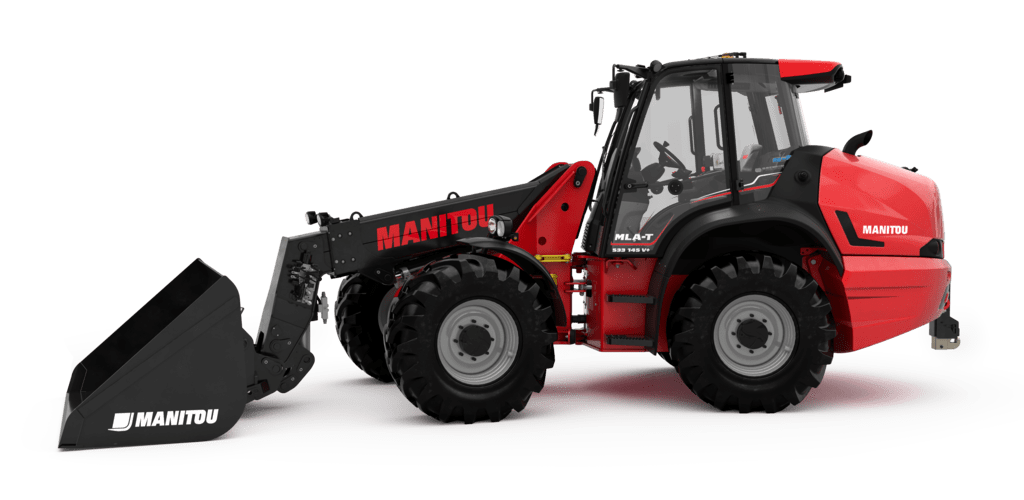

The Manitou MLA-T 533-145 V+ is an articulated telescopic loader built for demanding daily handling work. A telescopic boom cushions jolts while traveling, whether the machine carries a load or runs empty. Four-wheel drive and steering combine with 45-degree articulation for excellent maneuverability on tight sites.

Static tipping load reaches 10,975 lb straight and 9,143 lb at full turn for confident lifting. A Deutz Stage V engine powers the Manitou MLA-T 533-145 V+ with 143 hp and 406 ft-lbs of torque. Quick-attach compatibility swaps buckets, clamps, and forks in seconds to keep the jobsite moving. With flow-sharing hydraulics, the Manitou MLA-T 533-145 V+ gives operators smooth, combined-movement control.

Condition New
Model MLA-T 533-145 V+ - ST5

Specifications

ModelManitou MLA-T 533-145 V+ - ST5
Static Tipping Load (Straight)10,975 lb
Static Tipping Load (Full Turn)9,143 lb
Max. Payload (EN 474-3, 80%)7,275 lb
Max. Lifting Height (Below Forks)17'1"
Max. Outreach10'10"
Unladen Weight (With Forks)18,585 lb
Articulation Angle45°
EngineDeutz TCD_4_1_L4, Stage V, 143 hp / 105 kW
Max. Torque406 ft-lbs @ 1,600 rpm
TransmissionM-Varioshift
Max. Travel Speed25 mph

Features

Lift Performance

10,975 lb Static Tipping Load.
High tipping capacity in the straight position handles heavy daily loads with confidence.

Telescopic Boom with Cushioning.
The telescopic boom absorbs jolts while traveling, loaded or empty, for a smoother ride.

Chassis & Mobility

4-Wheel Drive and Steering.
Four-wheel drive and steering combine with 45-degree articulation for tight-site maneuverability.

Flow-Sharing Hydraulics.
Flow-sharing hydraulics enable combined movements and total operator control during handling tasks.

Attachments & Versatility

Quick-Attach Compatibility.
Buckets, clamps, and forks swap in just a few seconds to keep productivity high on the jobsite.

Engine & Transmission

Deutz Stage V Engine.
A 143 hp Deutz engine paired with M-Varioshift transmission delivers reliable power and smooth travel up to 25 mph.
