Manitou MLA 7-75 H-Z

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

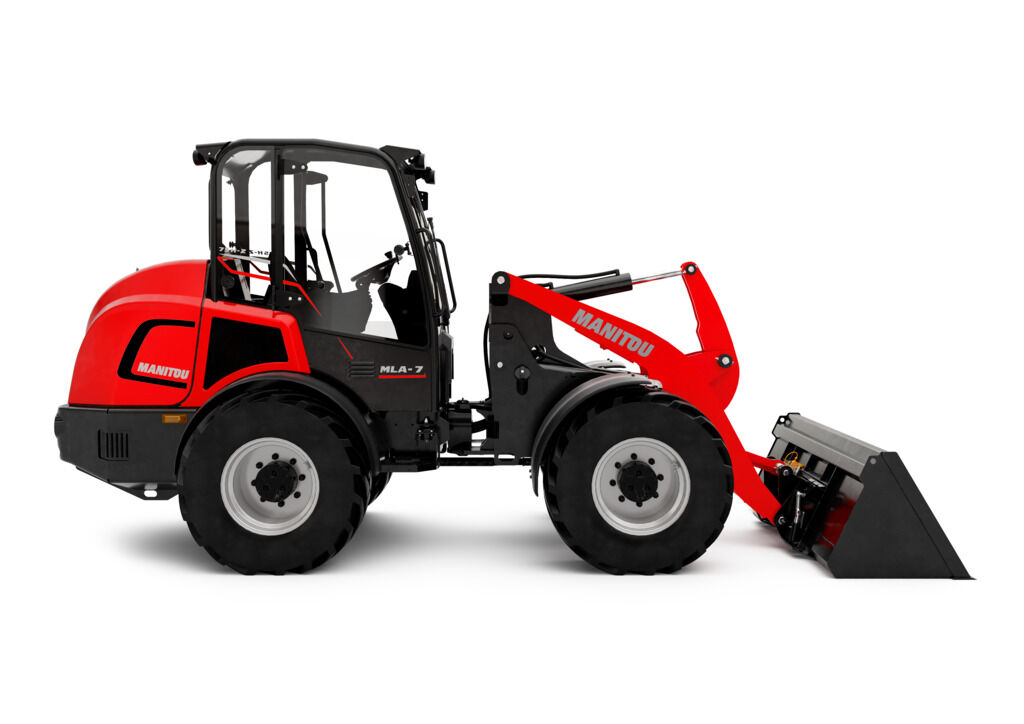

The Manitou MLA 7-75 H-Z is the largest wheel loader in Manitou’s standard lift arm range. A hydrostatic transmission stays smooth at low speed and powerful in demanding conditions. Gearshift and 100% diff lock controls sit right on the joystick, keeping the operator in full control.

The Z-bar loader linkage adds extra breakout force along with return-to-dig and parallel guidance. A Deutz Stage IIIB engine powers the Manitou MLA 7-75 H-Z with 74.3 hp for demanding jobs. Optional 30 kph travel and lift arm suspension keep the ride comfortable from one jobsite to the next. Whether in agriculture or construction, the Manitou MLA 7-75 H-Z performs reliably in tough conditions.

Compare Models

Two models to choose from. Click any model below to see full specs.

Manitou MLA 7-75 H-Z | 7,447 lb Tipping Load | 74.3 HP
ModelManitou MLA 7-75 H-Z
Static Tipping Load, Bucket (Straight)7,447 lb
Static Tipping Load, Forks (Straight)6,043 lb
Max. Lifting Height (Below Forks)10’9″
Breakout Force5,906 daN (13,277 lbf)
Unladen Weight (With Forks)10,919 lb
Wheelbase6’9″
EngineDeutz TD3.6 L4, Stage IIIB, 74.3 hp / 55.4 kW
Max. Travel Speed19 mph
Manitou MLA 6-65 H-Z | 6,409 lb Tipping Load | 65 HP
ModelManitou MLA 6-65 H-Z
Static Tipping Load, Bucket (Straight)6,409 lb
Static Tipping Load, Forks (Straight)4,980 lb
Max. Lifting Height (Below Forks)10’3″
Breakout Force5,743 daN
Unladen Weight (With Forks)9,500 lb
Wheelbase6’7″
EngineYanmar 4TNV98CT, Stage V, 65 hp / 48.5 kW
Max. Travel Speed19 mph
Condition New
Model MLA 7-75 H-Z

Features

Loader Performance

Z-Bar Loader Linkage.
The Z-bar linkage adds extra breakout force along with return-to-dig and parallel guidance.

7,447 lb Tipping Load.
Class-leading tipping capacity handles heavy bucket and fork work with confidence.

Transmission & Controls

Hydrostatic Transmission.
Smooth at low speed and powerful under load, the hydrostatic transmission handles demanding conditions with ease.

Joystick Gearshift and Diff Lock.
Gearshift and 100% diff lock controls sit right on the joystick, keeping the operator in full control.

Comfort & Options

Optional 30 KPH Travel and Suspension.
Optional 30 kph travel speed and lift arm suspension keep the ride comfortable between jobsites.

Engine & Efficiency

Deutz Stage IIIB Engine.
A 74.3 hp Deutz engine delivers dependable power for both agricultural and construction jobsites.
