MHT 1490

Description

The MHT 1490 is a telescopic handler with a lifting capacity of up to 9 tonnes, being particularly well-suited to the extractive and public works sectors. It comes equipped with a three-section boom as well as outriggers for excellent offset and height (6 tonnes at 14 m). The frame leveling system allows for optimal stability during tyre-based maneuvers.

Equally at ease on uneven ground, the MHT 1490 is an all-terrain machine with 4 driven and steered wheels. A hydrostatic transmission powers its precision and smooth approaches to loads and can be made even more versatile thanks to the wide number of compatible attachments available.

ConditionNew
Lifting height45'11"
Lifting capacity19800 lb
Max reach31'4"
Drawbar pull24504 lbf
Lifting time (unladen)14.9 s
Lowering time (unladen)12.8 s
Boom extension time (unladen)18.9 s
Boom retraction time (unladen)10.8 s
Crowd6.6 s
Dump5.3 s
Length (up to the back of the fork)21'12"
Total length (fork included)25'11"
Wheelbase length11'0"
Width8'2"
Height9'10"
Weight (unladen)45856 lb
Turning radius13'2"
Ground clearance1'5"

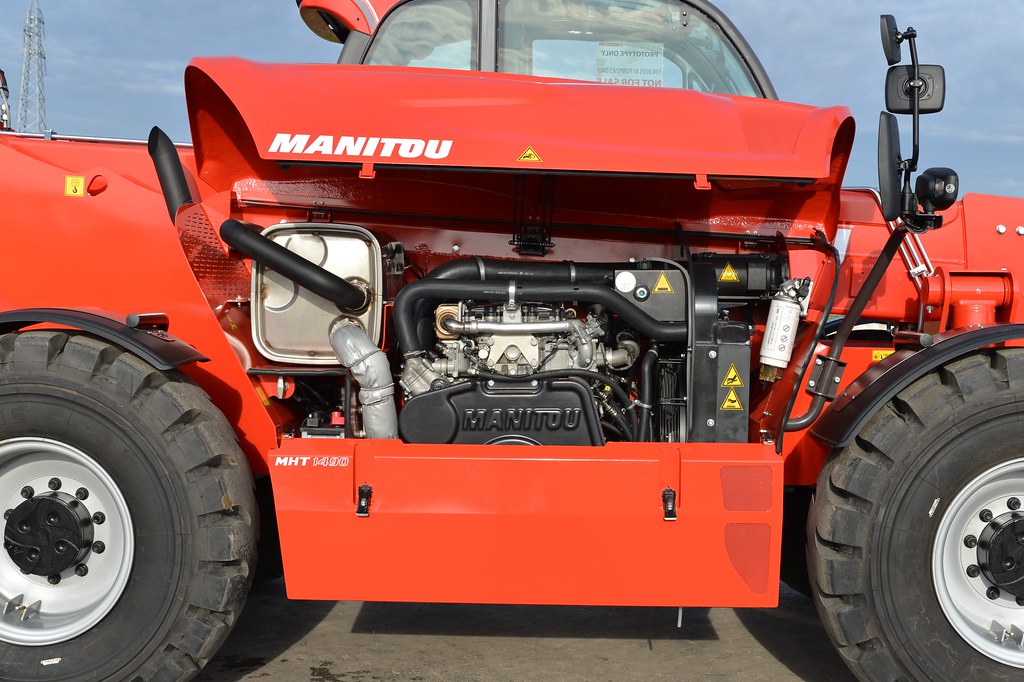

EnergyDiesel
Engine brandMercedes
Engine typeStage IV / Tier 4 Final
Engine manufacturer typeOM934LA
Power129 KW
Max. Torque @ Rotation750 Nm
Number of cylinders4
Total capacity311 in3
InjectionDirect
CoolingWater
Voltage24 V
Amperage100 Ah
Transmission typeHydrostatic
Pressure300 bars
Hydraulic oil tank volume72.6 gal
Number of wheels (front/rear)2/2
Number of drive wheels (front/rear)2/2
Number of steering wheels (front/rear)2/2
Number of braking wheels (front/rear)2/2
Parking brakeAutomatic negative handbrake
Driving position noise levels82 dB
Environmental noise levels106 dB
Vibrations affecting hands/arms<2.5 m/s
