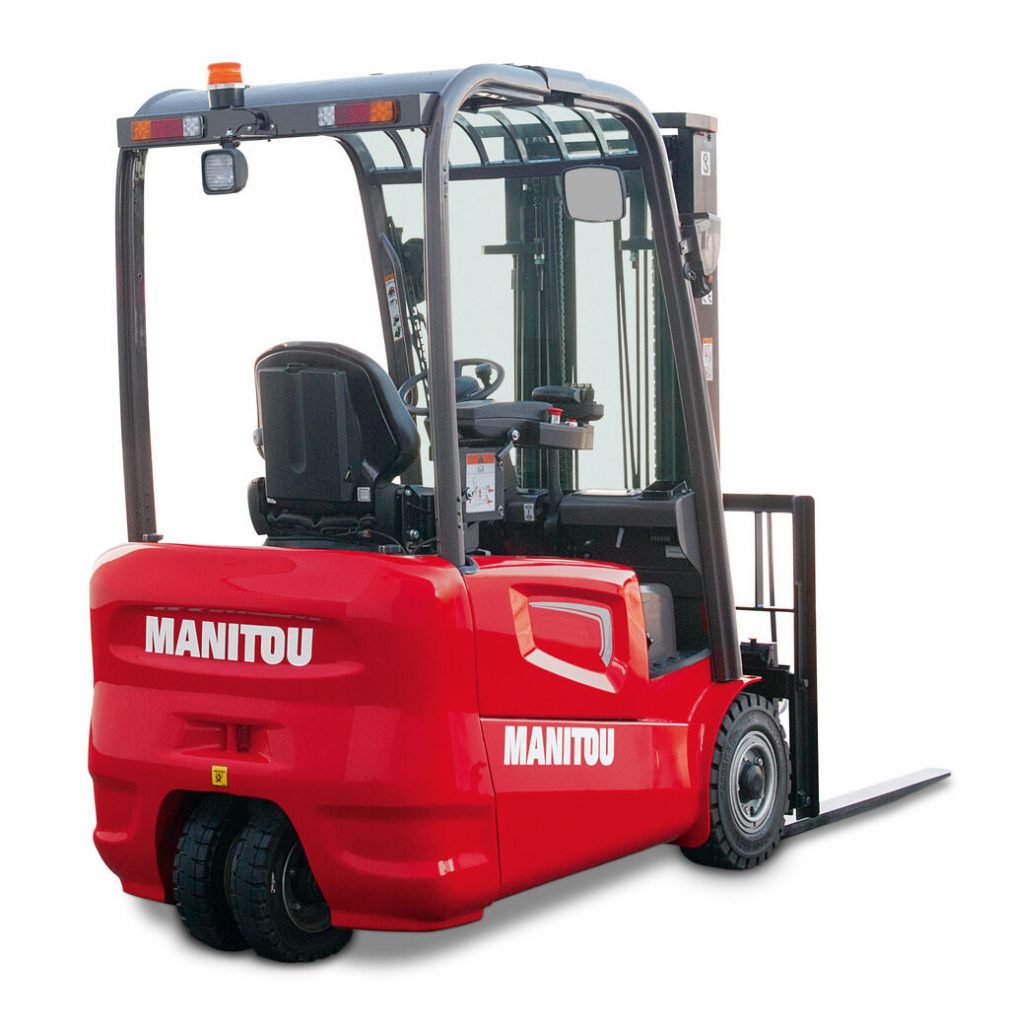

ME 316

Description

Discover the performance of the ME 316 forklift truck. Electric, this machine allows you to carry out all your handling operations. Truck loading / unloading, storage, feeding of production lines, warehousing … Facilitate the transport of your goods and materials! The ME 316 can lift loads up to 1600 kg. Take advantage of its great versatility in daily use, its compact design and its optimal residual capacities at high heights!
ConditionNew
Lifting capacity3520 lb
Max reach21'4"
Drawbar pull
Moving speed9.94 mph
Mast inclination (front/rear)5.5°
Length (up to the back of the fork)6'3"
Total length (fork included)9'9"
Wheelbase length4'5"
Width3'7"
Fork carriage width3'3"
Aisle width (with a 1000 x 1200 palette)10.62
Aisle width (with a 800 x 1200 palette)11.02
Height6'6"
Weight (unladen)6864 lb
Front axle weight (laden)9020 lb
Front axle weight (unladen)3168 lb
Rear axle weight (laden)1364 lb
Rear axle weight (unladen)3696 lb
Turning radius5'1"
Ground clearance0'4"
EnergyElectric
Voltage48 V
Amperage575 Ah
Pressure180 bars
Standard tyresSuper-elastic
Number of wheels (front/rear)2/1
Number of drive wheels (front/rear)2/0
Tyre dimensions (rear)15x4,5-8
Standard mast typeDuplex
Free lift (standard mast, lowered)0'6"
Standard mast height (when raised)11'8"
Driving position noise levels70 dB
