Tractor PTO HP60-120
Tractor HitchCAT 2 and 3 / clevis
Cutting Height Range (in)

2 to 12

Cutting Capacity Diameter (in)


Cutting Width (in)120
Blade Tip Speed (fpm)16,700
Weight (lbs)


Deck Thickness (in).135 (10 ga)
Side Frame Depth (in)10
Gearbox Warranty

6 years

Overall Width/Length (in)124 x 106
Gearbox HP120 center, 90 spindle *Gearbox horsepower ratings listed are based on field testing.
Blade Dimensions (in).5 x 4
Quick-hitch CompatibleYes
Wheel SelectionLaminated, severe duty new ag, foam filled new ag, 15 in rims
Optional Dual Wheels – Pull-type



  • Smooth, sloped-top deck sheds water and debris to prevent rust and corrosion
  • Cuts light brush up to 2 inches in diameter
  • Six-year gearbox limited warranty

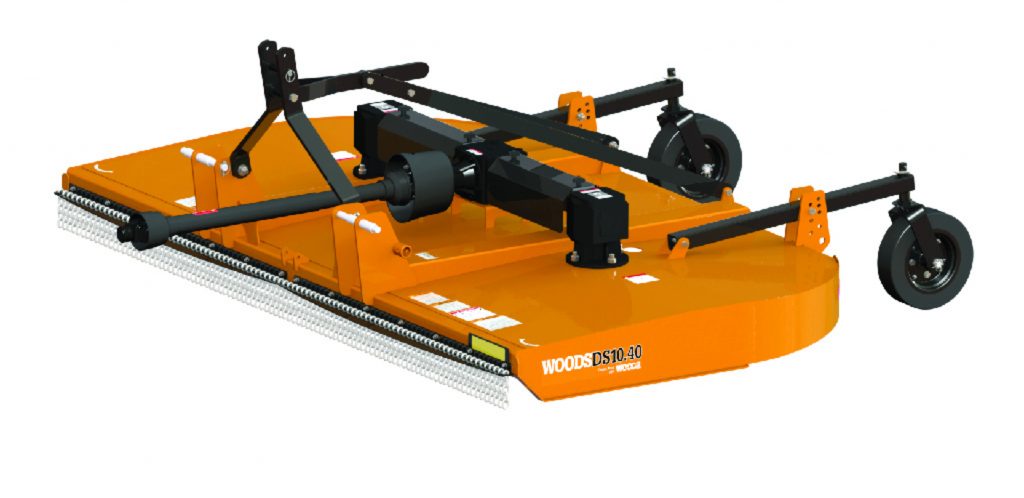

  • 120-inch mounted dual-spindle rotary cutter
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
