Great Plains Max-Chisel™

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

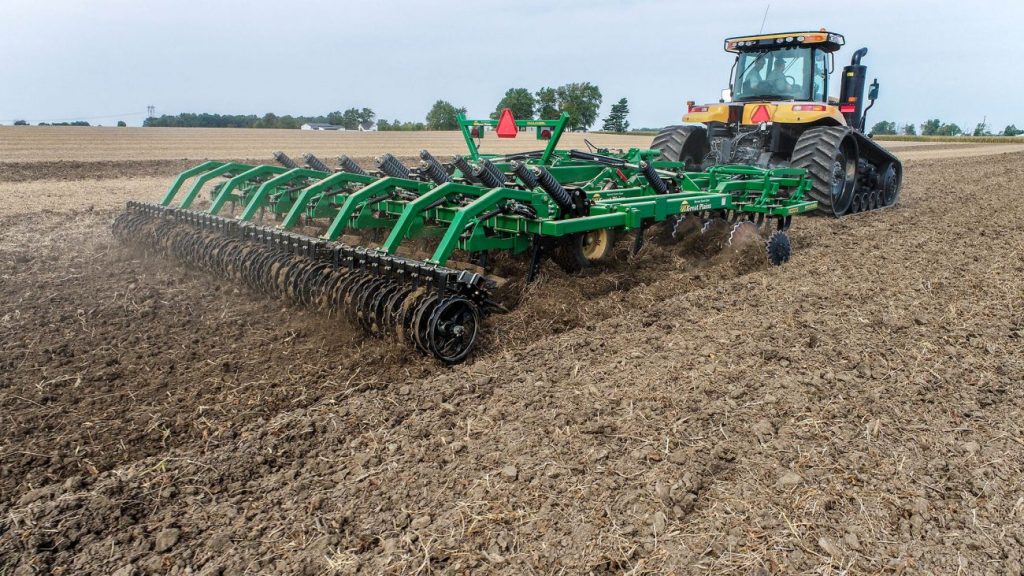

The Great Plains Max-Chisel levels fields and mixes crop trash into the top 4 to 5 inches of soil. Also, two facing rows of 24-inch blades break up root balls in a single, tough pass. Because the Max-Chisel comes in six sizes, from 11’6″ to 24′, every farm finds the right fit. Afterward, follow the Max-Chisel with a tool like Turbo-Max to finish the seedbed in spring.

Compare Models

Six models to choose from. Click any model below to see full specs.

MC5109 | 11’6″ Width | 250+ HP
Model MC5109
Condition New
Type Rigid Primary Tillage Chisel Plow
Shank Spacing 15″
Number of Shanks 9
Engine HP Requirement 250+
Tillage Width 11’6″
Transport Width 14’10”
Transport Height N/A
Weight (Approx., No Attachments) 10,170 Lbs.
MC5111 | 14′ Width | 310+ HP
Model MC5111
Condition New
Type Rigid Primary Tillage Chisel Plow
Shank Spacing 15″
Number of Shanks 11
Engine HP Requirement 310+
Tillage Width 14′
Transport Width 17’4″
Transport Height N/A
Weight (Approx., No Attachments) 12,430 Lbs.
MC5313 | 16’6″ Width | 360+ HP
Model MC5313
Condition New
Type Folding Primary Tillage Chisel Plow
Shank Spacing 15″
Number of Shanks 13
Engine HP Requirement 360+
Tillage Width 16’6″
Transport Width 14’6″
Transport Height 10’6″
Weight (Approx., No Attachments) 14,580 Lbs.
MC5315 | 19′ Width | 420+ HP
Model MC5315
Condition New
Type Folding Primary Tillage Chisel Plow
Shank Spacing 15″
Number of Shanks 15
Engine HP Requirement 420+
Tillage Width 19′
Transport Width 14’6″
Transport Height 11’3″
Weight (Approx., No Attachments) 16,820 Lbs.
MC5317 | 21’6″ Width | 470+ HP
Model MC5317
Condition New
Type Folding Primary Tillage Chisel Plow
Shank Spacing 15″
Number of Shanks 17
Engine HP Requirement 470+
Tillage Width 21’6″
Transport Width 15’8″
Transport Height 12’6″
Weight (Approx., No Attachments) 21,700 Lbs.
MC5319 | 24′ Width | 530+ HP
Model MC5319
Condition New
Type Folding Primary Tillage Chisel Plow
Shank Spacing 15″
Number of Shanks 19
Engine HP Requirement 530+
Tillage Width 24′
Transport Width 15’8″
Transport Height 13’9″
Weight (Approx., No Attachments) 22,800 Lbs.
Condition New

Features

Shanks & Blades

Choose Parabolic or Chisel Shanks
Choose standard chisel shanks or heavy-duty parabolic toggle-trip shanks for your ground.

Exclusive Concave TurboWave Blades
Two opposing rows of 24-inch blades remove root balls and mix in residue.

Individual Disc Mounts
Individual C-shank mounts space 24-inch blades 15 inches apart for better trash flow.

Maintenance-Free Bearings
Tapered bearings and six-lip seals keep grease in and dirt out for good.

Depth Control & Durability

Single-Point Depth Stop
Adjust tillage depth across the entire machine from one convenient location.

Walking Tandem Axles
Walking tandem axles keep mainframe height consistent for uniform tillage depth.

Implement Command (Optional)
The optional Implement Command system adjusts and monitors the implement from an ISOBUS monitor.

Finishing & Hitch Options

Optional Angled Rear Chopper Wheels
Angled chopper wheels pull soil back into shank voids for a level finish.

Optional Chopper Wheel with ML Roller
Add ML roller chopper wheels for a smooth, uniform finish behind the shanks.

Rear Hitch Options
Choose long, short, ball, or flex-tongue hitches to tow light-duty attachments.
