M7050 Disc Mower

Description

Hitch up and mow.

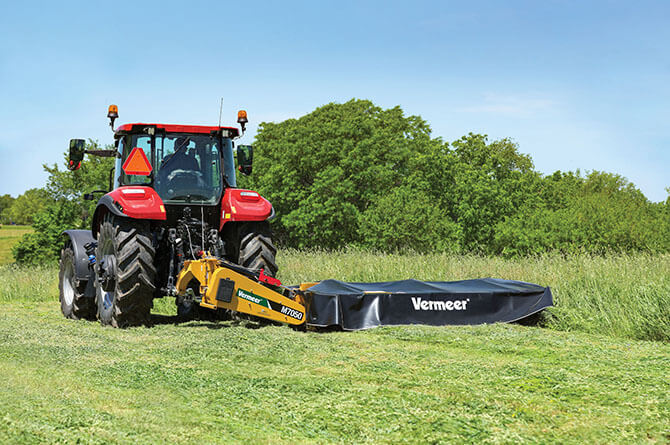

Some say disc mowers are all the same, but it’s the little things that make the difference. Built in Pella, Iowa, the new M7050 disc mower from Vermeer has a cutting width of 9.2 ft (2.8 m) and helps reduce the hassles associated with hooking up, running and maintaining traditional 3-point disc mowers.

It’s differences like these that make the Vermeer 50-series disc mowers stand out from the rest. This disc mower is on point.

ConditionNew
ModelM7050 Disc Mower

DIMENSIONS AND WEIGHTS

  • Transport width - standard: 7.8 ft
  • Transport Length: 6.5 ft
  • Cutting Width: 9.2 ft
  • Working Width: 9.2 ft
  • Working Length: 6.5 ft
  • Total Weight: 1291 lbs
  • Torque Protection: Driveline: V-belt

TRACTOR REQUIREMENTS

  • Tongue/hitch: 3-point quick hitch, category II or III N
  • Drive PTO: 540 rpm
  • PTO horsepower recommended: 70 hp
  • Hydraulic Type: 1 auxiliary remote, single-acting
  • Hydraulic Pressure: 2000 psi
  • Hydraulic flow rate: 6 gpm

CUTTER BAR

  • Cutter bar type: Standard
  • Cut height: 1.3 in - 3.9 in (3.2 cm - 9.9 cm)
  • Number of Discs: 7
  • Disc Diameter: 19.7 in
  • Disc Speed: 2850 rpm
  • Number of Blades: 14
  • Angle Adjustment: Top-link on 3-point
  • Quick Clip® blade retention system: Standard
  • Curtain material: 1400 g/m2 polyester woven material with flexible PVC covering
  • 3-year limited cutter bar warranty: Standard

FEATURES

  • Optional swath formation: Optional crop divider; Optional crop divider and swath wheel combination
  • Skid Shoes: Optional topping skid shoes; Optional wear skids

Features

Quick Hitch hookup

The Quick Hitch hookup is a one-person hookup: back up your tractor, hook up the disc mower with a quick hitch — and off to the field you go.

Tapered, low-profile cutter bar

A tapered, low-profile cutter bar delivers close, clean cutting— reduces streaking and helps improve performance across a wide variety of crops and conditions. Each self-contained cutter unit comes prepackaged with its own set of gears, bearings and lubricant to help extend operating life. Plus, it’s backed by the Vermeer 3-year cutter bar warranty.

Built locally

Vermeer mowers are built at Vermeer Corporation global headquarters in Pella, Iowa, where a passion for quality and reliability is present among team members ranging from engineering to production to service.

Quick-Clip blade retention system

Maintenance is made convenient with the Quick-Clip® blade retention system, which lets you change and turn blades in seconds — with no specialty tools required.
