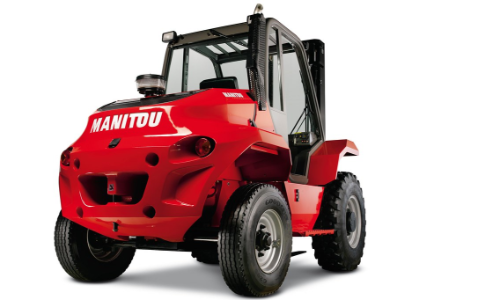

M 30-2 H

Description

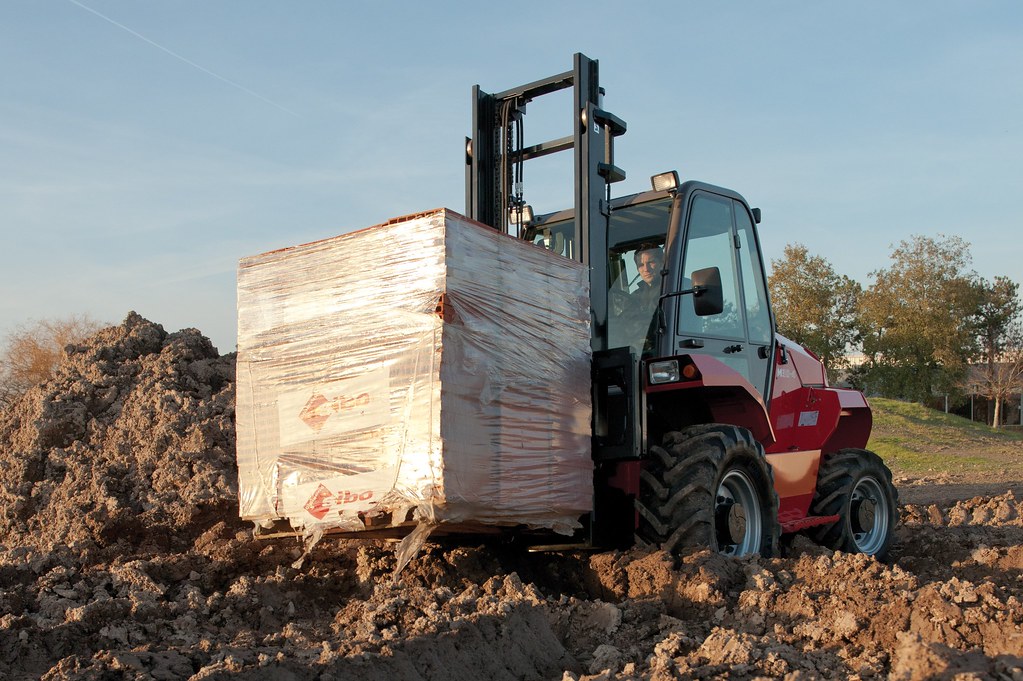

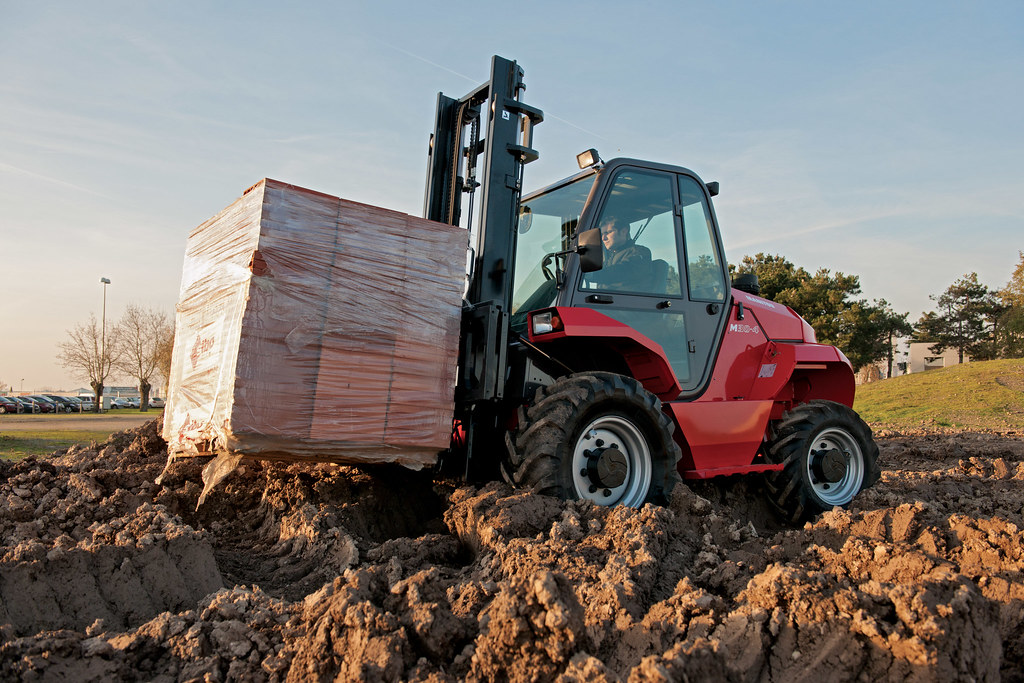

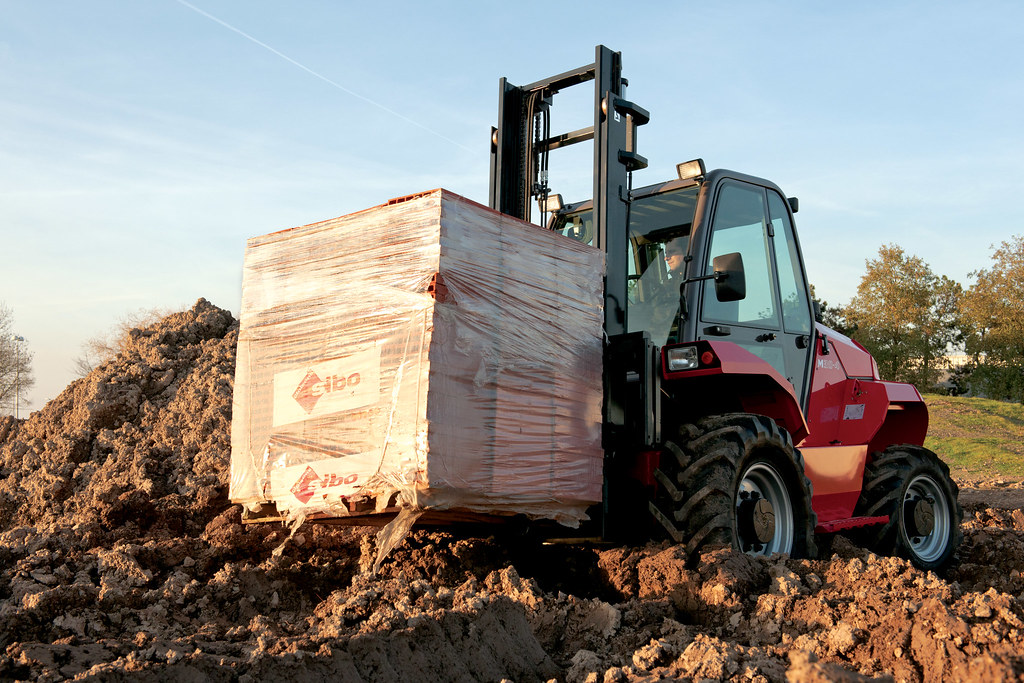

The M 30-2 H offers a high level of performance when dealing with difficult terrain. With its 37 cm ground clearance, it can safely handle even the most uneven ground whilst the hydrostatic transmission gives you flexibility and precision during extreme handling operations, whilst maintenance for the 75 hp engine is made easy with a fully opening bonnet.The masts were designed using Manitou expertise for robustness over time: handling operations couldn’t be safer, regardless of terrain conditions. And the spacious driver’s cab is accessible from two sides, with a full panoramic view.

ConditionNew
Lifting height12'2"
Lifting capacity6600 lb
Drawbar pull10498 lbf
Moving speed6.2 mph
Mast inclination (front/rear)
Length (up to the back of the fork)11'7"
Total length (fork included)15'6"
Wheelbase length6'8"
Width6'5"
Fork carriage width4'1"
Aisle width (with a 1000 x 1200 palette)17.7
Aisle width (with a 800 x 1200 palette)17.7
Height9'0"
Weight (unladen)13117 lb
Front axle weight (laden)16567 lb
Front axle weight (unladen)5213 lb
Rear axle weight (laden)3163 lb
Rear axle weight (unladen)7903 lb
Turning radius10'8"
Ground clearance1'6"
EnergyDiesel
Engine brandPerkins
Engine typeStage 3B
Engine manufacturer type854F-E34T 54009.1
Power55 KW
Max. Torque @ Rotation318 Nm
Number of cylinders4
Total capacity207.4 in3
InjectionDirect
CoolingWater
Transmission typeHydrostatic
Pressure245 bars
Hydraulic oil tank volume21 gal
Number of wheels (front/rear)2/2
Number of drive wheels (front/rear)2/0
Number of steering wheels (front/rear)0/2
Standard mast typeDuplex
Free lift (standard mast, lowered)0'5"
Standard mast height (when raised)15'10"
Driving position noise levels76 dB
Environmental noise levels104 dB
Vibrations affecting hands/arms2.5 m/s

Features

The M 30-2 H offers a high level of performance when dealing with difficult terrain. With its 37 cm ground clearance, it can safely handle even the most uneven ground whilst the hydrostatic transmission gives you flexibility and precision during extreme handling operations, whilst maintenance for the 75 hp engine is made easy with a fully opening bonnet.

The masts were designed using Manitou expertise for robustness over time: handling operations couldn’t be safer, regardless of terrain conditions. And the spacious driver’s cab is accessible from two sides, with a full panoramic view.
