Massey Ferguson LB2200 Series Large Square Balers

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

The most reliable, most productive baler ever. The LB2200 Series from Hesston by Massey Ferguson

Since Hesston designed and introduced the first large square baler in 1978, we’ve helped hay professionals produce the highest quality, highest nutrient, highest value hay possible. The Hesston LB2200 Series continues that tradition as our most reliable, most productive baler ever. With four models producing bales from 3×3 up to 4×4, advanced pre-compression for dense and consistent bales, automatic knotter lubrication, and the proven Hesston-designed double knotter that’s been in use since 1978, the LB2200 Series is built for hay professionals who demand high capacity, high quality, and long-lasting equipment. The optional ProCut rotary cutter forces material through stationary knives for a more precise cut, higher capacity, and simplified serviceability.



Download Brochure

Condition New
Model LB2200

Compare Models

Four models to choose from. Click any model below to see full specs.

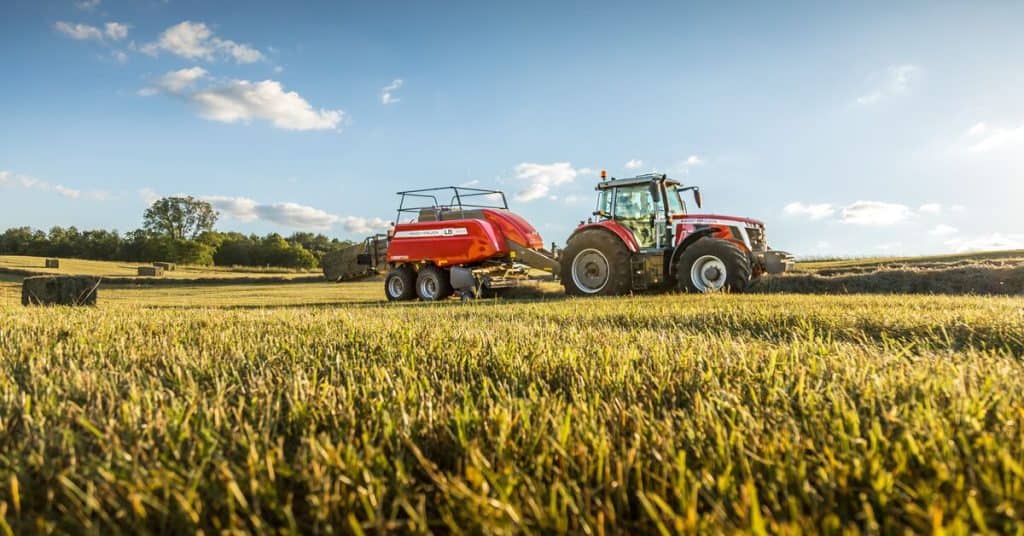

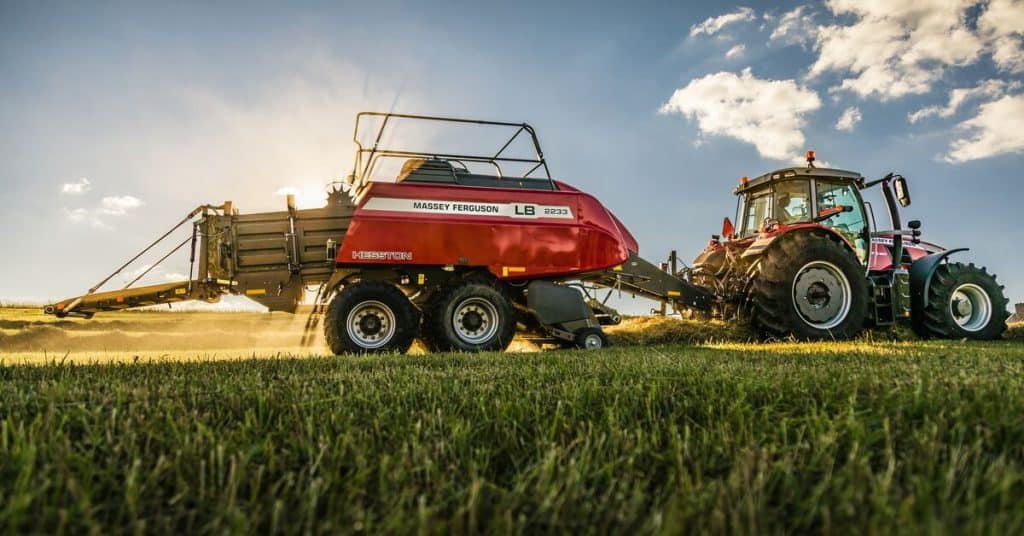

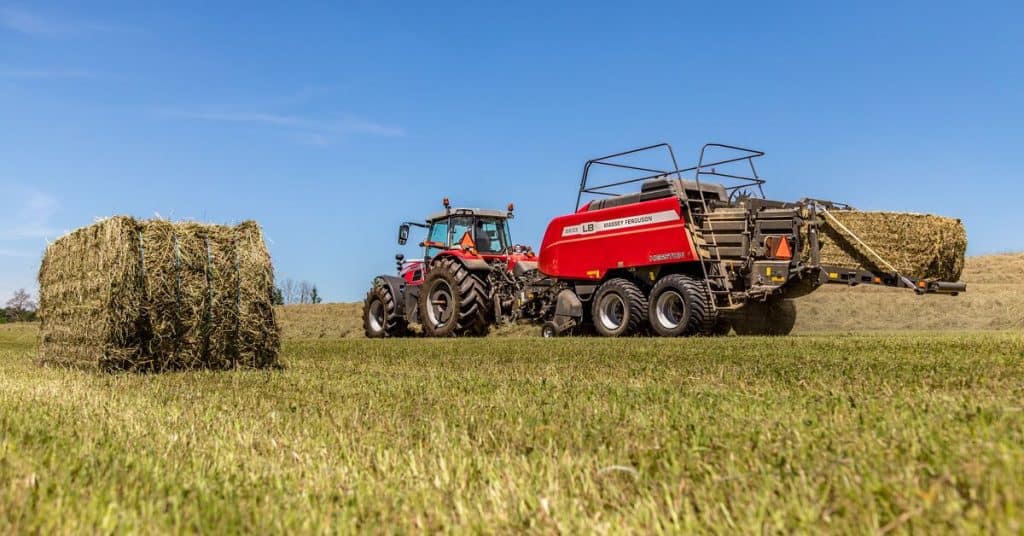

LB2233 | 3x3 Bale Size
ModelLB2233
Bale Height31.5 in (875 mm)
Bale Width34.4 in (880 mm)
Plunger Speed47 strokes/min
Pick-up Working Width89 in (2,260 mm)
Suggested PTO HP (no cutter)150
Suggested HP (with cutter)180

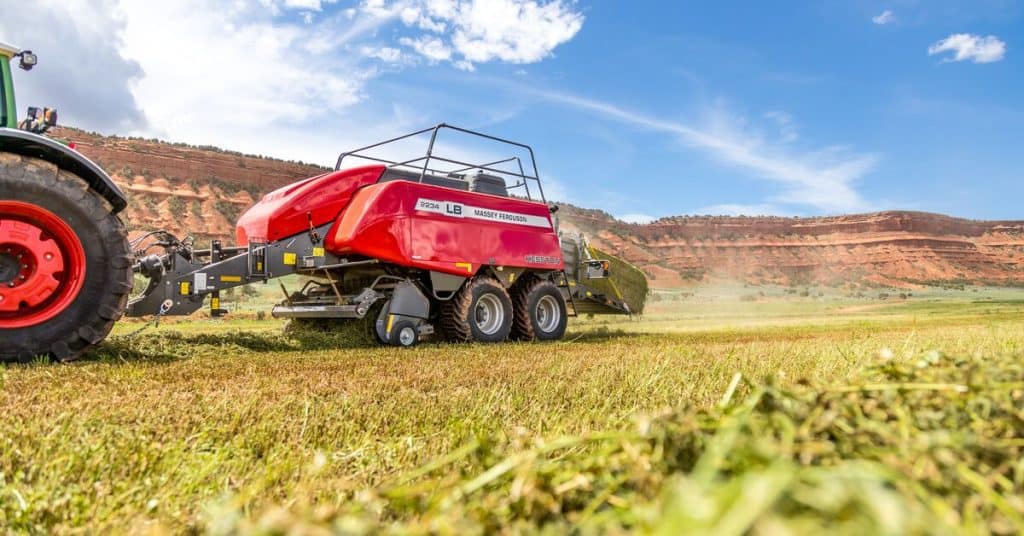

LB2234 | 3x4 Bale Size
ModelLB2234
Bale Height34.4 in (875 mm)
Bale Width47.2 in (1,200 mm)
Plunger Speed47 strokes/min
Pick-up Working Width89 in (2,260 mm)
Suggested PTO HP (no cutter)170
Suggested HP (with cutter)200

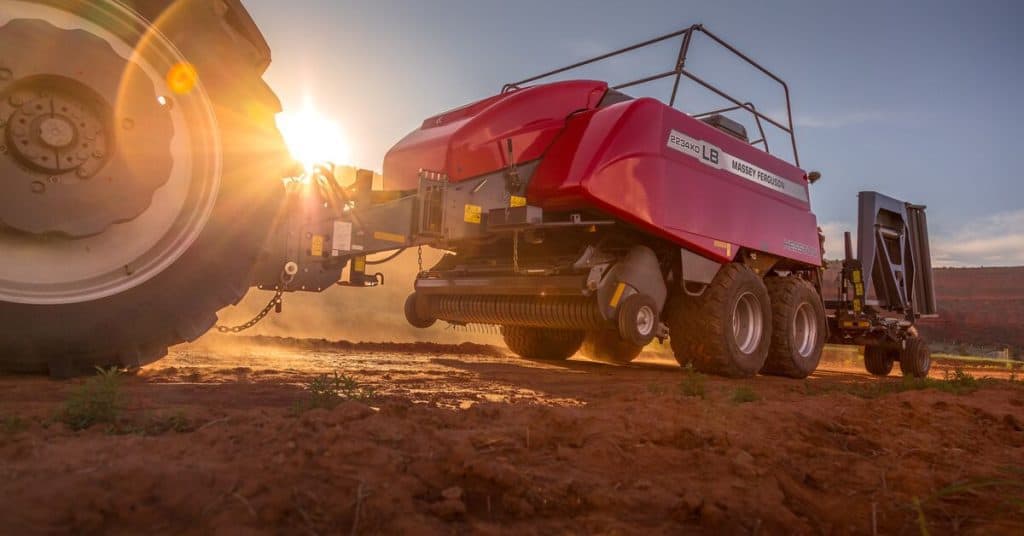

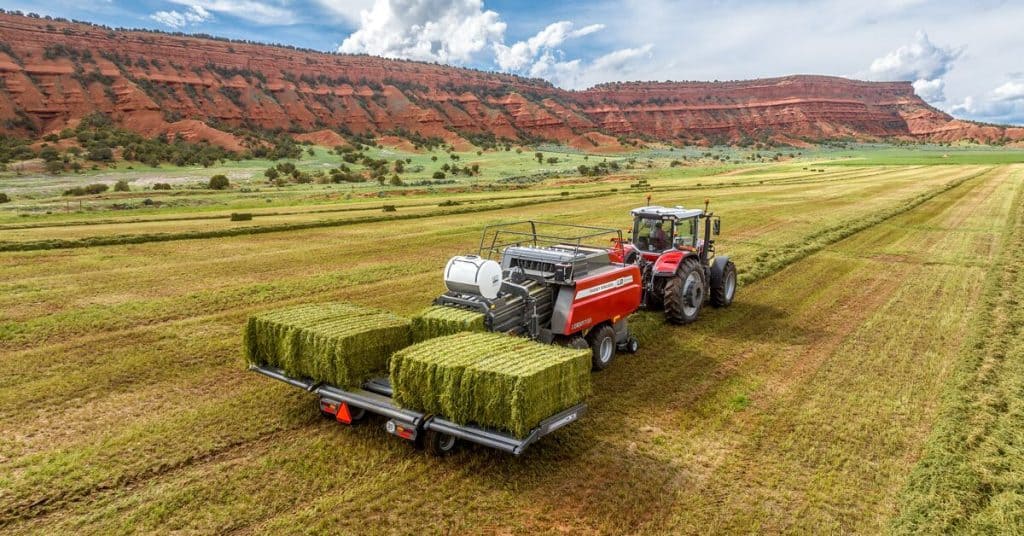

LB2234XD | 3x4 Bale Size | Heavy Duty
ModelLB2234XD
Bale Height34.4 in (875 mm)
Bale Width47.2 in (1,200 mm)
Plunger Speed47 strokes/min
Pick-up Working Width89 in (2,260 mm)
Suggested PTO HP (no cutter)180
Suggested HP (with cutter)210

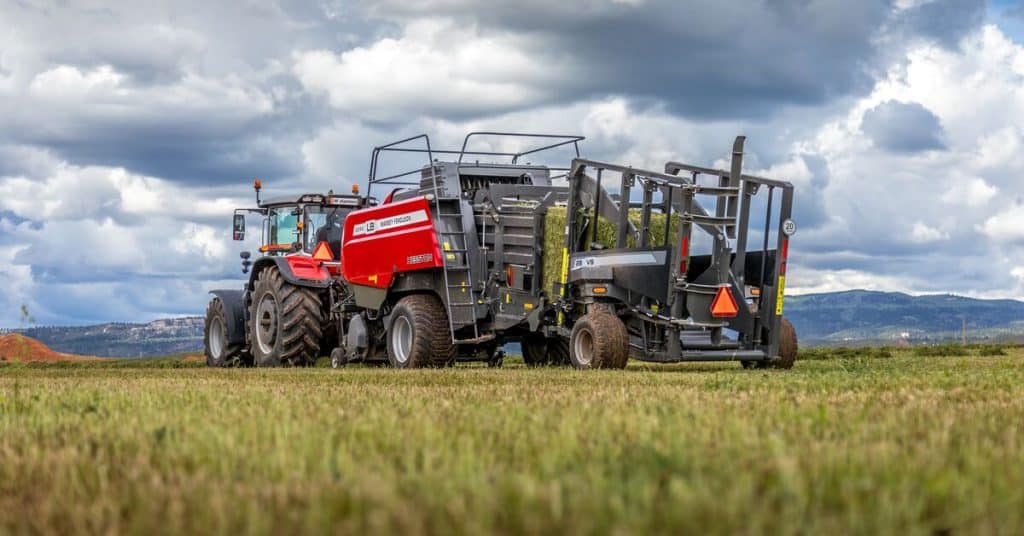

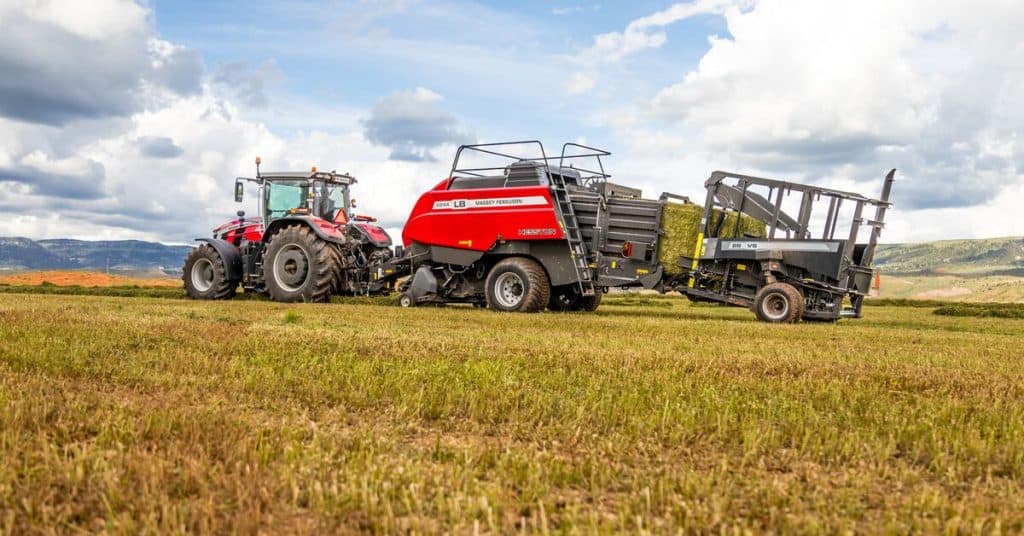

LB2244 | 4x4 Bale Size | Top of the Line
ModelLB2244
Bale Height50.2 in (1,275 mm)
Bale Width47.2 in (1,200 mm)
Plunger Speed33 strokes/min
Pick-up Working Width89 in (2,260 mm)
Suggested PTO HP (no cutter)180
Cutter OptionNot available

*All models feature the proven Hesston-designed double knotter system, on-board hydraulics, automatic knotter lubrication, and a 5-tine bar pick-up reel. The optional ProCut rotary cutter is available on the LB2233, LB2234, and LB2234XD.

Features

Innovation. Capability. Simplicity. Longevity.
Every aspect of the Hesston LB2200 Series was designed to ensure productivity and reliability. The entire design starts and ends with maximizing your ROI as the goal. The heart of the baler is the Hesston-designed double knotter that has been in use since 1978 — durability proven over decades. The LB2200 Series uses chain drives with the highest quality roller chain on the market for the majority of power transfer, giving you less downtime and easy repairs when needed. With advanced technologies like the ProCut rotary cutter option, automatic knotter lubrication, pre-compression for denser bales, and on-board hydraulics for simple tractor hookup, this baler is engineered for hay professionals who demand the best.

Performance

Pick Up and Go
Five-tine bar pick-up reel and a lighter weight wrapper made from highly durable polypropylene material. The new design allows faster ground speed, increased performance, and smoother operation.

Denser Bales Through Pre-Compression
The LB2200 Series pre-forms each flake in a pre-compression chamber before moving it to the plunger to create dense, consistent bales. Tighter, more uniform bales every time.

Automatic Knotter Lubrication
The knotters are constantly lubricated by an oil-based autolube system, reducing maintenance time. The cycle is fully automatic and controlled by the Datatronic 5 terminal.

High-Capacity ProCut Option
The Hesston-built rotor cutter upgrade forces crop material through stationary knives for higher capacity and more efficient cutter baling. Simplified serviceability and a more precise cut.

Proven Roller Chain Drives
The LB2200 Series uses chain drives with the highest quality roller chain on the market for the majority of power transfer. Less downtime, easier repairs.

Productivity

Highly Organized Crop Flow
The LB2200 Series maximizes capacity by pulling crop from the pick-up with revolving packer forks and positively feeding it into the pre-compression chamber. Organized flow means higher throughput.

Double-Knotted for Better Bales
The Hesston-designed double knotter system has been in use since 1978. Maintains the perfect bale after it leaves the chamber, through transport, and all the way to its destination.

No Surprises
With the separate pre-compression chamber and auto bale density control, there are no surprises or windrow size worries. Just tight, dense bales every time.

Simple Hookup
All LB2200 Series models feature on-board hydraulics for easier hookup while eliminating the hydraulic system variables that can affect baler performance. Consistent results, less setup time.

Maximizing Your ROI
Every aspect of the LB2200 Series was designed to ensure productivity and reliability. The entire design starts and ends with maximizing your return on investment.

Legacy

The Original Large Square Baler
Hesston designed and introduced the first large square baler in 1978. We’ve helped hay professionals produce the highest quality, highest nutrient, highest value hay possible ever since.

Proven Double Knotter
The heart of the baler is the Hesston-designed double knotter that has been in use since 1978. Its durability is proven over decades of real-world baling.

Advanced Yet Time-Tested
The LB2200 Series is the most advanced large square baler from Hesston to date, yet its roots still run deep. Modern technology paired with decades of refinement.

Hesston by Massey Ferguson
Two trusted names in hay equipment, working together to bring you the most reliable, most productive baler ever built.
